Firebox dimensions. Starting a new build
Goto page 1, 2, 3, 4  Next

Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 04 2015    Post subject: Firebox dimensions. Starting a new build Reply with quote

I'm helping my son build a small reverse flow offset with a smoker/warming cabinet over the firebox. We checked the pit calculator ratios and the tank we are planning to use for our firebox is about 40% bigger than recommended. Should we cut it down or plan to have smaller fires? Or should we add enough firebrick inside to get closer to the recommended size? Any info will be appreciated, this is our first offset build

Last edited by wango on Sep 19 2015; edited 1 time in total
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26020
Location: Southeast Texas.

PostPosted: Aug 04 2015    Post subject: Reply with quote

Welcome to the ring v, looking forward to seeing some pics of your cooks and following your cooker project. Smile
40% over sized is pretty large in my opinion but doable. It does change the way the cooker will draft but once you learn it she should cook. What are the dimensions of the cooking chamber and proposed firebox?
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 05 2015    Post subject: Reply with quote

The cooking chamber is an old air compressor tank. 15" in diameter, 39" long overall, it has rounded ends. It doesn't have a tag stating how many gallons it holds, we estimated 35-40. Our firebox is going to be made from an old hydraulic tank that is rectangular 15x20x20. The warming cabinet/smoker on top of the firebox will 15x18 by 24" tall
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 05 2015    Post subject: Reply with quote

I just did the math on the cooking chamber, we may have estimated high, more like 30 gallons
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26020
Location: Southeast Texas.

PostPosted: Aug 05 2015    Post subject: Reply with quote

I would look for a larger diameter cooking chamber. The 15" diameter is too small in my opinion I would look for a tank with at least a 20" diameter.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
SoEzzy
BBQ Super All Star


Joined: 13 Oct 2006
Posts: 13183
Location: SLC, UT

PostPosted: Aug 05 2015    Post subject: Reply with quote

Running the numbers, without the warming box, your firebox is 261% of the size needed for your cooking chamber, with the warming box, you are at 141% of the needed size, if you run your exhaust through the warming chamber.

But at the end of the day, the cooker will cook how it cooks, you can raise the fire grate, you can line the fire box but it's not really needed, as once you get it put together, and you learn how it likes to run, you'll build the fire small and hot, and keep it fed with enough wood or charcoal, and enough air to burn it hot and fast, and that's what will matter most.

The pit with the bigger firebox will take longer than a smaller sized pit to get fully up to temperature, when you are starting off on a cook, due to the extra mass of the firebox, sucking out more of the heat from the fire, than a smaller firebox will take, but that will likely be the only difference you will spot between the two options!

Good luck with your build.
_________________
Here's a change Robert.

I still work here!
Back to top
View user's profile Send private message Send e-mail
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 05 2015    Post subject: Reply with quote

Thanks for the replies, looks like I should look around for a slightly larger cook chamber or cut the firebox down some. He's building this on a budget, so we're trying to keep costs as low as possible. So far he has $0 invested because he's using scraps I had stashed away in my barn.
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26020
Location: Southeast Texas.

PostPosted: Aug 05 2015    Post subject: Reply with quote

I will be the first one to say re-purposing material is the way to go but in my opinion a 15" X 39" tank once built will be difficult to maintain temps and be very limited on cooking area.
I would rather see y'all build one that will perform and use the smaller one as a project cooker while y'all are cooking on the better one. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
Wreckless
BBQ Super Pro


Joined: 15 May 2009
Posts: 2292
Location: New Braunfels, TX

PostPosted: Aug 06 2015    Post subject: Reply with quote

+1 on kams last post. Not much finer reward than a fine cooker build on a low budget. Beware that the budget doesn't cripple you though. The cost of the pipe to move up to a 20" or 24" aside, I think you will find the increase in other materials to be small especially since you had already planned / budgeted for the larger FB. Your labor and time will for sure not increase enough to even notice. It takes the same amount of time and labor to cut a rail for a 24" as it will for a 15". The end result will be where you notice the most change, happily so I would think. Good luck! Very Happy
_________________
Backyarder
Smoker Grill
Trailer Rig
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 10 2015    Post subject: Reply with quote

Thanks for all the replies. We've taken your advice and found a 20" by 60" air compressor tank. It's really old and very thick, not sure how thick yet. Looking at the welds it's obviously heavier than what we had. Paid 50 on Craig's list for it. Our firebox is now 97% without calculating for the warming/smoking chamber. What calculations do you use to factor in the warming box? We want to add the warming box so now we're trying to decide if we should modify the firebox or build/find something else for a firebox.

Last edited by wango on Aug 10 2015; edited 4 times in total
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 10 2015    Post subject: Reply with quote

Our plan is to be able to use the warming box as a smoker or as a warming box. I.E. bbq in the cooking chamber and make jerky in the warming box at the same time. Is this realistic?
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26020
Location: Southeast Texas.

PostPosted: Aug 10 2015    Post subject: Reply with quote

Congrats on your cooking chamber find. Very Happy
Do not figure the warming chamber as part of the equation. How do you plan on introducing your heat/smoke into the warming chamber?
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 10 2015    Post subject: Reply with quote

We're planning on having an adjustable baffle between the chimney and the warming chamber, the warming chamber will have a separate chimney on top. Another member on here, Neths Redneck BBQ, posted pics of his new cooker from Shirley Fabrication. I tried to copy a link to his pic but it didn't work
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26020
Location: Southeast Texas.

PostPosted: Aug 10 2015    Post subject: Reply with quote

So you will have a sliding damper between the cooking chamber and the warmer like the one on my RF build here.
http://www.thesmokering.com/forum/viewtopic.php?t=32283&postdays=0&postorder=asc&start=100
If so only figure your cooking chamber and firebox. The warmer when used like this will act more like an exhaust. Just make sure your opening is large enough to allow the heat/smoke to flow smoothly.
I hope this helps. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Aug 11 2015    Post subject: Reply with quote

k.a.m. wrote:
So you will have a sliding damper between the cooking chamber and the warmer like the one on my RF build here.
http://www.thesmokering.com/forum/viewtopic.php?t=32283&postdays=0&postorder=asc&start=100
If so only figure your cooking chamber and firebox. The warmer when used like this will act more like an exhaust. Just make sure your opening is large enough to allow the heat/smoke to flow smoothly.
I hope this helps. Very Happy


First off kam, all I can say is WOW. I read your whole build thread, very impressive. You sir indeed have a gift. Thanks for sharing all that info.

Yes the type of sliding damper I want to build is exactly like yours. What kind of temps do you get with it wide open? Just curious, I see you're around 150 with it closed which is great. Your build also has me thinking I should go thicker on my firebox too.

Thanks again
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26020
Location: Southeast Texas.

PostPosted: Aug 11 2015    Post subject: Reply with quote

Thank You wango. Very Happy
The warmer will run between 200° and 240° when the damper is open and cooker is warmed up and humming at around 250°.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Sep 19 2015    Post subject: Trying to figure out the pic thing Reply with quote

Here is a pic of the compressor my son bought off craigslist. Its an old tank, the tag reads 1950, its 1/4" thick. 20" diameter, 52" long between the ends, .64" long overall It was a working compressor when we brought it home.



Last edited by wango on Sep 29 2015; edited 1 time in total
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Sep 19 2015    Post subject: The legs Reply with quote

I had this old rolling table/bench given to me many years ago. It had a plywood top, I used it for a couple projects and its been sitting in the corner of my shop cluttered up with crap ever since. We needed a frame and casters for the cooker and decided this would be a good time to re-purpose it. This pic was taken after we removed the plywood.



Last edited by wango on Sep 29 2015; edited 1 time in total
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Sep 19 2015    Post subject: Reply with quote

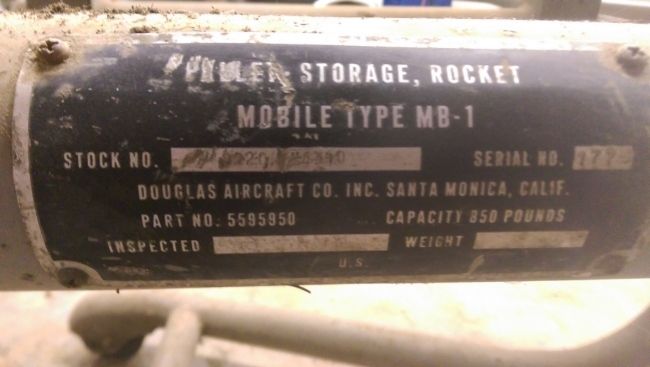

I had never seen this tag until we removed the plywood. Apparently the frame was originally used by the Douglas Aircraft Co for some type of rocket storage. It says its rated for 850 lbs, I had 1000 lbs on a couple times and it held it fine. So the name of his grill is now "The Rocket" which is contradictory for a slow cooker, but hey with that tag, how can it be called anything else? The tag is going to stay on. Looking at the welds on the angle iron frame, its pretty clear that it was added later on.



Last edited by wango on Sep 29 2015; edited 1 time in total
Back to top
View user's profile Send private message
wango
BBQ Fan


Joined: 17 Feb 2012
Posts: 149
Location: Michigan

PostPosted: Sep 19 2015    Post subject: Reply with quote

Removing the angle iron



Last edited by wango on Sep 29 2015; edited 1 time in total
Back to top
View user's profile Send private message
