Jewelry box plans??? Got some plans


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Off Topic
View previous topic :: View next topic
Author Message
71ragtop
BBQ Pro


Joined: 01 Mar 2009
Posts: 748
Location: Joliet , Illinois

PostPosted: Nov 07 2013    Post subject: Jewelry box plans??? Got some plans Reply with quote

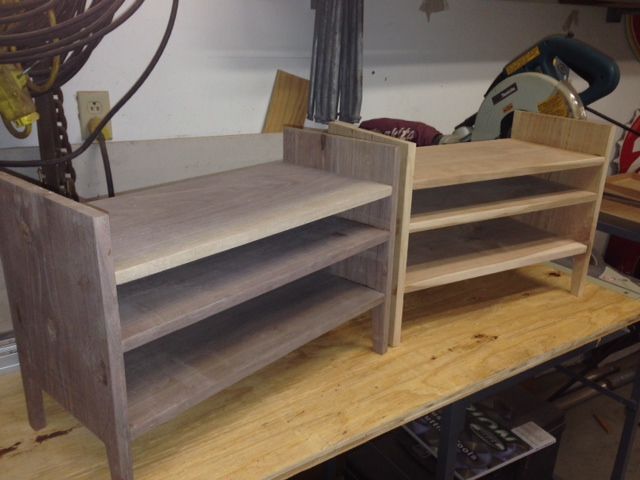

Looking for some wood plans to build this box. Just seem to be able to find pics no plans. Any help? So here is what I have so It's early morn here just got off 16 hour shift from the Illinois Tornados. Praying for all the injured and people who lost everything.




far

_________________


Last edited by 71ragtop on Nov 18 2013; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail
BUGSnBBQ
BBQ Super Pro


Joined: 29 Jul 2010
Posts: 3981
Location: Smyrna, Georgia

PostPosted: Nov 08 2013    Post subject: Reply with quote

Did you look here?

http://www.finewoodworking.com/
_________________
The Matt Ryan of LIARS! (#2)

I had the RIGHT to remain silent, I just didn't have the ABILITY.

Support your 2nd Amendment RIGHT. Criminals prefer unarmed victims.
Back to top
View user's profile Send private message
ckone
BBQ Super Pro


Joined: 23 Oct 2009
Posts: 2451
Location: Austin, TX

PostPosted: Nov 08 2013    Post subject: Reply with quote

i made my wife a jewelry box once, i just winged it on the plans.

I am going to assume you have looked at Wood magazine a time or two?


If you have not come up with anything by sunday (my day off) i will see what i can do to help you out. (I work 9a-10p the next few so if i am here is will be barley popped,, as I am now)
_________________
22.5 Weber Kettle
OK Joe
The Bubba Keg
Back to top
View user's profile Send private message
71ragtop
BBQ Pro


Joined: 01 Mar 2009
Posts: 748
Location: Joliet , Illinois

PostPosted: Nov 08 2013    Post subject: Reply with quote

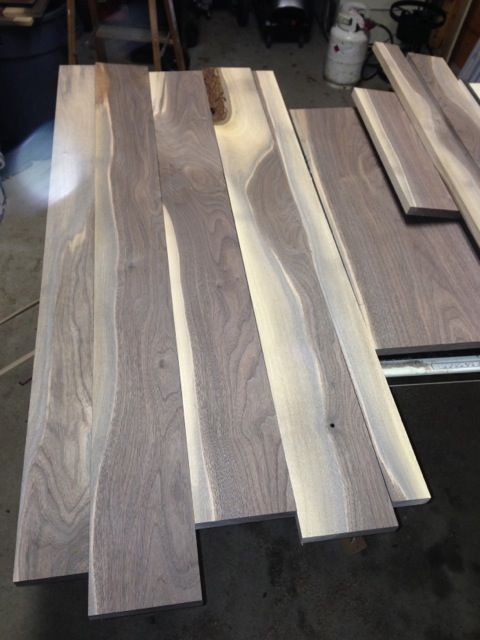

Ya I looked all over the web and couldn't find the plans for this one. I could probably wing it but don't want to waste a bunch of wood. This is from a tree I cut down about 10 years ago. There was an ad in the paper that said free for the hauling
_________________
Back to top
View user's profile Send private message Send e-mail
BUGSnBBQ
BBQ Super Pro


Joined: 29 Jul 2010
Posts: 3981
Location: Smyrna, Georgia

PostPosted: Nov 09 2013    Post subject: Reply with quote

Oooohhhhh...Purdy wood Laughing . Walnut is one of my favorites. Love the smell of it. You obviously have the skills - Good luck and post some pics when you finish!
_________________
The Matt Ryan of LIARS! (#2)

I had the RIGHT to remain silent, I just didn't have the ABILITY.

Support your 2nd Amendment RIGHT. Criminals prefer unarmed victims.
Back to top
View user's profile Send private message
ckone
BBQ Super Pro


Joined: 23 Oct 2009
Posts: 2451
Location: Austin, TX

PostPosted: Nov 10 2013    Post subject: Reply with quote

That is nice looking wood indeed.

The box looks pretty simple to me. The drawer fronts would seem to be cut from the same piece that makes the front. use a thin kerf blade for sure. I don't get the lines on the side, i assume they are just decoration, but they don't make sense to me.

How thick is your material? Do you have a bandsaw? or planer? When i made my wife a jewelry box, I did 1/2" for the "cabinet" and 1/8" for the side panels of the drawers. (i think, i will measure tomorrow if I remember)

This one might work as a bit of a reference for demensions:

http://www.woodmagazine.com/woodworking-plans/gifts-accessories/boxes/jewelry-box/
_________________
22.5 Weber Kettle
OK Joe
The Bubba Keg
Back to top
View user's profile Send private message
Canadian Bacon
BBQ Super All Star


Joined: 06 Sep 2007
Posts: 13550
Location: Mississauga ON Canada

PostPosted: Nov 10 2013    Post subject: Reply with quote

If it were me...I would make a change of plans....that is beautiful wood.....I think you should use
that wood and build your wife a humidor with it. Wink Laughing Laughing
_________________
Horizon Offset (Marshall RD Special)
30 " Electric Masterbuilt(Digital)
Large BGE
Napoleon Legend Gasser
20"& 26" Discada
Two of the fastest Thermapens ever made ... Black& Blue
LIAR #25
