How do I build a Firebox Latch? Please show me your pics.


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
Pappy
BBQ Fan


Joined: 29 Mar 2011
Posts: 131
Location: Granite City, Illinois (Near St. Louis)

PostPosted: Thu Feb 21 13 5:12 am    Post subject: How do I build a Firebox Latch? Please show me your pics. Reply with quote

We are building an offset smoker and looking for ways to make the door latch for the firebox. We like the idea of using a freezer door latch, but we are not sure if it will be heavy enough to withstand the heat. Please post a picture of your firebox latch, so we can get some great build ideas. We appreciate your help.
_________________
22.5 WSM, 120 Gallon Offset, Weber Performer, IQ-110, ET-732
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Thu Feb 21 13 7:39 am    Post subject: Reply with quote

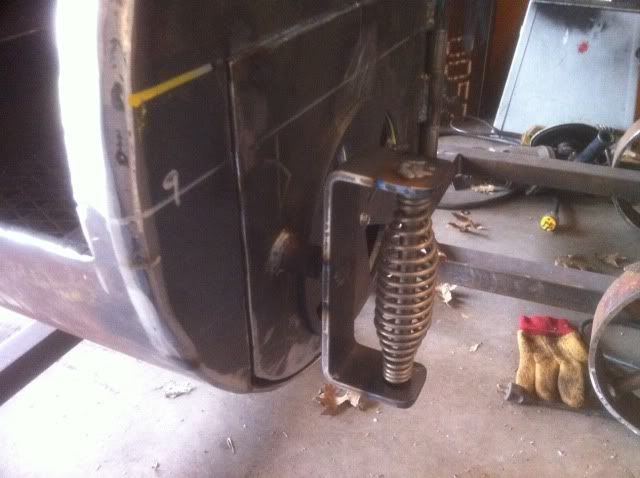

Pappy, here are some pics of the latch on my Hybrid.


The wedge on the firebox goes up, this way the weight of the handle keeps the door latched.

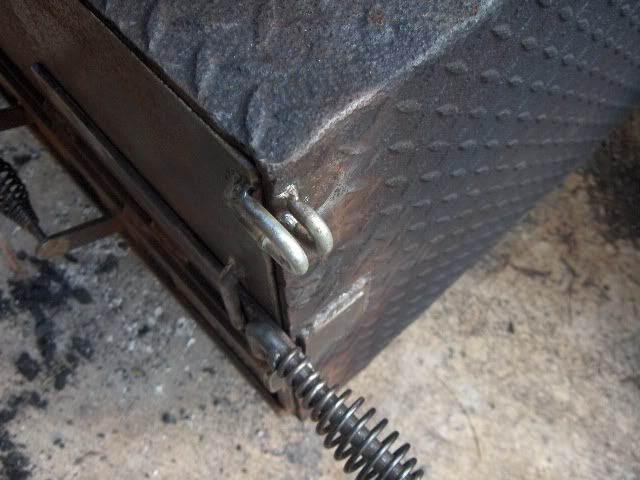

Here is one I built for firebox mod on a cooker.



_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
TrailerBuilder
BBQ Super Pro


Joined: 08 Feb 2010
Posts: 3151
Location: Springfield MO

PostPosted: Fri Feb 22 13 9:00 am    Post subject: Reply with quote

k.a.m.'s way of doing handles works perfectly. Ive "borrowed" his ideal more than a time or two. I just did my handles a little different on the outside, but identical on the inside of the firebox.



_________________
X2 Finished Build
Disco Time
Fire Pit
Back to top
View user's profile Send private message Visit poster's website
Maniac
BBQ Super Pro


Joined: 02 Oct 2010
Posts: 2432
Location: Pa

PostPosted: Fri Feb 22 13 9:33 am    Post subject: Reply with quote

antique window latch.

_________________
RF Smoker
20" disc
uds
Back to top
View user's profile Send private message
Steve. D.



Joined: 07 Jan 2013
Posts: 3

PostPosted: Fri Mar 08 13 2:08 am    Post subject: Spiral Handles Reply with quote

Where do you buy those spiral handles?
Back to top
View user's profile Send private message
SoEzzy
Site Admin


Joined: 13 Oct 2006
Posts: 13183
Location: SLC, UT

PostPosted: Fri Mar 08 13 2:21 am    Post subject: Re: Spiral Handles Reply with quote

Steve. D. wrote:
Where do you buy those spiral handles?


Lots of folks buy cheap welding hammers, and use the handles.
_________________
Here's a change Robert.

I still work here!
Back to top
View user's profile Send private message Send e-mail
Pappy
BBQ Fan


Joined: 29 Mar 2011
Posts: 131
Location: Granite City, Illinois (Near St. Louis)

PostPosted: Fri Mar 08 13 2:41 am    Post subject: Re: Spiral Handles Reply with quote

Steve. D. wrote:
Where do you buy those spiral handles?


We bought our at:
http://www.kck.com/bbq_pit_spring_handle_barbecue_grill_smoker_wood_stove.html
_________________
22.5 WSM, 120 Gallon Offset, Weber Performer, IQ-110, ET-732
Back to top
View user's profile Send private message
Blazer
BBQ Fan


Joined: 07 Sep 2011
Posts: 254
Location: southeast ohio

PostPosted: Sat Mar 09 13 8:25 am    Post subject: Reply with quote

Here is how I do mine with 1/2'' rod and 1/2'' schedule 80.





I hope these are the right size, been awhile. Wink
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Sat Mar 09 13 9:10 am    Post subject: Reply with quote

Blazer wrote:
Here is how I do mine with 1/2'' rod and 1/2'' schedule 80.










I hope these are the right size, been awhile. Wink

Show off. Razz Laughing
I fixed your spacing for ya. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
Blazer
BBQ Fan


Joined: 07 Sep 2011
Posts: 254
Location: southeast ohio

PostPosted: Sat Mar 09 13 9:27 am    Post subject: Reply with quote

Thanks ole bud need all the help I can get. Very Happy Guess I should have hid that mig gun huh. Just know that my O/A setup was close at hand Very Happy Very Happy Very Happy
Back to top
View user's profile Send private message
bearcat6973



Joined: 26 Apr 2012
Posts: 12

PostPosted: Mon Mar 11 13 7:22 am    Post subject: Reply with quote

Blazer wrote:
Thanks ole bud need all the help I can get. Very Happy Guess I should have hid that mig gun huh. Just know that my O/A setup was close at hand Very Happy Very Happy Very Happy


great pics guys. I am at that stage... could somebody explain the piece inside the camber with the angle?
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Mon Mar 11 13 7:48 am    Post subject: Reply with quote

bearcat6973 wrote:
Blazer wrote:
Thanks ole bud need all the help I can get. Very Happy Guess I should have hid that mig gun huh. Just know that my O/A setup was close at hand Very Happy Very Happy Very Happy


great pics guys. I am at that stage... could somebody explain the piece inside the camber with the angle?


bearcat6973, the wedge is what the bar on the door latches against. This works well because as the door heats up the closure changes and the wedge lets you apply more or less pressure on the handle for a tight fit.
I hope this helps.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
bearcat6973



Joined: 26 Apr 2012
Posts: 12

PostPosted: Mon Mar 11 13 9:37 pm    Post subject: Reply with quote

makes sense.-- would the angle facing up or down make a difference? ( in my noob mind I would think the angle facing up and you turning the hangle down on it (with gravity) would make a better closure)) Just trying to determine the latch that would give me the best bang for the buck...

FYI tried to post a similar response but something happend so sorry if I have two posts.
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26019
Location: Southeast Texas.

PostPosted: Tue Mar 12 13 12:49 am    Post subject: Reply with quote

bearcat6973, the way I build mine to tighten the handle turns clockwise and down. The weight of the handle keeps the door closed during travel time.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
ChuckieD
BBQ Super Pro


Joined: 07 Oct 2009
Posts: 1129

PostPosted: Tue Mar 12 13 12:56 am    Post subject: Reply with quote

Pappy,
Here is a link for a few more handles and latches. Wink

http://www.thesmokering.com/forum/viewtopic.php?t=38051&highlight=
_________________
SEE YA!
Chuckie D.


Big Green Egg XL
UDS build
The Old Brick Barbecue Project!
Back to top
View user's profile Send private message
