steel buying question: grate construction


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
auto5man
BBQ Fan


Joined: 04 Jun 2009
Posts: 192
Location: Memphis, TN

PostPosted: Thu Oct 25 12 10:50 pm    Post subject: steel buying question: grate construction Reply with quote

for grates constructed of angle iron and expanded metal...what size angle do I order? (using expanded metal 3/4 #9 flat)

Dave
_________________
New Braunfels el Cheapo offset
Born in the Que-S-A Comp Team
36in x 120in Homebuilt
DPP Clone Build in progress: http://www.thesmokering.com/forum/viewtopic.php?t=65139&start=0
Back to top
View user's profile Send private message
TrailerBuilder
BBQ Super Pro


Joined: 08 Feb 2010
Posts: 3151
Location: Springfield MO

PostPosted: Fri Oct 26 12 12:47 am    Post subject: Reply with quote

Most use 1x1 angle 1/4" thick I believe. Personally I use 1x1 14 ga square tube.
_________________
X2 Finished Build
Disco Time
Fire Pit
Back to top
View user's profile Send private message Visit poster's website
rocam69
Newbie


Joined: 29 Jan 2011
Posts: 74
Location: Humboldt,Saskatchewan Canada

PostPosted: Fri Oct 26 12 3:14 am    Post subject: Reply with quote

Hi
using 1x1x.250 is overkill I would use 1x1x.125 thats plenty strong.
_________________
Stupid usually hurts
Back to top
View user's profile Send private message
Argentine BBQ



Joined: 16 Oct 2012
Posts: 12

PostPosted: Fri Oct 26 12 4:08 am    Post subject: Grate Reply with quote

It depends on the dimensions of the grate. I ordered the steel for my grates this morning. I went with 1 1/4" x 1 1/4" x 1/8" as rack will be 700mm x 700mm for my vertical smoker.
You load it up with 3 big pork legs at 14kg each, that is 42 kg trying to bend it.
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26012
Location: Southeast Texas.

PostPosted: Fri Oct 26 12 4:11 am    Post subject: Reply with quote

rocam69 wrote:
Hi
using 1x1x.250 is overkill I would use 1x1x.125 thats plenty strong.

Personally I like overkill especially on grates over 24" wide. On grates 24" wide and narrower I will use 1" x 1" x .125 over that and they get 1" x 1" x .250. The grates do not distort as bad in my opinion.
Not much heavier and nice and straight. Very Happy



_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
TrailerBuilder
BBQ Super Pro


Joined: 08 Feb 2010
Posts: 3151
Location: Springfield MO

PostPosted: Fri Oct 26 12 4:49 am    Post subject: Reply with quote

rocam69 wrote:
Quote:
Hi
using 1x1x.250 is overkill I would use 1x1x.125 thats plenty strong.

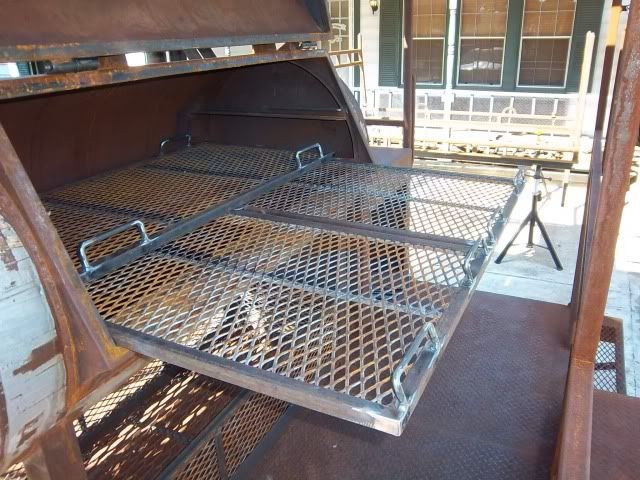

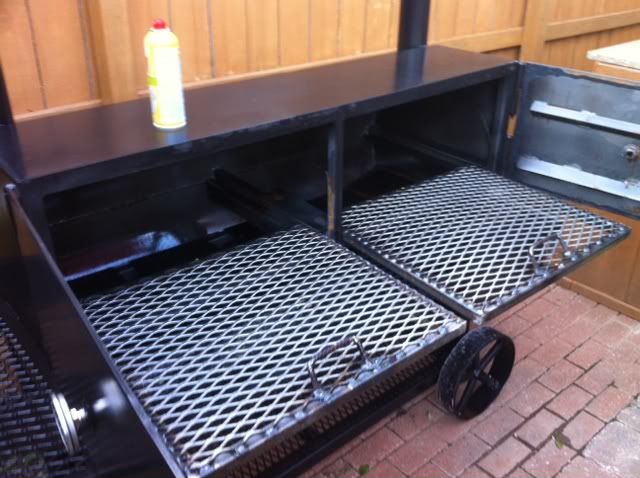

I personally use 1" square tubing, but I am a firm believer in overkill, but thats why the cookers I build will outlast anyone that I built it for. Its not much more money to go with 1/4" over 1/8" and in the end, the finished product is built to last and to last a lifetime. Also, if you happen to be running tuning plates, the 1/4" 1x1 angle is used for the rails the plates sit on, also the 1/4" 1x1 angle can be used for the front shelf on the cooker as well. Why buy 2 different thicknesses of material if you dont have to?


1x1 1/4" angle for tuning plate rails.


1/4" angle for front shelf on the cooker.


Square Tube grates. 1x1x14ga


_________________
X2 Finished Build
Disco Time
Fire Pit
Back to top
View user's profile Send private message Visit poster's website
auto5man
BBQ Fan


Joined: 04 Jun 2009
Posts: 192
Location: Memphis, TN

PostPosted: Fri Oct 26 12 10:25 am    Post subject: Reply with quote

Thanks for the input everybody, i appreciate it...called the steel guy earlier today and he starts asking me what size angle (?) ...i had no idea there were so many choices. I like overkill so I will choose the thicker one. I like keeping things simple too, will use the same angle for rack slides and to make the grates.
_________________
New Braunfels el Cheapo offset
Born in the Que-S-A Comp Team
36in x 120in Homebuilt
DPP Clone Build in progress: http://www.thesmokering.com/forum/viewtopic.php?t=65139&start=0
Back to top
View user's profile Send private message
smootz
BBQ Super Fan


Joined: 12 Nov 2011
Posts: 451
Location: Kitts Hill, Ohio

PostPosted: Fri Oct 26 12 11:19 am    Post subject: Reply with quote

I'm with Troy on the square tubing. I just like the look. On large grates I've been using 1-1/4 x 1-1/4 x 14 ga.
_________________
150 gallon vertical
propane pig
180 RF
Back to top
View user's profile Send private message
