First uds build done! Would like flat lid though....


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
thunder92
Newbie


Joined: 29 Dec 2010
Posts: 53

PostPosted: Thu Nov 15 12 1:49 am    Post subject: First uds build done! Would like flat lid though.... Reply with quote

Ok, this is my first build and I love it. Smoked my first turkey last night and came out pretty good. Held 250 temp for 3 hours easy.

The weber lid doesn't quite fit so I assume i can roll the edges a little.

But wouldn't a flat lid enable me to use less fuel when I don't need that extra lid clearance?

Since I had to cut my lid off how would I go about modding a flat lid also?
[/img]
Back to top
View user's profile Send private message
SoEzzy
Site Admin


Joined: 13 Oct 2006
Posts: 13183
Location: SLC, UT

PostPosted: Thu Nov 15 12 2:52 am    Post subject: Reply with quote

Whatever you do you need a lid that fits.

http://www.thesmokering.com/forum/viewtopic.php?t=49419 this has my second UDS and you can see that it has a flat lid, you can also see that the Turkey fryer thermometer is about 2 inches above the first reinforcing ring, the therm is about 1/2 inch below the grate.

If I want I can add 3 soup cans, that have had both top and bottom cut off and have a second grate still in the distance from there to the lid.

You use a small amount of extra fuel to get the pit up to temperature because of the additional volume of air to heat but it doesn't take any more to run it, (in real terms), with a flat lid or domed... except that you need a well fitted lid, a well fitted lid allows you to control the air intake and exhaust flow, and that's what controls the amount of fuel you are going to burn.

You can either roll out the edge of the dome lid, or add an internal lip to the top of the drum, that fits nicely, and makes for a better seal to keep out drafts and wind.

You are better off starting with an open top drum, that has a flat lid, than a closed top drum that you have to cut the lid out of.

Most places that sell larger number of drums will carry both, round here we can buy used lined drums from $15 -$20, you can get refurbished unlined drums for $40 - $45, and you can buy new, (unlined unused), drums for $62 - $65, so take a little time and work out which way you want to go and build a second.
_________________
Here's a change Robert.

I still work here!
Back to top
View user's profile Send private message Send e-mail
Maniac
BBQ Super Pro


Joined: 02 Oct 2010
Posts: 2432
Location: Pa

PostPosted: Thu Nov 15 12 2:52 am    Post subject: Reply with quote

the lids i have are concave to sit on the drum lip....not quite sure if a welded drum is exactly the same diameter...would give it a try tho ...good luck.
_________________
RF Smoker
20" disc
uds
Back to top
View user's profile Send private message
KAKid
BBQ Super Pro


Joined: 30 Oct 2009
Posts: 1454
Location: Huron, South Dakota

PostPosted: Thu Nov 15 12 4:22 am    Post subject: Reply with quote

SoEzzy wrote:
Whatever you do you need a lid that fits.

You can either roll out the edge of the dome lid, or add an internal lip to the top of the drum, that fits nicely, and makes for a better seal to keep out drafts and wind.

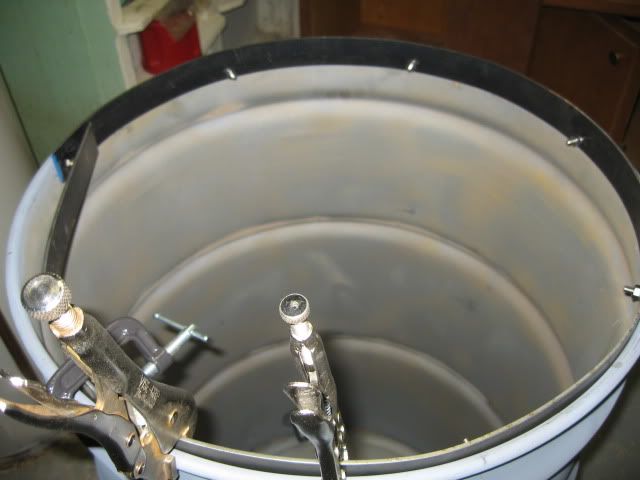

I find I get a better seal with an internal lip. Flat stock is readily available at home improvement/hardware stores. You can muscle it into place or have a metal shop run it thru a roller for an easier install, though I "rolled" this one using the floor and my foot.

_________________
I was taught to respect my elders. It's just getting harder to find them.


Chargriller Outlaw w/SFB and Mods
Pair of UDS's
10 gal CI Chili/Jambalaya pot
Back to top
View user's profile Send private message Send e-mail
Rinngrizz
BBQ Pro


Joined: 13 Mar 2012
Posts: 525
Location: Sioux Falls, SD

PostPosted: Thu Nov 15 12 2:09 pm    Post subject: Reply with quote

KAKid wrote:
SoEzzy wrote:
Whatever you do you need a lid that fits.

You can either roll out the edge of the dome lid, or add an internal lip to the top of the drum, that fits nicely, and makes for a better seal to keep out drafts and wind.


I find I get a better seal with an internal lip. Flat stock is readily available at home improvement/hardware stores. You can muscle it into place or have a metal shop run it thru a roller for an easier install, though I "rolled" this one using the floor and my foot.



+1 on the flatt stock. I used it and some rope gasket for a pretty darn tight fit
_________________
Jason

Modified ECB
UDS
Back to top
View user's profile Send private message
seattlepitboss
BBQ Pro


Joined: 28 Oct 2008
Posts: 573
Location: Seattle, Washington

PostPosted: Wed Nov 21 12 10:21 am    Post subject: Reply with quote

As far as I'm concerned the drum that a stock-standard Weber kettle fits is nonexistent. What I do is to use flat stock rolled into a ring. I weld that to the drum, then the Weber kettle lid sits perfectly on that. It only takes a few minutes and mine hardly leaks at all.

Flat lids are generally secured by ring straps (my term). These generally come with rubber gaskets. I discarded flat lids because I didn't want to deal with either no gasket or hot rubber.

Although you could probably just get by if your drum is in perfect condition, using a piece of flat steel cut in a circle a bit larger than the drum OD.

Having a lid that works correctly is huge.

seattlepitboss
Back to top
View user's profile Send private message
