New Sausage Stuffer Build is done.....

Awning Guy · Posted: Jul 30 2012 Post subject: New Sausage Stuffer Build is done.....

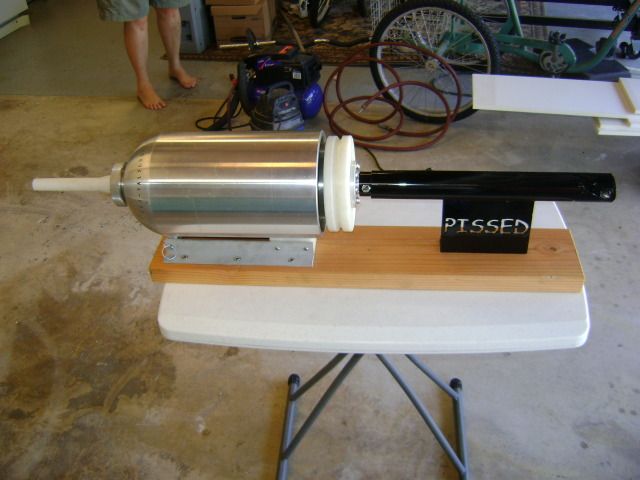

This project started out with a Scuba tank and a Trailer Jack. (No, drugs we not involved on the concept.) I came up with this idea with a Buddy of mine and had some help from a few of my Students at the College.

We named it PISSED Presure Itensified
Sausage Stuffing EngineeredDevice.

I got the tank on Craigs List for $20 and bought the trailer jack on sale for $25. This one was a cheap build. It performed well overall. I need to make a small modification on the tank. it needs a clamp to hold it down when stuffing. Other than that, I took about 4 minutes to stuff the 12lb. capacity thanks to my Cordless drill. Cool

Hers a link to the start to finish

http://s214.photobucket.com/albums/cc82/zachwieja/sausage%20stuffer/?start=0
_________________
First Build[/url]
Pig Cooker
Pizza Oven
Disco

Jarhead · Posted: Jul 30 2012 Post subject:

Awning Guy, that is a work of art.
I like the beer in the classroom idea. Not too many students skipping, eh?
_________________
Gunny 3073/4044/8411

Jarhead's World Blog
KCBS CBJ & HMFIC Debbie's Q Shack

Awning Guy · Posted: Jul 31 2012 Post subject:

No Beer at the College. Crying or Very sad

Those pics are from my shop.
_________________
First Build[/url]
Pig Cooker
Pizza Oven
Disco

Oregon smoker · Posted: Aug 04 2012 Post subject:

Genius idea.
_________________
#3 LIAR

RodinBangkok · Posted: Aug 04 2012 Post subject:

shape the piston end to match the taper on the housing and you will reduce the left over meat to about whats in the stuffing tube.
_________________
Rod

Awning Guy · Posted: Aug 06 2012 Post subject:

Oregon smoker Thanks Man. It was a fun build.

RodinBangkok Good observation, Your right. The piston being flat and the tank round wastes about a pound of meet. I knew this going in and decided to go with the current design, I intended doing large quantities of sausage at a time and figured I would have some patties for the next day.
_________________
First Build[/url]
Pig Cooker
Pizza Oven
Disco

blue ox · Posted: Aug 09 2012 Post subject:

What about using the same concept with a fire extinguisher? they have a flat bottom.

Tim_Abrahamson · Posted: Aug 20 2012 Post subject:

How do you clean that thing?
_________________
BBQ is like sex...
Even when its bad its still pretty good!
...besides, when is the last time you turned down BBQ?

Oklahoma Joe Longhorn
Big Green Egg
Former Pitmaster Gates and Sons BBQ (KC)

Awning Guy · Posted: Aug 21 2012 Post subject:

If you look close there is a pull pin on the front of the tank. Pulling the pin detaches the tank and in the dishwasher it goes. The piston is held in with a nut and bolt. that I hand wash because i'm not sure if the dish washer will screw it up.
_________________
First Build[/url]
Pig Cooker
Pizza Oven
Disco

TonyMo · Posted: Aug 22 2012 Post subject:

Brilliant! I'll say it again....BRILLIANT!

I love seeing stuff recycled and fabricated into other stuff.
