I have been trying to figure out how to draw/cut the side plates on that type of a door frame.How do you do it?
_________________
Good BBQ is all smoke and beers!
The Dawghouse Custom vertical Gasser
Custom Made offset smoker
Char grill smoker
Weber kettle

[-olllllllo-]

thanks maniac, itchin ta burn, i keep sayin won't be long but i keep finding more to do. lol. today i'm working on the plate for under the grill above the firebox. well that and cookin a yardbird in a most un-conventional way lol.

and it aint too bad workin on 2 at once. he's usually only around saturday and sunday evening, so we go nuts on his then and thru the week i work mostly on mine.

daddywoofdawg, k.a.m. might be the best to ask, mine is only a sincere form of flattery lol.....i steeled his design, lol. but what i did was mock up with cardboard then cut with plasma, lots of grinding if it aint quite right. but as long as your cardboard is real close you should come real close with steel.

darryl

[-olllllllo-]

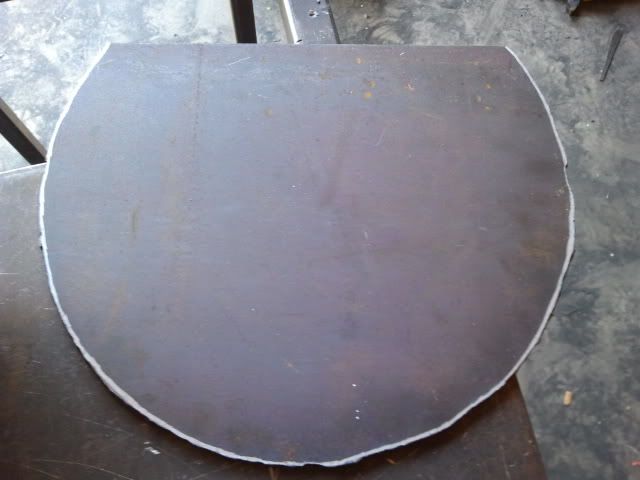

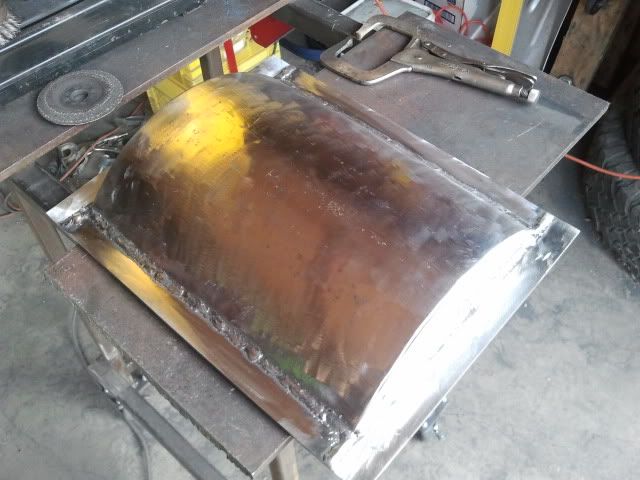

hmmm now what have we here??? looks like a plate.



it is a plate!!! must belong somewhere......



hey look it fits!!! after a bunch of freakin grinding and then ohhh yaaahhh i forgot the name of my q......battle of the bulge. the end of the propane tank was smaller than where the plate had to sit!!! so after all that grinding and fitting to get it in.....plunk!! right to the bottom. piece of angle against the cooker wall fixed it up and removed alot of gap that would have needed filling.

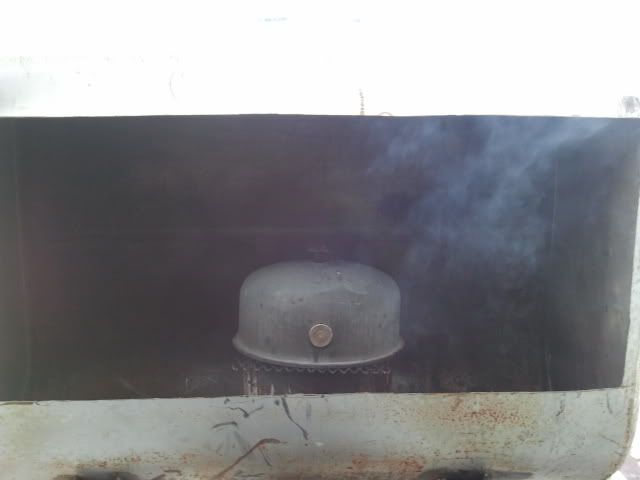

annnd here's another mystery.....looks mysteriously like the bottom end of that propane tank...hmmmmm

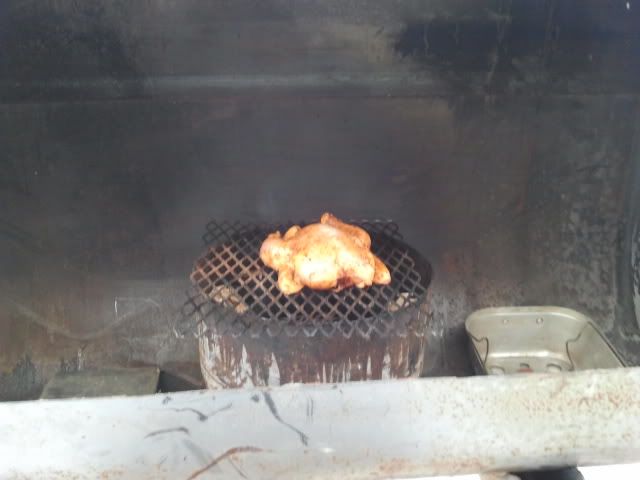

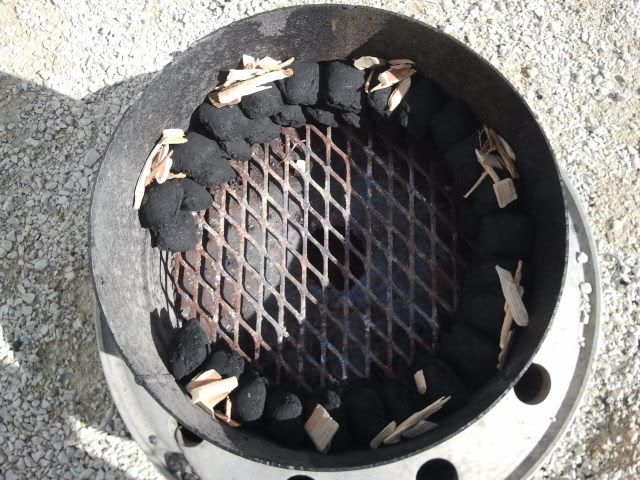

makes such a good lil grill a dadgummed yardbird just hopped up on there all rubbed n ready!!!



aaahhhh but the wind had its way round here today and could not get any temps goin wind breaks and all....hmmm what to do???

wife has the bird back inna house gettin the oven ready....i of course went back to grinding......hey wait a second...what if i....... yehhhh that just might work!!!



now where did that dadgummed bird fly off to???



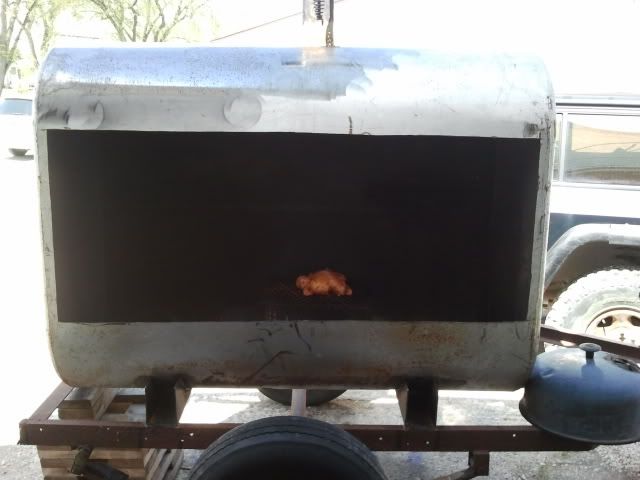

heeheehee well he aint usin it yet.......



now we're cookin bayyybeee!!!



and this my friends is where any good n proper sauce should come from.....the heart and whatever it desires for flavour today. which in this case was a sweet n sticky rum based not even enough tang to bite my wife sauce. she loved it!!! (i like more heat myself)



yummmm fourth basting...



soooo close to ready it aint funny.....just one more basting.....



ohhhh crap!!! well dinner is done it was too good to snap anymore pix of lol but i tell ya it was sweet!!!

darryl

[k.a.m.]

Darryl, another fine looking meal right there my Friend.

Your making some mighty fine progress on your project. I look forward to seeing some more pics and updates.

DFW, lay out a circle of the circumference of your vessel. Then add the straight edge angle of your door face to the outer edge of the curve accounting for the depth of the mounting surface (total height of door is needed). Once this is done add the connecting lines to finish the upper and lower caps. I used a curved bottom which complicated my fit.
I hope this helps.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker

[Wreckless]

[-olllllllo-]

hey thanks kevin, means alot to a rookie weldor like me lol. and yup that bird was tasty with corn onna cob.

wreckless, lmao thanks bud, ya made my day. it was a wee bit o' work but i like the result. loved it the first time i saw kevin's done this way (much better than mine btw). so i had to shteel this one. i haven't cut the firebox door yet, been pondering end facing, slightly facing the front, built out like the cooker door, built out with a 1/2 inch plate i have i can use as a door.

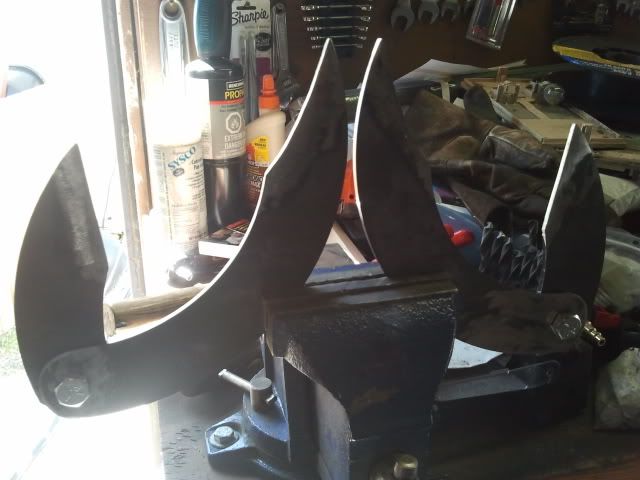

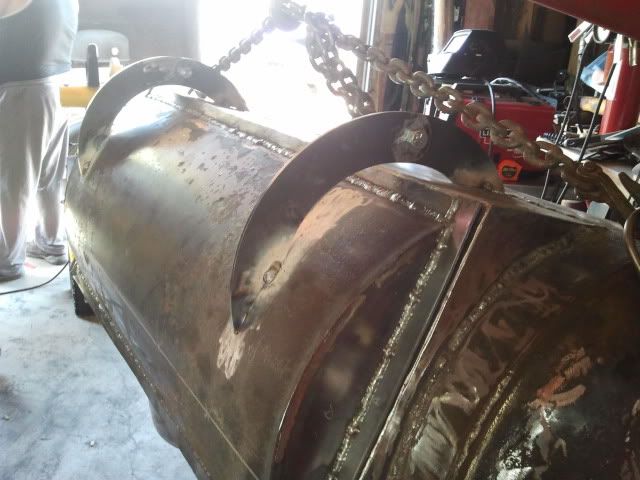

so i went on to making some hinges.....was workin on number 1 when buddy showed up on friday to work, so i cut out the pieces fer number 2, (cuz 1 looked sweet) then finished em off yesterday just before he showed.



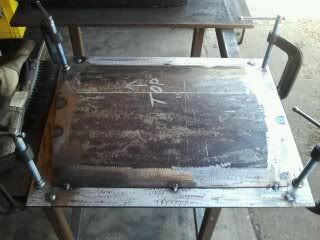

turned out not too bad i figger....for a cook's handiwork lol don't mind my warped goofy azz door lol rooki mistake as usual waaaay too much heat at a time. it balances out tho....i keep makin the mistakes but i stop my buddy from doin the same thing lol.







thats it fer now, mebbe get some more done tonight.....

darryl

[Jonnyrod]

Lookin good dude, keep the pics coming
_________________
http://www.thesmokering.com/forum/viewtopic.php?t=42423

http://www.thesmokering.com/forum/viewtopic.php?t=62257

'A welder is only as good as his last weld'........

[Jonnyrod]

Lookin good dude, keep the pics coming
_________________
http://www.thesmokering.com/forum/viewtopic.php?t=42423

http://www.thesmokering.com/forum/viewtopic.php?t=62257

'A welder is only as good as his last weld'........

[GF]

Darryl, you're making some great headway.
Looking forward to seeing your progress, nice job.

[-olllllllo-]

hey thanks gf and jonnyrod. havin a blast building it.

hey wreckless, now waddya think this firebox door is built for???





apparently my welding is improving!!!





some jerk put a new toy in me truck yesterday....



was new.....not so much no more lol... rubbed with my own mix



135 degrees and no sauce yet...



after 5 coats of sauce (tequila based today) ready for foil...



simple fried rice and ribs, which were cooked perfectly, still held to the bone and awesome maple smokering.



thats all for now.

darryl

[k.a.m.]

-olllllllo-, your making me proud Brother that is looking awesome. I am looking forward to seeing this firebox.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker

[-olllllllo-]

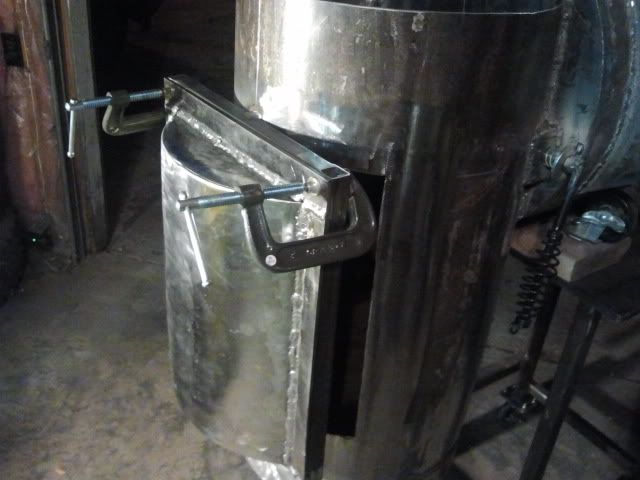

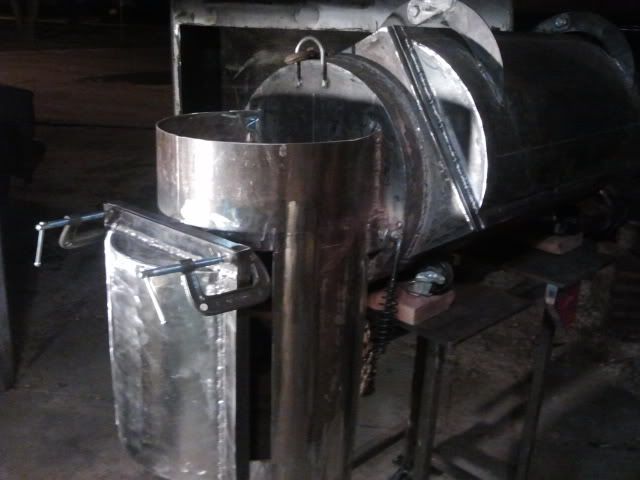

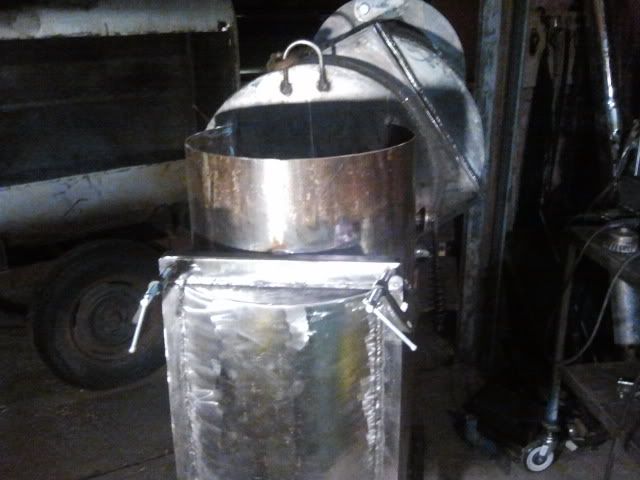

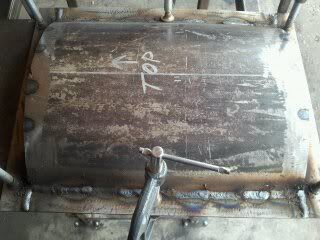

well kevin, i couldn't leave well enough alone after dinner, so i went out an built the frame for the door, tacked it up and clamped the door on for a first lil looksee.







and ya know what???

I BLOODY LIKE IT!!! lol

me wife brought coffee as i was gettin set to tack. after clampin the door up there, i drank my coffee and stared at it. couldn't take my freakin eyes off it. went from cuttin that opening on sunday night to this tonight, with no work done yesterday at all cuz we went to the big city. and all morning today we were tilling the garden and planting stuff. so not bad at all for about 8 hours of figgerin, plannin, measurin, cuttin, fittin, tackin, cookin, weldin an lovin!!!

[Wreckless]

[-olllllllo-]

well i had to drive the school bus yesterday and today, so work was sporadic at best. but i still came a lil ways from 2 days ago considerin i was gone from 7 am til 8 pm yesterday(nuthin done then), lol.

so here is today's wee lil update!!!
now mind the fact it aint purdied up like yer sisters yet......

sides on....





and the top plate just went on about 20 minutes ago, well tacked and gaps filled anyways, but that there 3/8 got hot!!





well that is all for today.....sucks when life gets in the way of fun don't it? lol

darryl

[-olllllllo-]

busy week......unfortunately not in my garage

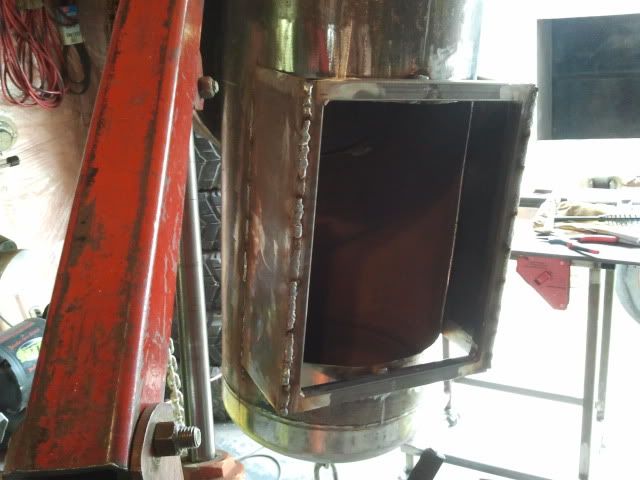

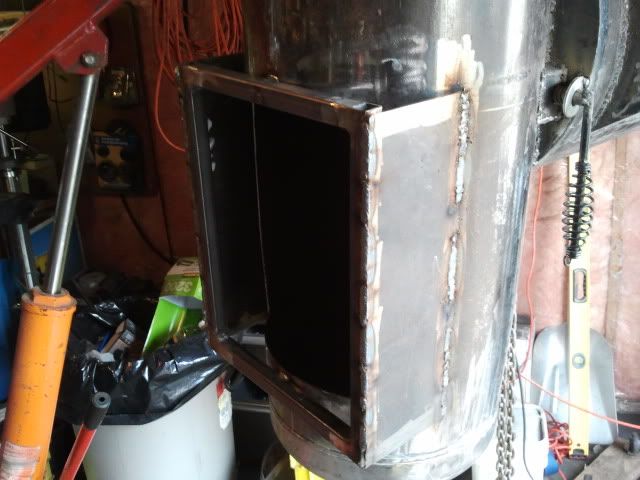

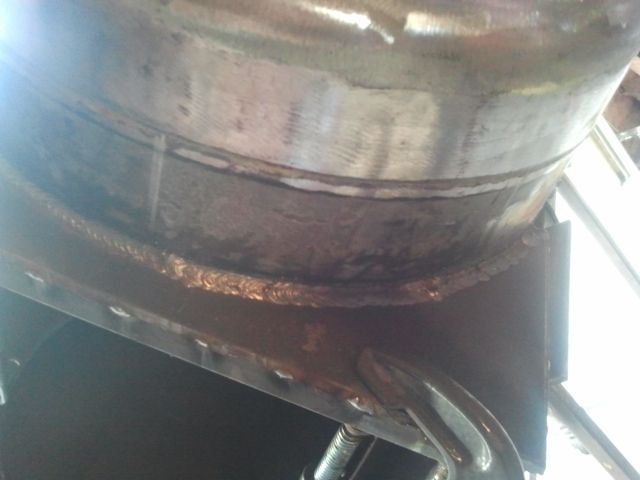

but i got out fer a bit tonight. cut the last plate for under the fb doorway.

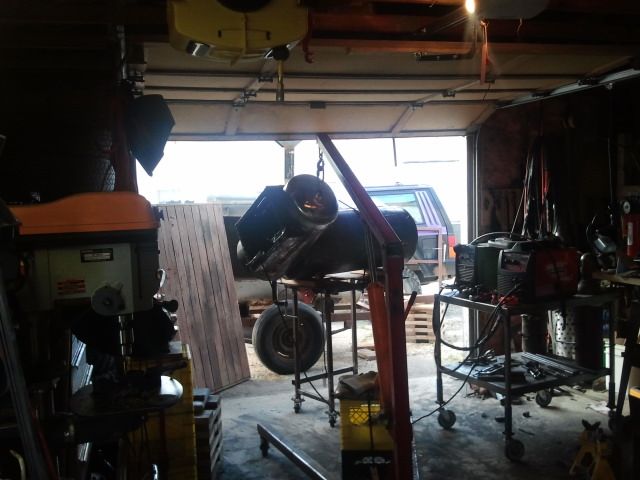

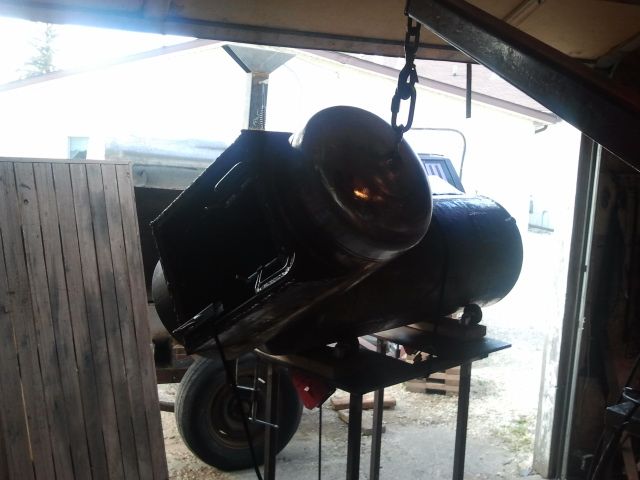

here's some creative welding positioning, lol.

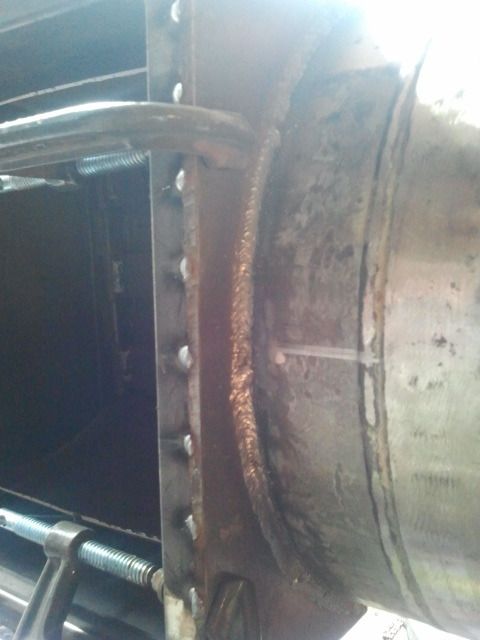

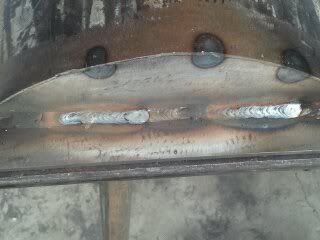

but, i gotta say i am pleased with myself for how that vertical sloped on a curve weld came out. too bad noone will ever see it, lol. it's on the bottom!!!





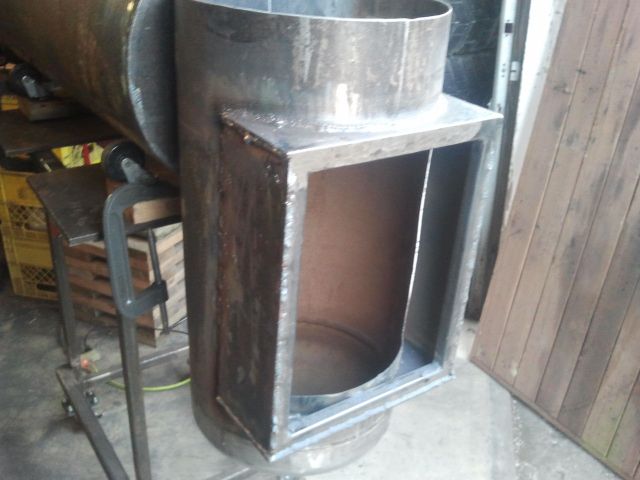

and finally the doorway is boxed in!!! top edge is done with the grinder here. i like my corners rounded a bit. goes back to a really old art class, "it is harder to draw a straight line than it is to sketch a straight line." easier to see faults that is.







that is all for now folks!!!

darryl

[smootz]

[quote="-olllllllo- too bad noone will ever see it, lol. it's on the bottom!!!darryl[/quote]

A real craftsman cares about the parts that can't be seen. Nice progress!
_________________
150 gallon vertical
propane pig
180 RF

[k.a.m.]

-olllllllo-, your cooker is looking fantastic. I look forward to seeing the finished product.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker

[-olllllllo-]

wow i guess its been awhile since an update here. life gets in the way, you do a lil bit here n there, almost get doe, start cookin, forget to post updates. lol ya'll know what i mean.

anways, i think i forgot to get some pix along the way, but here's some of what i got.

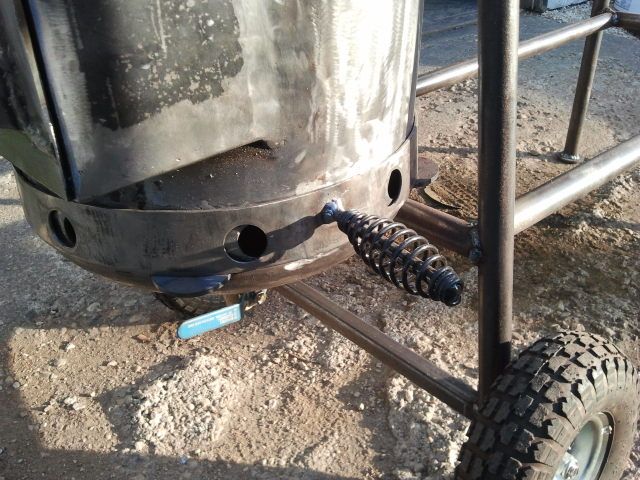

air intake under the firebox...kinda unique, rotates freely.

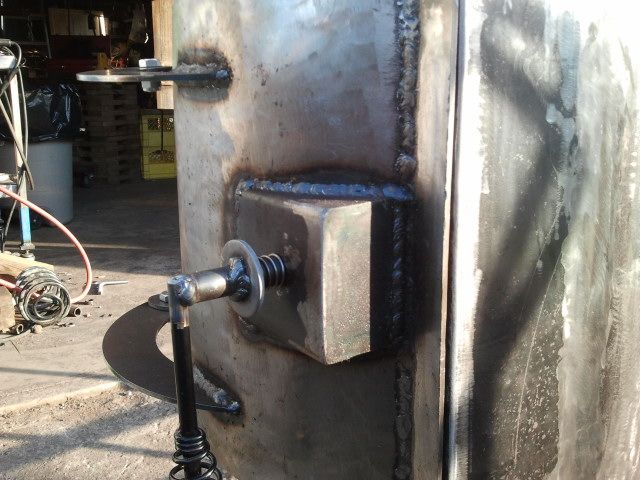

firebox latch...

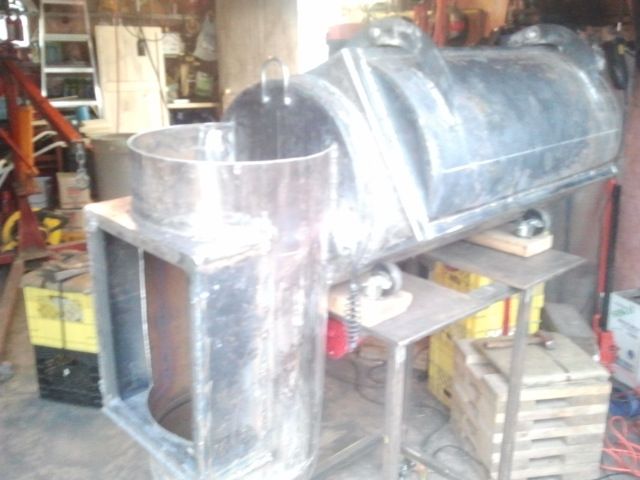

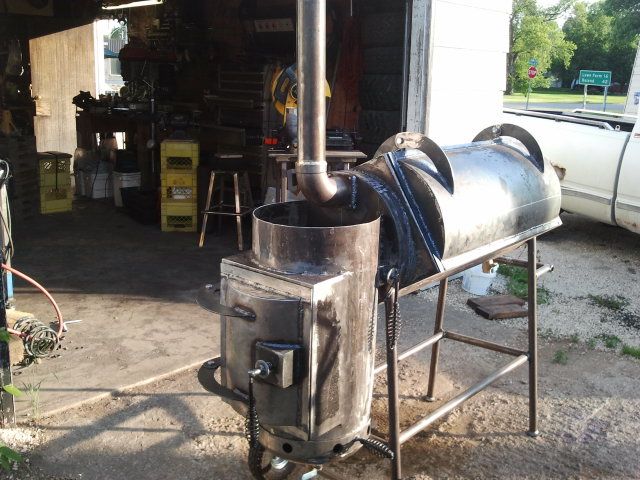

kinda an overall shot shows the fb door, intake, and chimney...

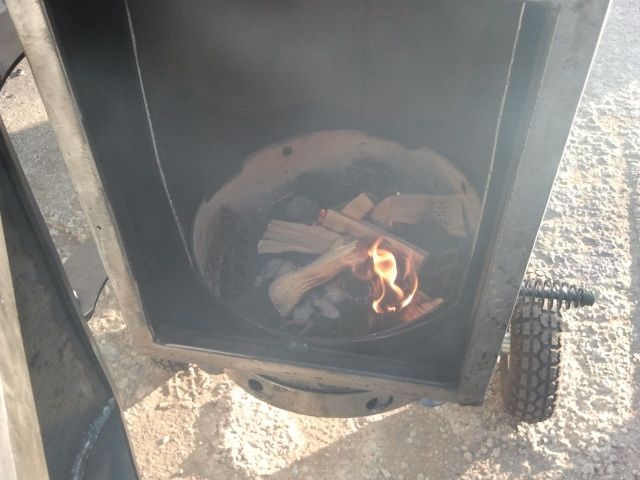

itty bitty first burn with no door seals yet, held about 230 for 2 hours or so......looks promising...
