A Mini UDS .... (FINISHED)
Goto page 1, 2  Next

Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
MacEggs
BBQ Super Pro


Joined: 20 Dec 2010
Posts: 1740
Location: Barrie, Ontario, Canada

PostPosted: Wed Sep 14 11 1:39 am    Post subject: A Mini UDS .... (FINISHED) Reply with quote

... or a cold smoker?
I am leaning towards a cold smoker.

I went to get my oil changed at the local Mr. Lube.
Asked if they had any smaller drums that carried
oil or other types of fluids.

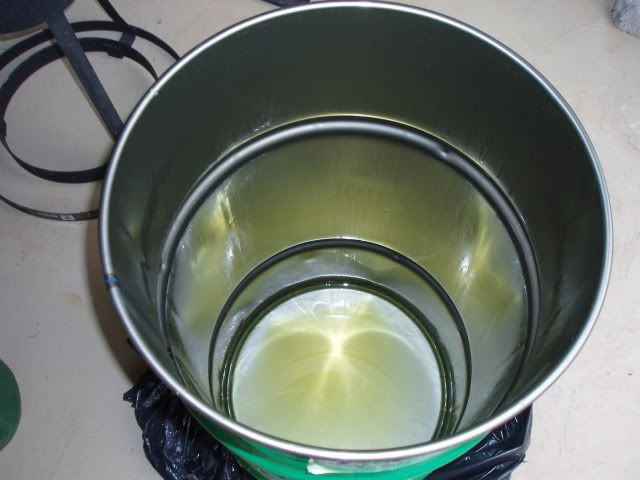

Got this for free!

There is no volume measurement on the outside, just weight.
They said it was 60 Litres, which is just over 16 US gallons.
Measures 26 5/8" high, OD is 14 1/2", ID is 13 7/8".

I would like to find a dome lid to use.
There is no liner, but of course I will do a burn.

If anybody could provide me with information regarding
cooking grates, dome lid, etc. would be greatly appreciated.

Thank you.

Mark



_________________
"If the women don't find you handsome, they should at least find you handy."
Pickled Eggs

The cookers (so far).
Some Weber kettles of various age, color and size
UDS & Mini UDS
Abby Normal ECB
Napoleon Propane Grill


Last edited by MacEggs on Sat Oct 15 11 12:33 am; edited 2 times in total
Back to top
View user's profile Send private message
fxpose
Newbie


Joined: 12 Jul 2010
Posts: 76
Location: Los Angeles

PostPosted: Wed Sep 14 11 6:36 am    Post subject: Reply with quote

Weber Smokey Joe lid and grates should fit.

I'm also planning on making a 16 gal UDS in the near future. I already have the parts from an old Smokey Joe which I can use.
Back to top
View user's profile Send private message
GF
BBQ Super Pro


Joined: 30 Apr 2011
Posts: 2792
Location: Greenwich, CT.

PostPosted: Wed Sep 14 11 8:59 am    Post subject: Reply with quote

MacEggs, The smokey joe lid and grates should fit as fxpose said.
I made 2 electric ones with the same drums, they work well for bacon, jerky, etc. Would probably be a good cold smoker.
Back to top
View user's profile Send private message
pbcfirefighter
Newbie


Joined: 27 Jan 2010
Posts: 56
Location: Loxahatchee,Fl

PostPosted: Wed Sep 14 11 8:20 pm    Post subject: Reply with quote

Do a mini uds .. You wont regret it.. I get at least 8 hours on a charcoal burn and i have cooked as much as 15 lbs of pork at once.. just cut down the intake.. i found it draws much better and cooks more efficiently i have 2 1" ball valves on mine here is the build link..
http://www.thesmokering.com/forum/viewtopic.php?p=492820#492820
_________________
Why is it the least qualified person is always the first hired, and the first promoted?

College football MUDS
Back to top
View user's profile Send private message
SVonhof
BBQ Super Pro


Joined: 03 Sep 2010
Posts: 1417
Location: Central Valley, Ca

PostPosted: Wed Sep 14 11 11:32 pm    Post subject: Reply with quote

Do you really need to burn it out? There is no liner and a good cleaning should do the job. It's not like the metal is porous.

I don't know how long the outer paint would hold up, but why not leave it on there and have a Castrol oil-drum smoker?
_________________
Scott V.
My BBQ's: Weber Silver B (grill), -UDS-, MUDS/Weber Smokey Joe
Back to top
View user's profile Send private message
GF
BBQ Super Pro


Joined: 30 Apr 2011
Posts: 2792
Location: Greenwich, CT.

PostPosted: Thu Sep 15 11 12:19 am    Post subject: Reply with quote

FWIW, I would burn that barrel out. Not sure how porous the metal is, but the seam around the bottom will be full of gear lube.
I don't think a wipe out and de-greaser will get it all.
Good luck on whatever you do with it.
Back to top
View user's profile Send private message
MacEggs
BBQ Super Pro


Joined: 20 Dec 2010
Posts: 1740
Location: Barrie, Ontario, Canada

PostPosted: Thu Sep 15 11 2:28 am    Post subject: Reply with quote

Thanks to everyone for the valued input.
Thanks to pbcfirefighter for the build link.

I will definitely do a burn. Not this weekend, but next.
I picked up a cheap knock-off mini grill for $25 + tax (13%).
The lid was just slightly smaller than required. Returned it.
Found a Weber Smokey Joe, and it's lid should fit.
It's just a little larger than 14½" in diameter.
However, I didn't like the $45 + tax price tag.
I will look on-line for a better price.
_________________
"If the women don't find you handsome, they should at least find you handy."
Pickled Eggs

The cookers (so far).
Some Weber kettles of various age, color and size
UDS & Mini UDS
Abby Normal ECB
Napoleon Propane Grill
Back to top
View user's profile Send private message
SVonhof
BBQ Super Pro


Joined: 03 Sep 2010
Posts: 1417
Location: Central Valley, Ca

PostPosted: Thu Sep 15 11 8:02 am    Post subject: Reply with quote

MacEggs wrote:
Found a Weber Smokey Joe, and it's lid should fit.
It's just a little larger than 14½" in diameter.
However, I didn't like the $45 + tax price tag.
I will look on-line for a better price.


$45 Canadian? Is that bad? The Smokey Joe Silvers go for about $28 around me and the Gold is about $32.
_________________
Scott V.
My BBQ's: Weber Silver B (grill), -UDS-, MUDS/Weber Smokey Joe
Back to top
View user's profile Send private message
1buckie
BBQ Super Pro


Joined: 10 May 2009
Posts: 3290
Location: Sacramento CA

PostPosted: Thu Sep 15 11 10:43 am    Post subject: Reply with quote

I'm tellin'ya, you're going to need an enclosure out back, soon the garage won't hold it all !!!
Speaking of hold, the discada is on hold for a moment ???

~~~~~>K
Back to top
View user's profile Send private message
tacklebox
BBQ Super Pro


Joined: 07 Jul 2009
Posts: 1870
Location: Big Bend, WI

PostPosted: Thu Sep 15 11 1:38 pm    Post subject: Reply with quote

I made a cold smoker out of the one I had. Smokey Joe lid and grates fit perfectly. Here is a link to my build. Any questions-just ask. It works great for jerky, cheese, sausage.

http://www.thesmokering.com/forum/viewtopic.php?t=43790&highlight=
_________________
~Joe
This post is not intended to offend, unless I intend it to
Life is like a penis, some times it gets hard for no reason
Twisted Evil Pompous Ass Bigoted LIAR #69 Twisted Evil
Back to top
View user's profile Send private message
MacEggs
BBQ Super Pro


Joined: 20 Dec 2010
Posts: 1740
Location: Barrie, Ontario, Canada

PostPosted: Thu Sep 15 11 2:07 pm    Post subject: Reply with quote

SVonhof wrote:
$45 Canadian? Is that bad? The Smokey Joe Silvers go for about $28 around me and the Gold is about $32.

Yeah, $45 Cdn is pretty standard.
I might try to get them down a bit - you know, end of season clearance.
On-line they are $30, but not sure what shipping will cost.

1buckie wrote:
I'm tellin'ya, you're going to need an enclosure out back, soon the garage won't hold it all !!!
Speaking of hold, the discada is on hold for a moment ???

~~~~~>K

I was wondering what you were up to! Smile Wink

tacklebox wrote:
I made a cold smoker out of the one I had. Smokey Joe lid and grates fit perfectly. Here is a link to my build. Any questions-just ask. It works great for jerky, cheese, sausage.

http://www.thesmokering.com/forum/viewtopic.php?t=43790&highlight=

Thanks for the link!
I was thinking of making a charcoal basket to cold smoke.
I guess that will work. Not sure yet.
Where did you get all of the cooking grates?
I would like to get my hands on at least 3 more after I get a Smokey Joe.
Wondering if I could order them straight from Weber?
_________________
"If the women don't find you handsome, they should at least find you handy."
Pickled Eggs

The cookers (so far).
Some Weber kettles of various age, color and size
UDS & Mini UDS
Abby Normal ECB
Napoleon Propane Grill
Back to top
View user's profile Send private message
tacklebox
BBQ Super Pro


Joined: 07 Jul 2009
Posts: 1870
Location: Big Bend, WI

PostPosted: Thu Sep 15 11 2:51 pm    Post subject: Reply with quote

MacEggs wrote:
Thanks for the link!
I was thinking of making a charcoal basket to cold smoke.
I guess that will work. Not sure yet.
Where did you get all of the cooking grates?
I would like to get my hands on at least 3 more after I get a Smokey Joe.
Wondering if I could order them straight from Weber?


I got the grates at a local hardware store for like $6 or $7 US a piece, but I am sure you could get them direct from Weber also.
_________________
~Joe
This post is not intended to offend, unless I intend it to
Life is like a penis, some times it gets hard for no reason
Twisted Evil Pompous Ass Bigoted LIAR #69 Twisted Evil
Back to top
View user's profile Send private message
MacEggs
BBQ Super Pro


Joined: 20 Dec 2010
Posts: 1740
Location: Barrie, Ontario, Canada

PostPosted: Mon Sep 26 11 7:34 am    Post subject: Reply with quote

Hauled the drum up to my buddy's place.

Got a burn done.



A quick once-over sanding.


It's amazing how perfect the Smokey Joe lid fits.


I fabricated some legs.


Didn't have any paint, but will get that done soon.
My buddy's neighbour is making the charcoal basket.
Not sure when it will be done, but no rush I guess.
_________________
"If the women don't find you handsome, they should at least find you handy."
Pickled Eggs

The cookers (so far).
Some Weber kettles of various age, color and size
UDS & Mini UDS
Abby Normal ECB
Napoleon Propane Grill
Back to top
View user's profile Send private message
MacEggs
BBQ Super Pro


Joined: 20 Dec 2010
Posts: 1740
Location: Barrie, Ontario, Canada

PostPosted: Sat Oct 15 11 12:32 am    Post subject: Reply with quote

I'm just waiting on the charcoal basket.
Otherwise, it's all done.



Perfect fit for the Smokey Joe lid. Smile


The paint I used was a gloss black. Almost matched the lid.


I drilled three holes for the intakes with a step drill bit.
They measured 13/16". The nipples are half inch ID.
Two get caps, and one has the ball valve.



Three legs - to prevent rocking. Wink


Half way down, I used a grate, and placed a SS bowl on it as a diffuser.
The bowl measures 11¼" in diameter.


And then 3 cooking grate levels.




Cheap thermo at the middle grate level.


90° to the front, I put a pass thru for a remote therm.


Handles on either side.


Just need to season it, and then start smoking!
_________________
"If the women don't find you handsome, they should at least find you handy."
Pickled Eggs

The cookers (so far).
Some Weber kettles of various age, color and size
UDS & Mini UDS
Abby Normal ECB
Napoleon Propane Grill
Back to top
View user's profile Send private message
GF
BBQ Super Pro


Joined: 30 Apr 2011
Posts: 2792
Location: Greenwich, CT.

PostPosted: Sat Oct 15 11 12:53 am    Post subject: Reply with quote

MacEggs, Nice job. Now we gotta see it in action. Wink
Back to top
View user's profile Send private message
El Ropo
BBQ Fan


Joined: 24 Sep 2010
Posts: 331
Location: Austin, TX

PostPosted: Sat Oct 15 11 2:21 am    Post subject: Reply with quote

That's gonna pump out some great Q! Great job!

I bet it's gonna be extremely fuel efficient as well.
_________________
Highly modified Brinkmann Gourmet
Basic UDS
Back to top
View user's profile Send private message
The_Rodent



Joined: 01 Oct 2011
Posts: 4

PostPosted: Mon Oct 17 11 4:28 am    Post subject: Reply with quote

Very nice UDS
Back to top
View user's profile Send private message
Hell Fire Grill
BBQ Super Pro


Joined: 17 Mar 2007
Posts: 3921
Location: Pickler's Puragatory!!

PostPosted: Mon Oct 17 11 6:31 am    Post subject: Reply with quote

MacEggs. I'll give this build a solid HELL YA!! It looks great!!
All the fab work is spot on, paint looks good, I'm impressed.

Get that mother fuger smokin man.
Back to top
View user's profile Send private message
MacEggs
BBQ Super Pro


Joined: 20 Dec 2010
Posts: 1740
Location: Barrie, Ontario, Canada

PostPosted: Mon Oct 17 11 12:08 pm    Post subject: Reply with quote

First of all, thanks for the kind words from:
GF, El Ropo, The_Rodent, and HFG!
A lot of props go out to all the members who contribute as well!
A few short years ago, I was just a griller on a gasser. Smile Crying or Very sad Shocked Laughing

I farmed out the welding for the charcoal basket.
Still waiting. The welder is a hunter, and hunting season just started in these parts.
No worries. Never rush a hunter, I'm told.
_________________
"If the women don't find you handsome, they should at least find you handy."
Pickled Eggs

The cookers (so far).
Some Weber kettles of various age, color and size
UDS & Mini UDS
Abby Normal ECB
Napoleon Propane Grill
Back to top
View user's profile Send private message
on the hook



Joined: 22 Sep 2011
Posts: 6
Location: Iraq, Pa, S Jersey and maybe Tx

PostPosted: Mon Oct 17 11 2:41 pm    Post subject: Reply with quote

Very nice work. I'm planning on getting a WSM, but after seeing this, I'd rather make one. Probably still buy it though. I don't have the time right now to make it. Again, very nice Smile
Back to top
View user's profile Send private message
Display posts from previous:
Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers All times are GMT + 8 Hours
Goto page 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum


Powered by phpBB © 2001, 2002 phpBB Group
