Dp Styled Pic update 9-6
Goto page 1, 2, 3  Next

Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Thu Jun 17 10 9:41 am    Post subject: Dp Styled Pic update 9-6 Reply with quote




_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883


Last edited by watchado on Tue Sep 07 10 1:45 am; edited 10 times in total
Back to top
View user's profile Send private message
patruns
BBQ Super Pro


Joined: 03 Mar 2010
Posts: 3193
Location: Long Island, New York

PostPosted: Thu Jun 17 10 11:15 pm    Post subject: Reply with quote

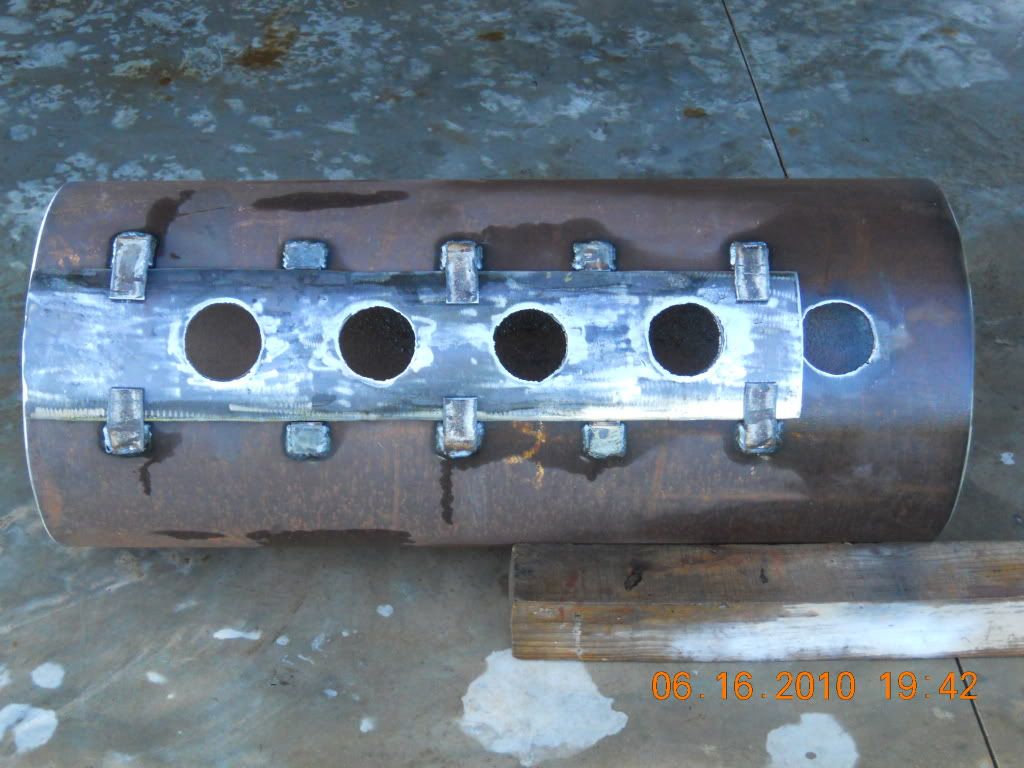

Interesting idea. Watcha gonna do with it and all that intake space?
_________________
Pat

Char-Griller Outlaw with SFB
Weber Smokey Joe
Weber Q 220
LIAR#49
Back to top
View user's profile Send private message Send e-mail
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Fri Jun 18 10 1:12 am    Post subject: Reply with quote

I think it's probably a little much but I kept the plugs and if I want I'll just drop a couple through from the top and weld them back in. The cooker I'm building is on another thread on down the list.
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
patruns
BBQ Super Pro


Joined: 03 Mar 2010
Posts: 3193
Location: Long Island, New York

PostPosted: Fri Jun 18 10 3:32 am    Post subject: Reply with quote

Help us out here watchado.... what's the link to the thread? I am too lazy to start searching.... Smile
_________________
Pat

Char-Griller Outlaw with SFB
Weber Smokey Joe
Weber Q 220
LIAR#49
Back to top
View user's profile Send private message Send e-mail
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Fri Jun 18 10 3:42 am    Post subject: Reply with quote

http://www.thesmokering.com/forum/viewtopic.php?t=40597
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 25941
Location: Southeast Texas.

PostPosted: Sat Jun 19 10 10:06 am    Post subject: Reply with quote

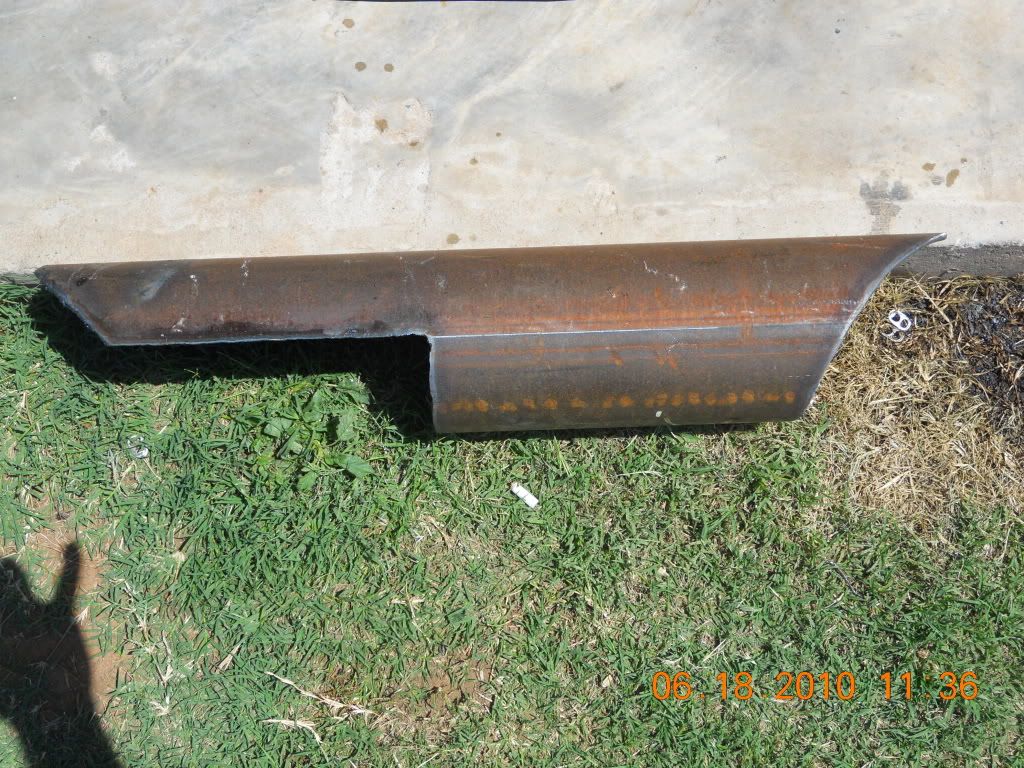

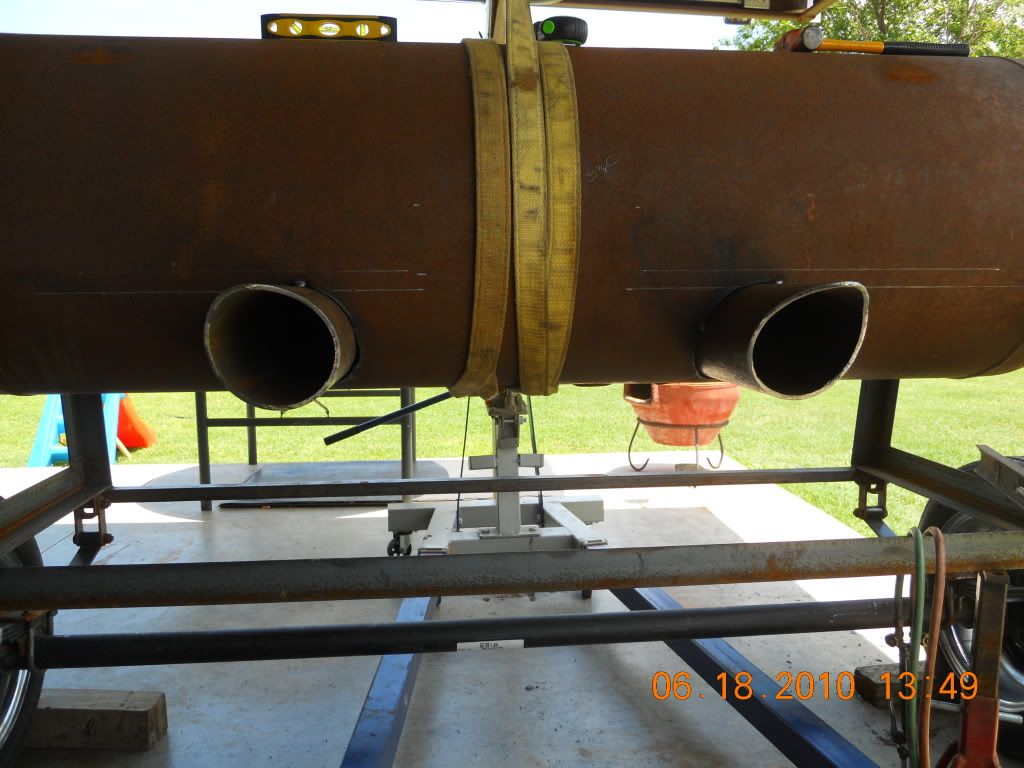

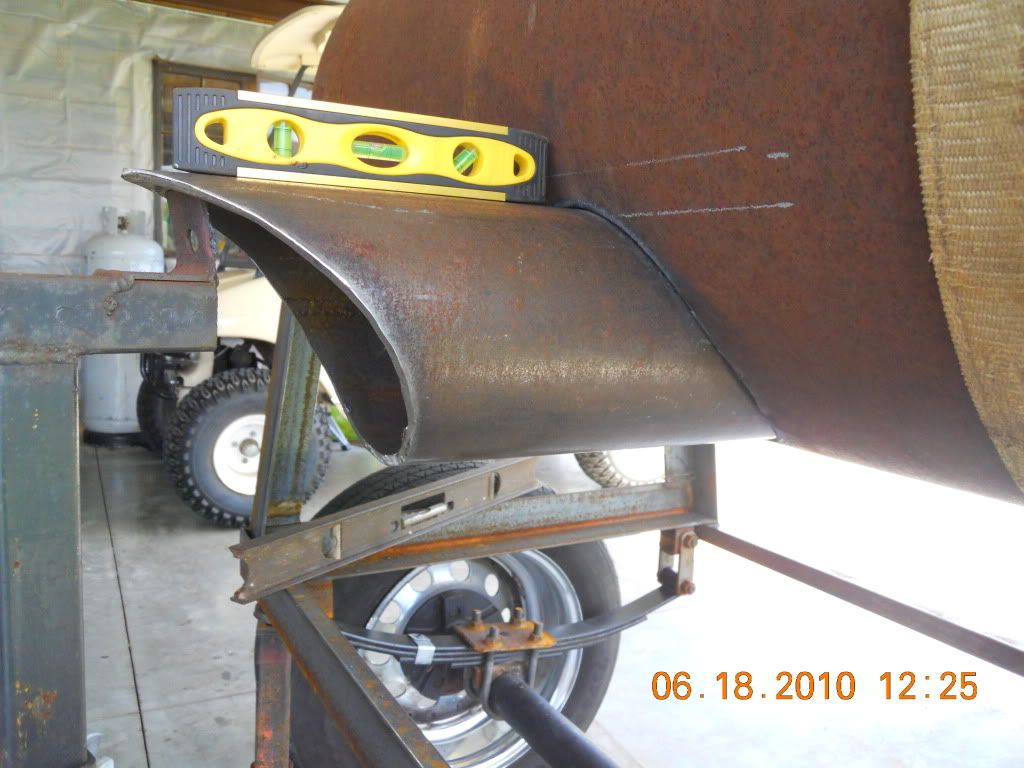

watchado, I like the way you did your intakes very nice work. Very Happy I always try for more intake just in case there is a need for it. Better to have and not need than to need and not have. I will be watching for more updates. Smile
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

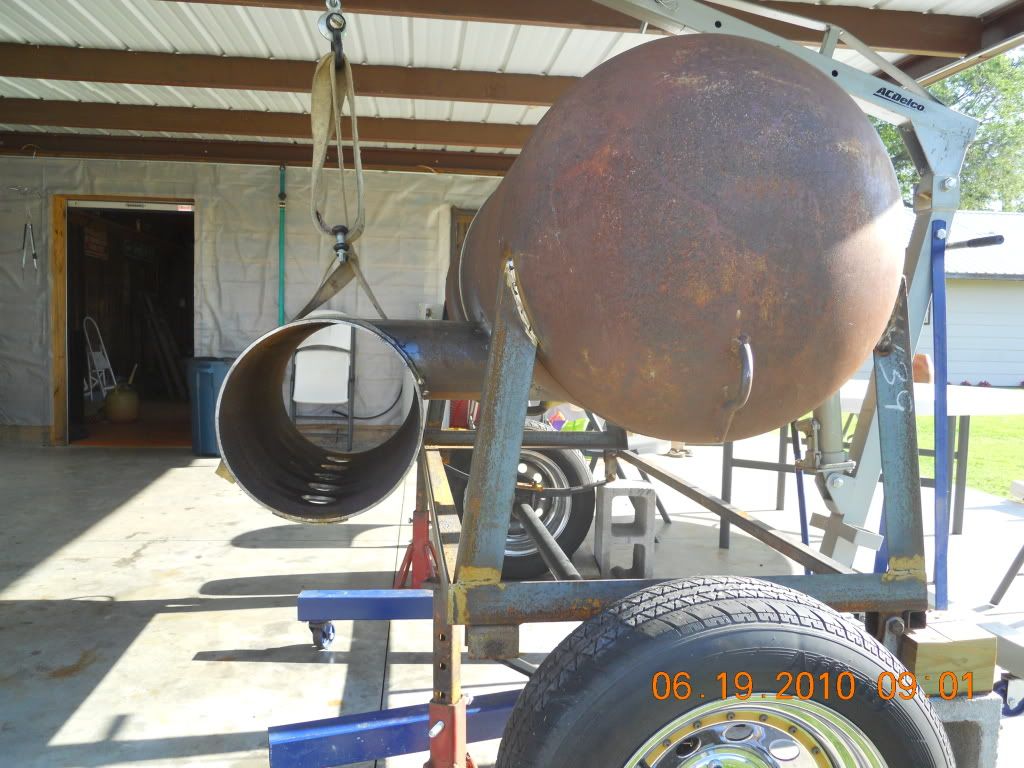

PostPosted: Sun Jun 20 10 2:04 am    Post subject: Reply with quote








_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 25941
Location: Southeast Texas.

PostPosted: Sun Jun 20 10 2:49 am    Post subject: Reply with quote

watchado, you are moving right along. Very Happy Those are some nice fit ups you have. Very nice work my man. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Sun Jun 20 10 1:26 pm    Post subject: Reply with quote

Thanks KAM,,,,,I really enjoy the challenge and pushing my ability.
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Wed Jun 23 10 11:55 am    Post subject: Pic update. Reply with quote

Have not had much time to work on the smoker the last few days but did manage to get the tongue on this evening. Sure is nice to be able to move it around now!


_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

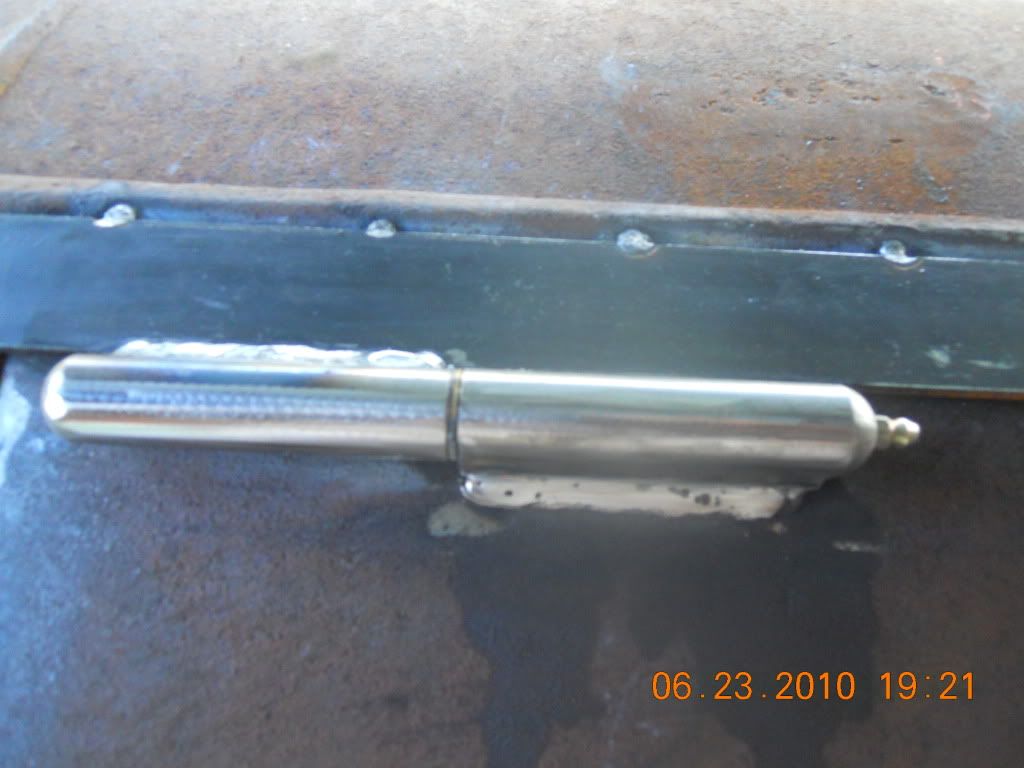

PostPosted: Thu Jun 24 10 9:18 am    Post subject: Reply with quote

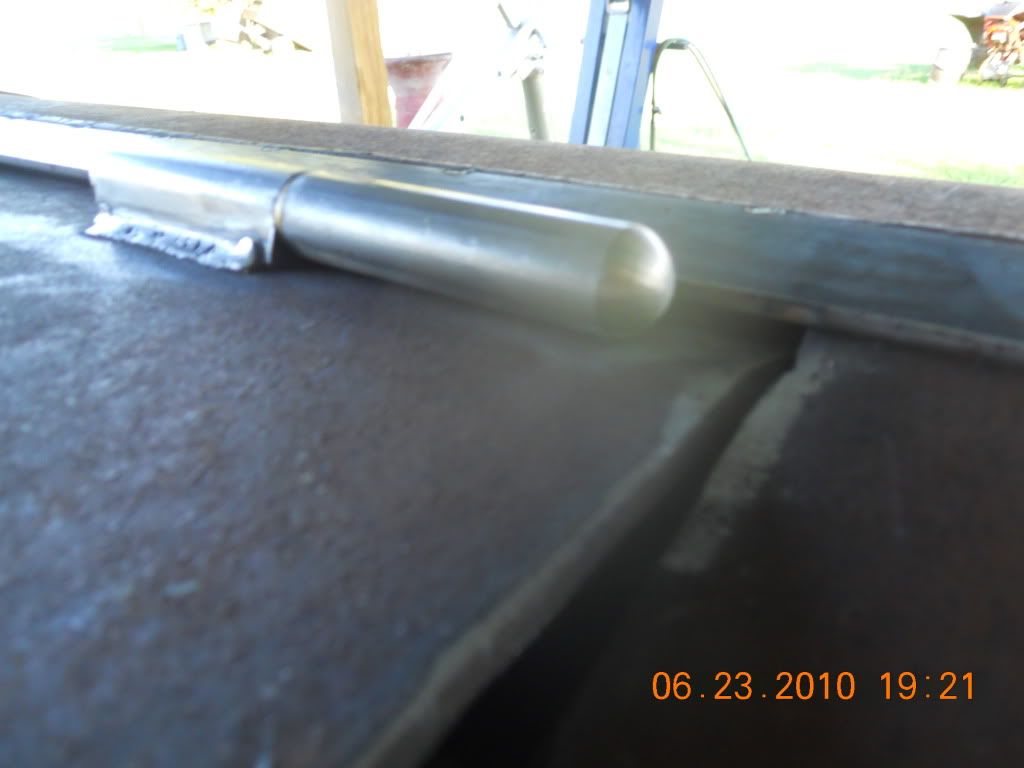

Got the doors cut out and one hung. Went with the top of the door under the flange to help keep rain water out. Top flange runs entire length of the smoker and the hinges are welding to the flange. Both doors pulled pretty good when I made the final cuts, (initial cuts were made two days ago) so I don't think it had anything to do with heat just something that happens some time. I put them on the ground on a block of wood and wacked them around a bit with a 10lb sledge and damn if they don't fit!!! Here's the pics, hope you enjoy.







Still lots more welding to do, just wanted to make sure it all worked before I got carried away.
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
pmack



Joined: 10 Jul 2008
Posts: 9

PostPosted: Thu Jun 24 10 4:45 pm    Post subject: Reply with quote

Coming along nice. I've got a couple tanks similiar to yours. You may be the inspiration and guide I need to get going.
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Fri Jun 25 10 12:49 am    Post subject: Reply with quote

pmack wrote:
Coming along nice. I've got a couple tanks similiar to yours. You may be the inspiration and guide I need to get going.


All I can say is get started! I'll help in anyway I can. Cool
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

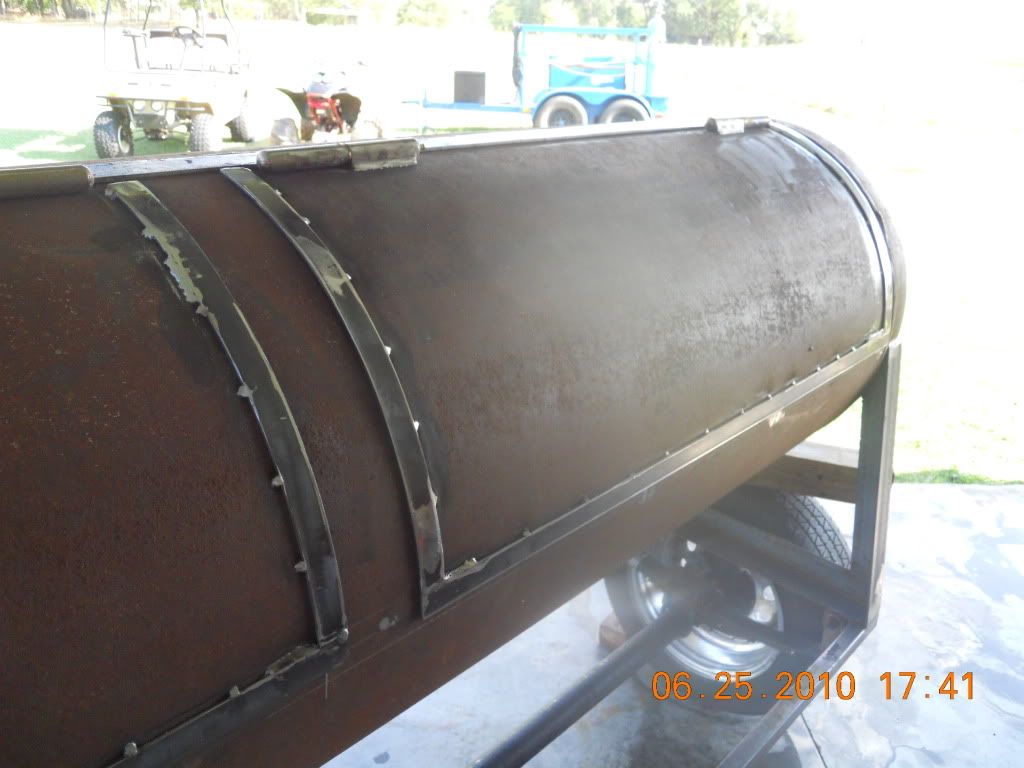

PostPosted: Sat Jun 26 10 7:03 am    Post subject: Reply with quote

Okay here's what I got done today. Other door hung and straps tacked on. All of the pull out rack slides put in and two of the pull out racks made. Guess I didn't order enough angle iron!!! O well, I'm ready to go to the lake tomorrow anyway. It sure is hot here in Southwest Oklahoma. Here's the pics.






_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 25941
Location: Southeast Texas.

PostPosted: Sat Jun 26 10 8:25 pm    Post subject: Reply with quote

watchado, your cooker is coming along nicely. Very Happy I like the way you mounted your doors, and the split you chose for size. Very nice work. I will be watching for more updates. Smile
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

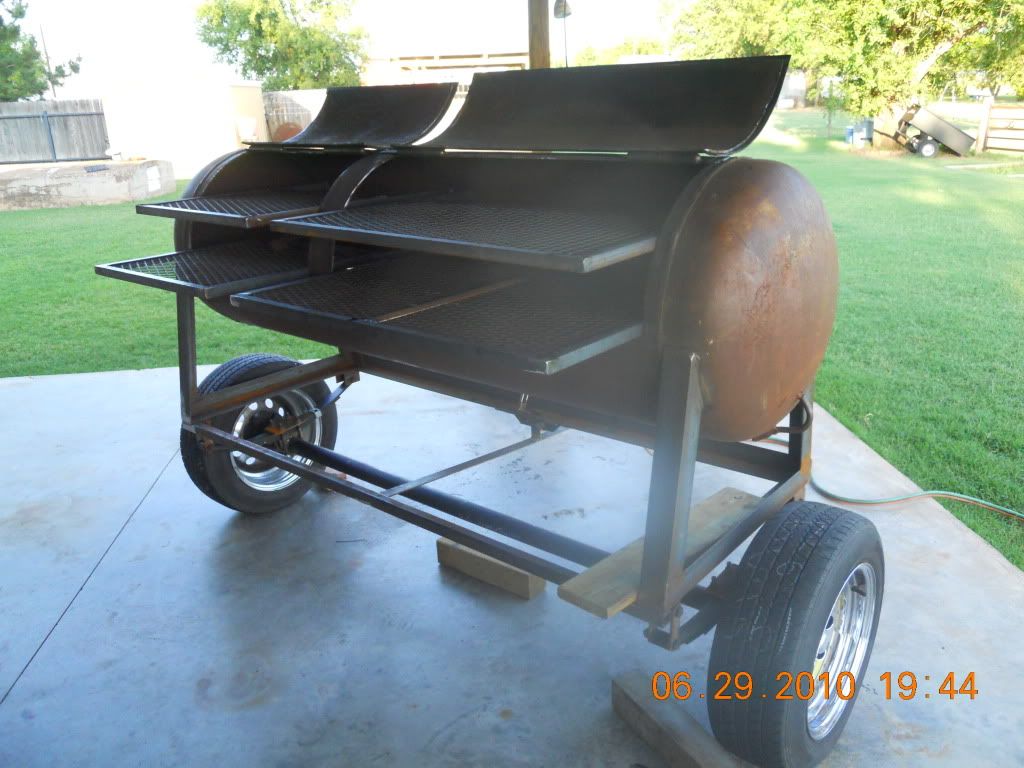

PostPosted: Wed Jun 30 10 9:28 am    Post subject: Reply with quote

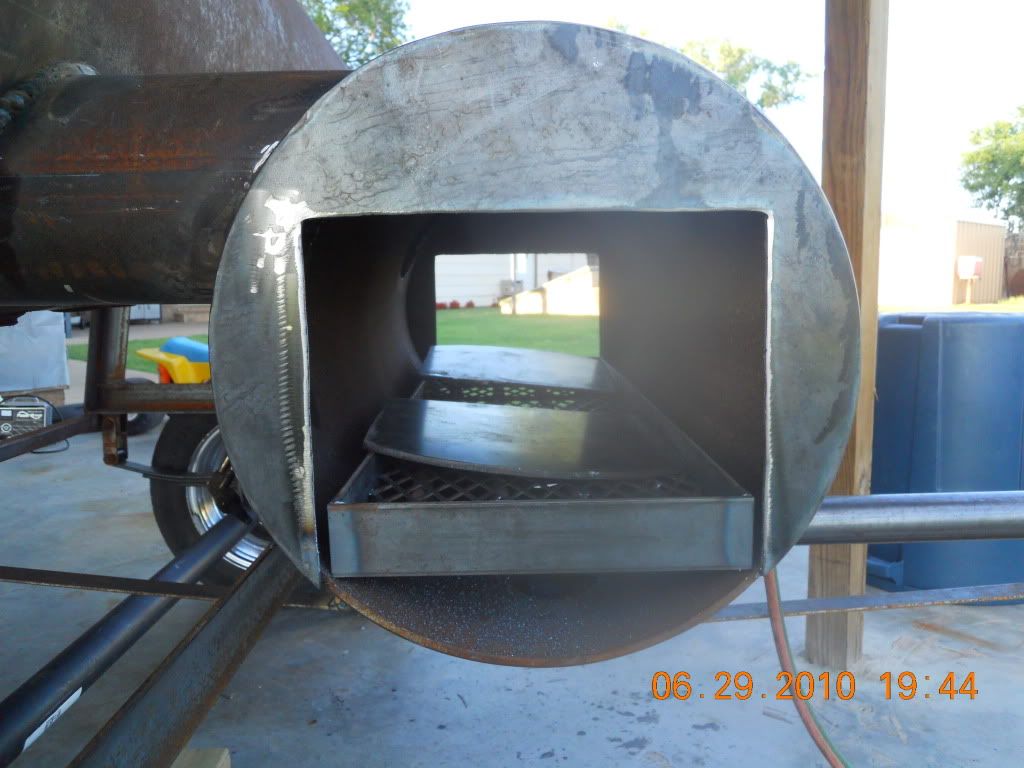

Got a little work done this evening. Finished the slide out racks, welded both ends in the firebox and built the firebox grate.






_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 25941
Location: Southeast Texas.

PostPosted: Thu Jul 01 10 7:54 am    Post subject: Reply with quote

watchado, I am loving your build. Very Happy You are putting out some very fine work. I love the split on your doors, and I am convinced that this is what I want on my next build. The option for whole pig room is nice. Keep up the fine work and I will be watching for more updates. Smile
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
bigtex
BBQ Fan


Joined: 20 Jul 2007
Posts: 142
Location: Bonham, Tx

PostPosted: Thu Jul 01 10 8:31 am    Post subject: Reply with quote

Keep up the good work. Your project looks awesome.
Back to top
View user's profile Send private message
Travis_Creek
BBQ Pro


Joined: 10 Jul 2005
Posts: 581
Location: Aubrey, TX

PostPosted: Thu Jul 01 10 9:17 am    Post subject: Reply with quote

Always a compliment to see a nice clone being built. I remember when we hit the scene, our design was off the wall.

Looks real nice!
_________________
SMOKERS THAT WORK!!!
214-471-4690
Back to top
View user's profile Send private message Send e-mail Visit poster's website
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 25941
Location: Southeast Texas.

PostPosted: Thu Jul 01 10 9:25 am    Post subject: Reply with quote

Travis_Creek wrote:
Always a compliment to see a nice clone being built. I remember when we hit the scene, our design was off the wall.

Looks real nice!

The ultimate compliment. Very Happy Nicely done Travis. Very Happy
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
