Air intake question bottom of first post. Pictures updated


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Wed Jun 09 10 10:21 pm    Post subject: Air intake question bottom of first post. Pictures updated Reply with quote

Finally got started this week and have a few questions. First all my cook chamber is 72" x 24", my fire box is going to be 20" x 4'. I'm thinking 6" inlet pipe from firebox to cook chamber. Will all this said, how many pipes does everyone use from firebox to cook chamber? What does DP actually use? What type of air inlet on firebox? Smoke stacks, size? I'm sure I'll have more questions but this is a good start. This thing has to be cooking by July 10! I love working under pressure.

I'm thinking 5-3" holes at 6 o'clock. May be overkill but I don't have to open them up all the way. At least I'll be assured to have enough. Any thoughts?
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883


Last edited by watchado on Wed Jun 16 10 9:17 am; edited 3 times in total
Back to top
View user's profile Send private message
Get Your Rub On BBQ
BBQ Fan


Joined: 12 Oct 2008
Posts: 333
Location: Cordova, TN

PostPosted: Wed Jun 09 10 11:22 pm    Post subject: Reply with quote

Check out the DP site. There are plenty of photos on there that may help answer some questions. We've also got a pretty darn good sale going on right now.

www.diamondplatepits.com
_________________
James Stephens
Extreme BBQ Trailers
www.extremebbqtrailers.com
Back to top
View user's profile Send private message Send e-mail Visit poster's website
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Wed Jun 09 10 11:28 pm    Post subject: Reply with quote

I've looked at that site hundreds of times! And your right it is a good sale but some of it just have to do it ourselves! But don't get me wrong. If I had the money laying around that's exactly what I'd do but I think the misses would be less then supportive! I think she actually likes to watch me slave away in this hot Oklahoma heat.
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
OkieJay
BBQ Super Pro


Joined: 04 Aug 2005
Posts: 1027
Location: Oklahoma City area

PostPosted: Thu Jun 10 10 7:40 am    Post subject: Reply with quote

watchado wrote:
I've looked at that site hundreds of times! And your right it is a good sale but some of it just have to do it ourselves! But don't get me wrong. If I had the money laying around that's exactly what I'd do but I think the misses would be less then supportive! I think she actually likes to watch me slave away in this hot Oklahoma heat.


You anywhere near OKC? I would be happy to answer any questions you have. My phone number is on the site.
Jay
_________________
OkieJay
Founder of the seldom seen Touch Of Smoke BBQ team.
Back to top
View user's profile Send private message Send e-mail
redneckrampage
BBQ Fan


Joined: 26 Jan 2010
Posts: 243

PostPosted: Fri Jun 11 10 12:07 pm    Post subject: Reply with quote

when i talked to travis a couple weeks back he said they use 2 6" pipes from the cook tank to the firebox, .125 wall, im working on a 280 fuel oil barrell dp clone now
_________________
Char Griller ...for now
in the works...a uds and trailer smoker
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Sat Jun 12 10 3:19 am    Post subject: Reply with quote

How about a picture of the air intake on the firebox. Anybody got something like that?
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
k.a.m.
BBQ Mega Star


Joined: 12 Dec 2007
Posts: 26011
Location: Southeast Texas.

PostPosted: Sat Jun 12 10 7:37 pm    Post subject: Reply with quote

watchado, here is a link to some pics that might help.
http://public.fotki.com/winstons/diamondplate_produc/
_________________
Always remember slow and steady wins the race.

Hybrid Cooker
Back to top
View user's profile Send private message
OkieJay
BBQ Super Pro


Joined: 04 Aug 2005
Posts: 1027
Location: Oklahoma City area

PostPosted: Sat Jun 12 10 11:02 pm    Post subject: Reply with quote

I have added more pictures to the www.DiamondPlatePits.com website, but I do not have a good pic of the firebox intake. I would take one for you, but I no longer have an classic style DPP in stock. If you have a specific question, give me a call and I will be happy to help.
My phone number is on the website.
Jay
_________________
OkieJay
Founder of the seldom seen Touch Of Smoke BBQ team.
Back to top
View user's profile Send private message Send e-mail
tfair



Joined: 10 May 2009
Posts: 18
Location: Northern MN

PostPosted: Sat Jun 12 10 11:16 pm    Post subject: Reply with quote

My DP Clone, made from a fuel tank, has 2- 6" pipes from the firebox to the smoker, and 2 - 4" stacks, all four are dampered. The air intake on the firebox is 3 - 3" holes at 7 o'clock on the front side of the firebox with a slider plate w/ 3 holes for adjustibility. I almost always run the air wide open and control the temps with the amount of wood.

Here's a link to a thread with a few pics-sounds like you're on the right track, you picked a great design to copy.

http://www.thesmokering.com/forum/viewtopic.php?t=33297&highlight=
Back to top
View user's profile Send private message
bigjoe
BBQ Pro


Joined: 05 Jul 2008
Posts: 849
Location: Parma Hts, OH

PostPosted: Sun Jun 13 10 6:40 am    Post subject: Reply with quote

I have 4-4" pipes from my firebox to the cooker. Also used 2-5" truck exhaust tubes for my stacks.







I have 2-5"x5" holes for the intake...



Still working on heat regulation... Embarassed
_________________
LIAR #8...where are you???
HERE I IS!!!


I'm the lucky one. My wife married the idiot.

WEBER 'One Touch' Gold 22.5"
Robo-Smoker - upright
'The Mutt' - DPP Clone
UDS...'Trinity'
Back to top
View user's profile Send private message Send e-mail
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Sun Jun 13 10 10:48 pm    Post subject: Reply with quote

Thanks guys. I'll try to get some pics up today of the progress so far. I've only had a couple evening to work on it.
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Sun Jun 13 10 11:06 pm    Post subject: Reply with quote

Can anyone give me a length say from axle to ball hitch?
_________________
Don't talk smack to me if you can't spell.

Large Big Green Egg
Weber Kettle
250 gallon offset smoker, LP tank
Charmglow gasser
http://www.thesmokering.com/forum/viewtopic.php?t=40883
Back to top
View user's profile Send private message
watchado
BBQ Fan


Joined: 16 Jan 2009
Posts: 207
Location: Oklahoma

PostPosted: Tue Jun 15 10 5:22 am    Post subject: Pics Reply with quote

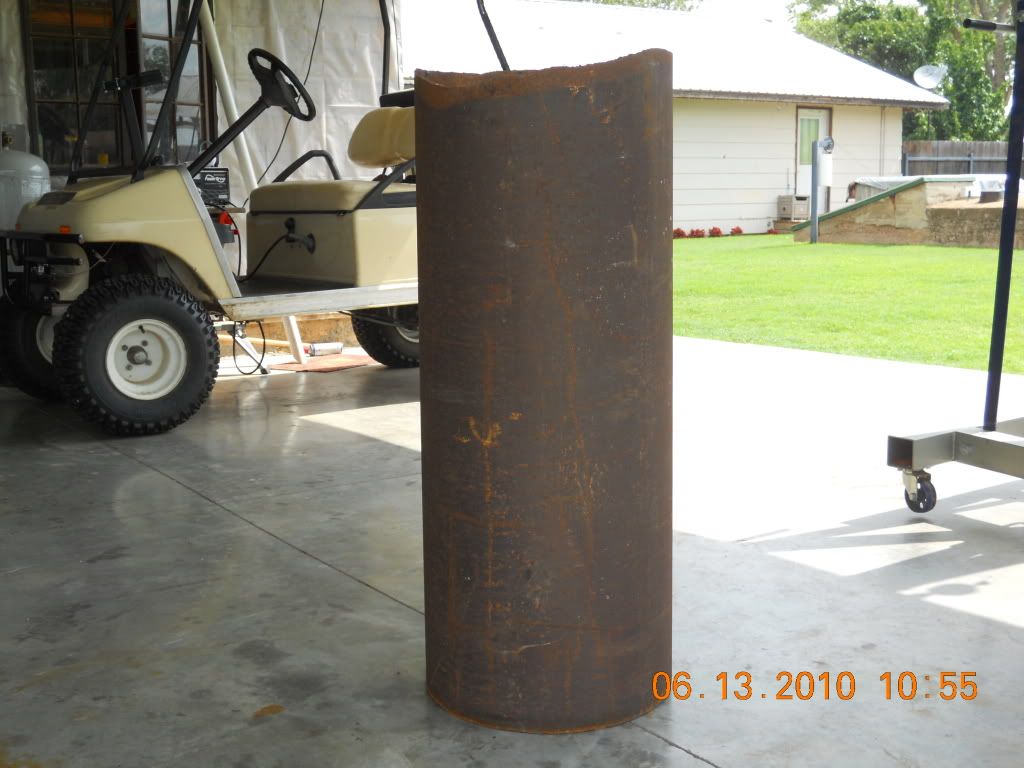

Cutting off the legs

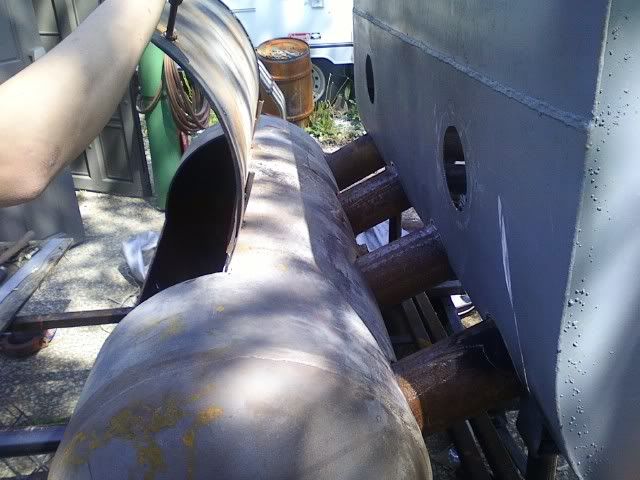

Upright

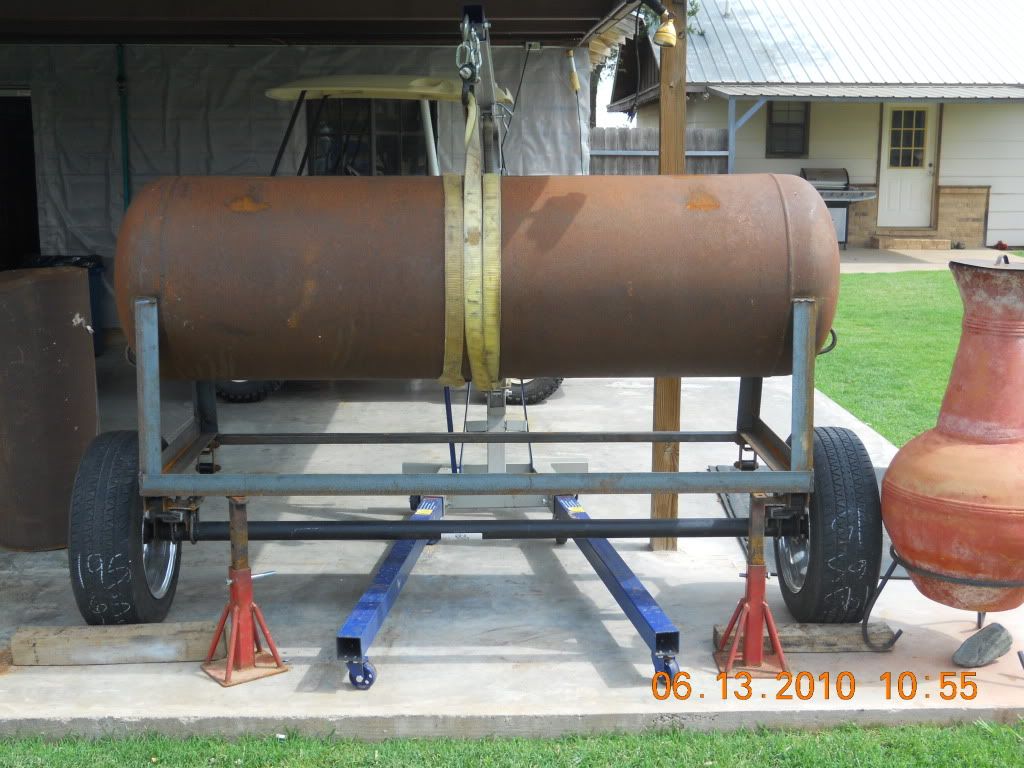

Another angle

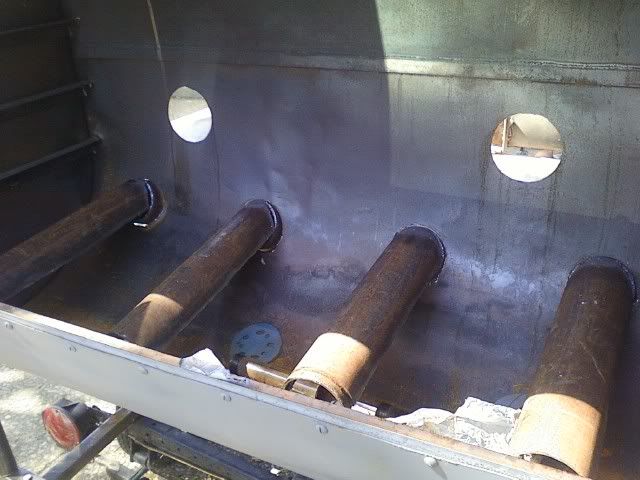

Firebox
