We had to take a break from the smoker for a week or so but we're back on it now. We finished up the firebox with the door and vents and the door latch. We still need to put some kind of latch for the sliding vent door. We expect to be quing by this holiday weekend.

Thanks for looking
Mike and Dave

We made some wood templets for the door and vent plate to use with the plasma cutter.




We decided to make a sliding type of air inlet vent. Welded some rails on the sides and slid the plate in.

Welded angle iron inside the box and put a heavy duty piece of expanded metal in.

Pictures of the door latch, air vents and sliding plate that needs a latch. The door latch will be ground and shaped so that it looks a little more desirable.



Here's the grate and tuning plates. Haven't done a fire yet, so dont know what size they will be.

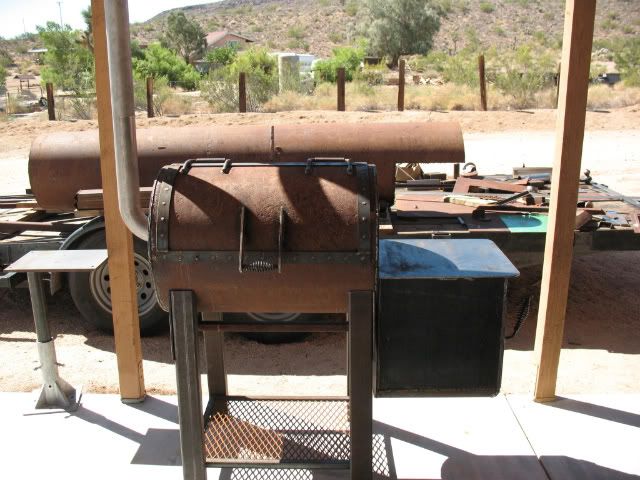

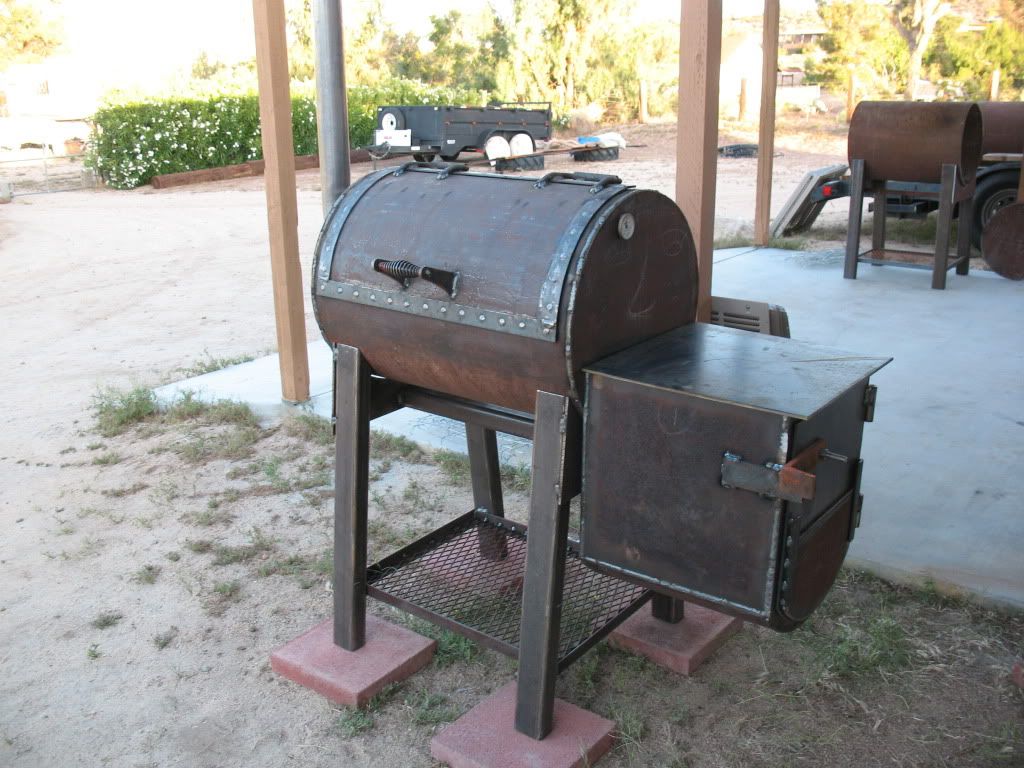

This is pretty much the complete unit. We'll build a test fire in a day or two.

[killswitch505]

glad to see the update also see my pit in the background just let me know when shes ready for pick up
_________________
Club Disco

[joshsheff1]

Looking sharp!
_________________
SLBS BOD
SLBS CBJ
KCBS CBJ
Big Green Egg
Reverse flow smoker

[RLane22]

This is a great buildup good job. keep them pics a coming
_________________
Randy

Slow Down and take the time to enjoy the good things in life.

1st build

2nd build

[k.a.m.]

DesertPits, that is an awesome looking cooker right there. Y'all are doing some nice work right there.
The sawtooth that I use on my vertical doors would work well on your intake. I have used it on several builds and it works really well.
Here is a pic if your interested.

_________________
Always remember slow and steady wins the race.

Hybrid Cooker

[DesertPits]

Well finaly got to cook something. We did 2 tri tips to check things out. Everything was on sale this wkeekend. We had a semi hard time getting up to full cooking temp. Started out at 175 and had to build to appx 250. Took about 1.5 hrs to get to temp and about 3.5+ hrs to cook 2 tri tips.
Thanks for looking

Mike and Dave

some pics of the end result

[daddywoofdawg]

1.5hrs to get to temp sounds about right for that much heavy steel.I hope you made templates for your legs and such I'm sure other will want one too,since you have the extra pipe.
_________________
Good BBQ is all smoke and beers!
The Dawghouse Custom vertical Gasser
Custom Made offset smoker
Char grill smoker
Weber kettle

[Wreckless]

The rounded bottom on the firebox is Grade A+. Not much compares to taking the extra step to do something that sets your pit apart from the norm.
_________________
Backyarder
Smoker Grill
Trailer Rig

[glenoweth]

Nice looking smoker! i wish i knew how to make one =)
And the tri tip looks soooo good. I have not had the chance to cook a tri tip yet I hear they are hard not to dry out. any tips ?
_________________
you can cage an animal, but you can't take away the rage!

[PowayBonnie]

This is an amazing build and I love the photos ...now I'm HUNGRY!! ...gotta go smoke a tri-tip, or a couple butts!!

[RYAN]

Good looking build there! looks like you got a second one in the works in the background.

[maddixieman74]

[mtrammel]

Great job guys on both the cooker and the cook! Man that smoke ring looks great. And doesnt it taste better off your own cooker...
_________________
Chargriller Offset
Bass Pro XPS propane 60k BTU Grill
Stainless Fish Fryer
UDS

[Jim_K]

Beautiful job!!!!!!!!!!!
That Tri Tip looks great, nice smoke ring on it!

[roscoe1960]

DesertPits, really like the design. That is one sharp looking pit . And the tri tips look awsome.
_________________
I'm not 50 yrs. old I'm 21 with 29 yrs. experience.
http://thesmokering.com/forum/viewtopic.php?t=38513

[Tom C]

Nice work guys on the smoker and the cook! You really put some nice touches on the smoker and the tri's looked out of this world good.
_________________
Homemade offset smoker 24"x48"
Charbroil CB900 grill

[DesertPits]

Hi again everyone. Me (mike) and Dave have been working on our second unit for the past couple of months. We've had about a dozen smokes on the first unit. We had to do a little figuring with the tuning plates, big/little fire, outside temp/wind etc. Anyway we ate everything we cooked.

We're onto our second unit now (oh nooo #2) which is the same unit but with some modifications. We added a baffle inside the fire box to help direct the heat into the smoke chamber, redesigned the smoke chamber handle ( the higher you lifted the old handle the more your wrist touched the hot door), Dave redesigned the firebox door with a new latch and new air inlet system, added handle to cooking grate, Dave also made some round flanges (he has a lathe and mill in his garage, must be nice...lol ) for the exhaust stack which is welded on the inside then ground smooth then bolted to the smoke chamber, also after running into the firebox corners several times we rounded the corners. We have not built a fire in this unit yet so don't know how the baffle will work. FYI....I have an infrared point and shoot thermometer and the firebox gets between 400-540 degrees on the outside.
I told photobucket to resize to 640x480 but some are still big, I'll keep working on it.

Thanks for looking
Mike and Dave

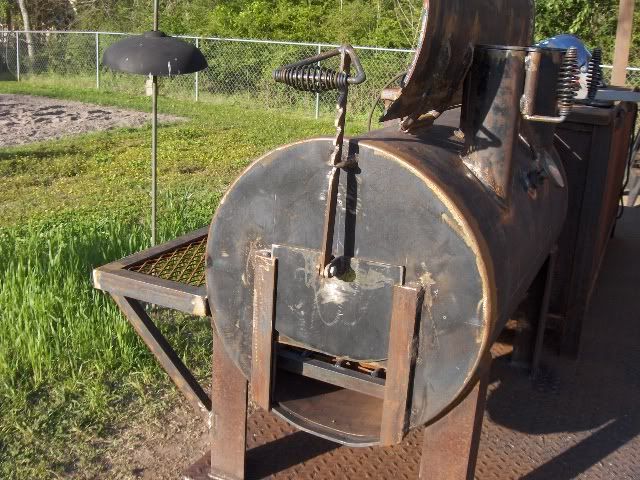

This shows the baffle and top plate of the firebox
