New Build - Start to finish Electric w/lots of pictures(51)

hvac81

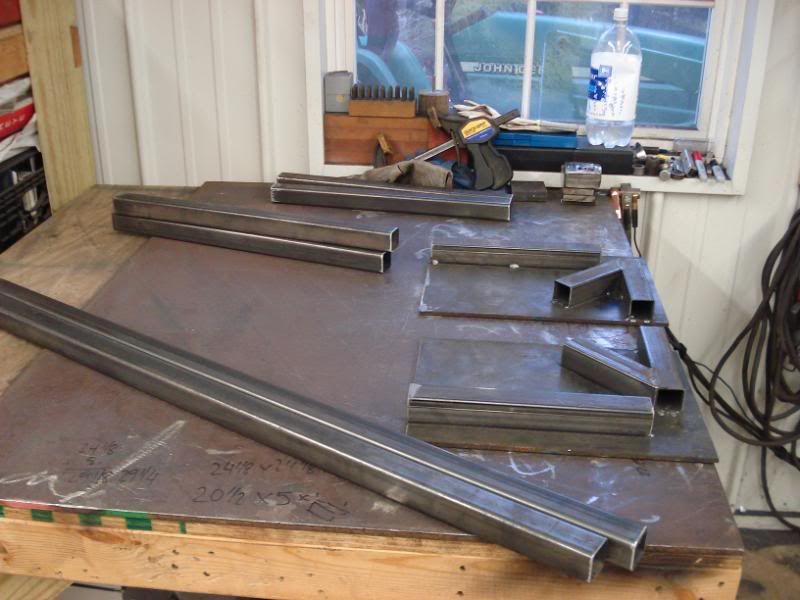

Starting the Build

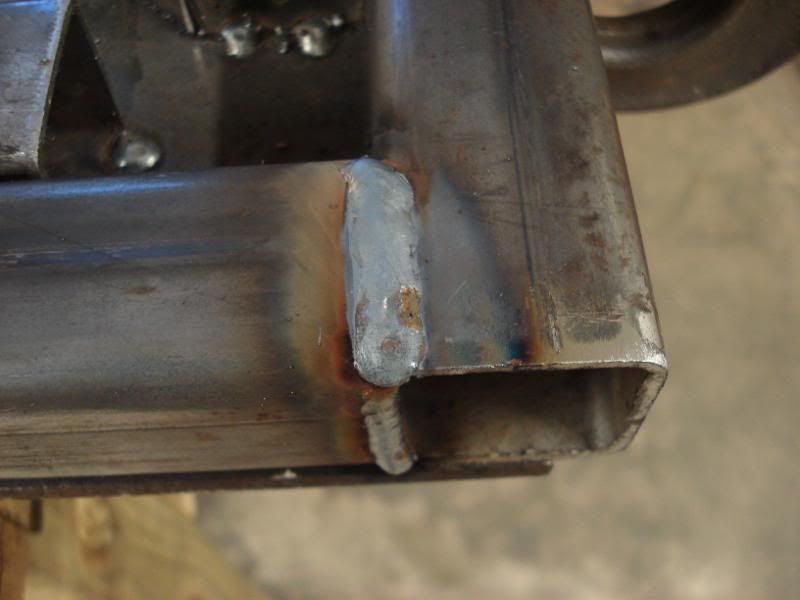

Welded corner

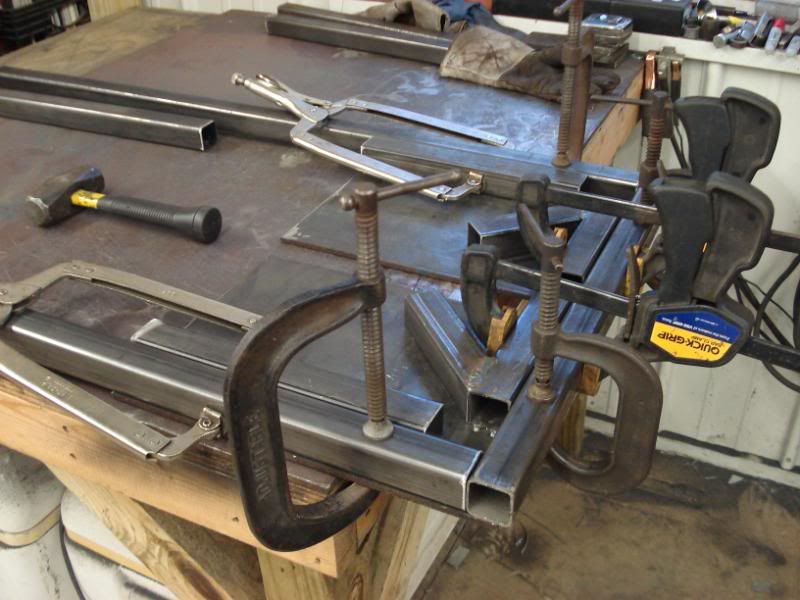

Welding Jig for true angles

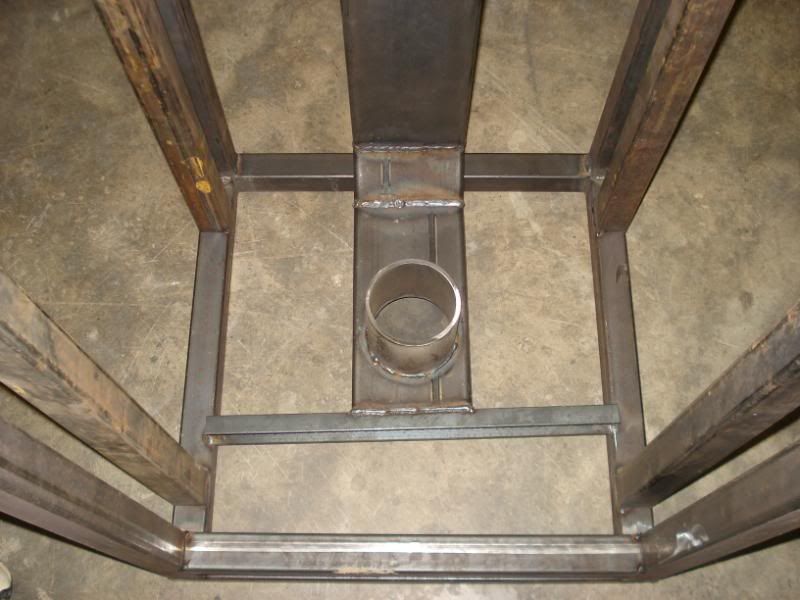

Frame assembled and Welded, includes Fan housing and Discharge Tube

More of the same

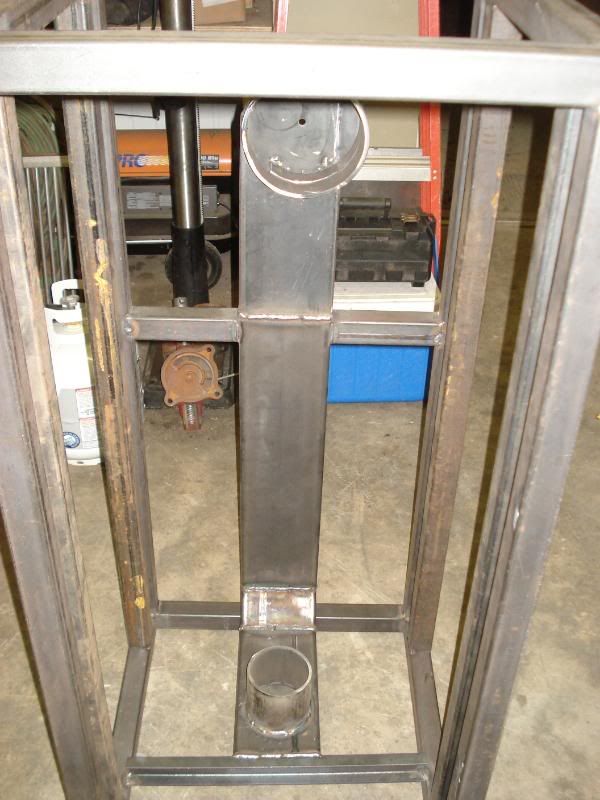

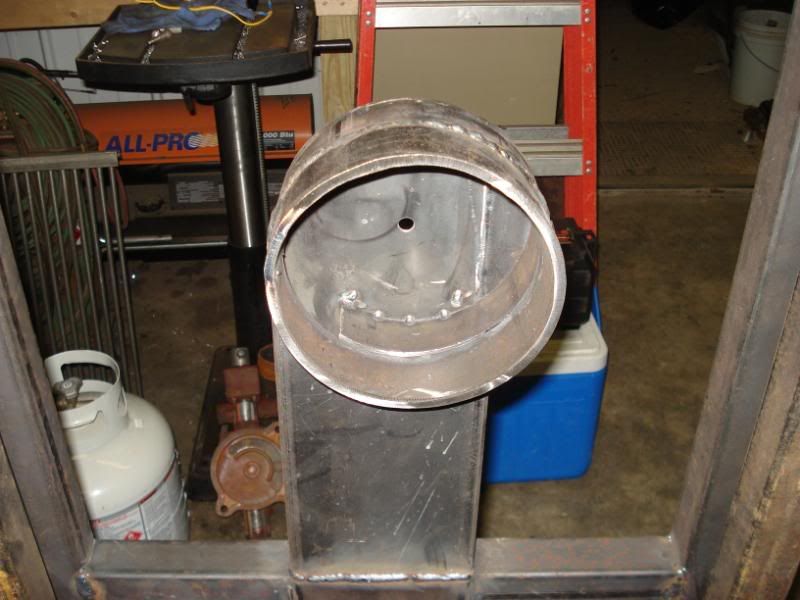

Fan housing close up

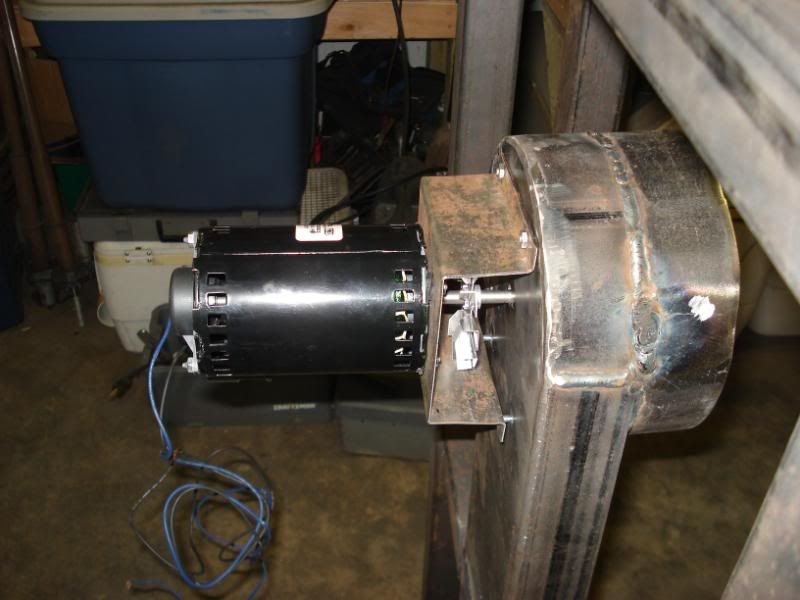

Fan motor and Cooling fan mounted

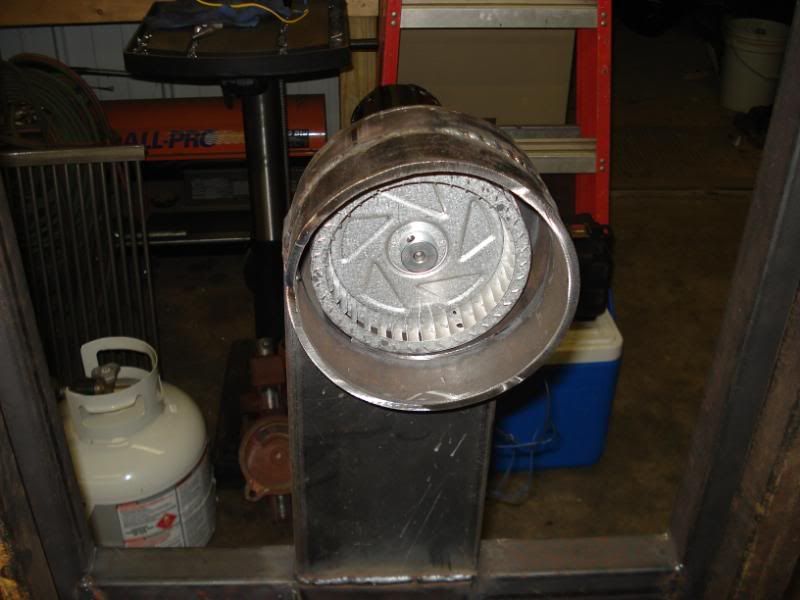

Fan Impeller installed

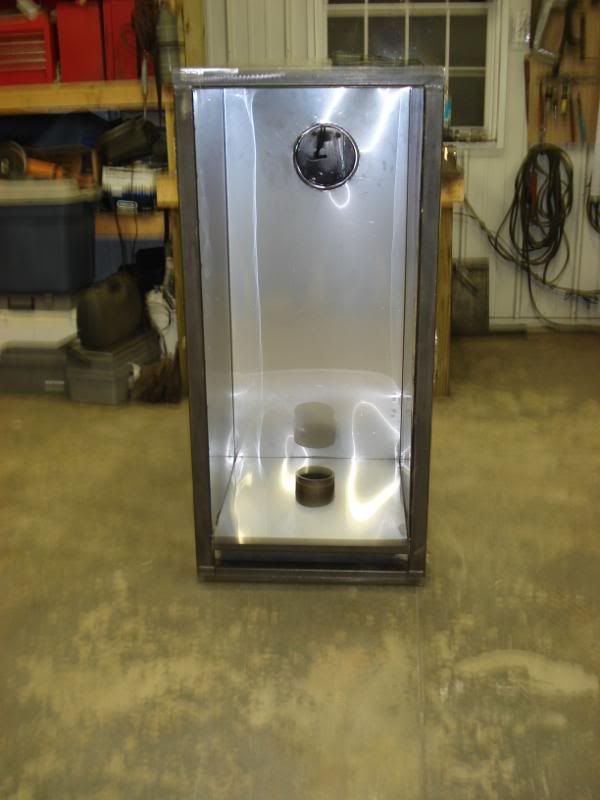

Stainless Liner installed

More of the same

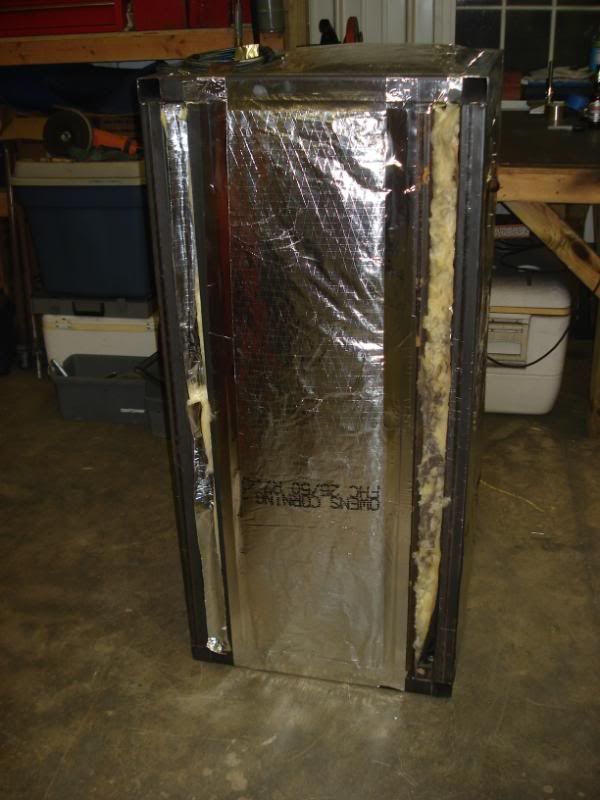

Insulating

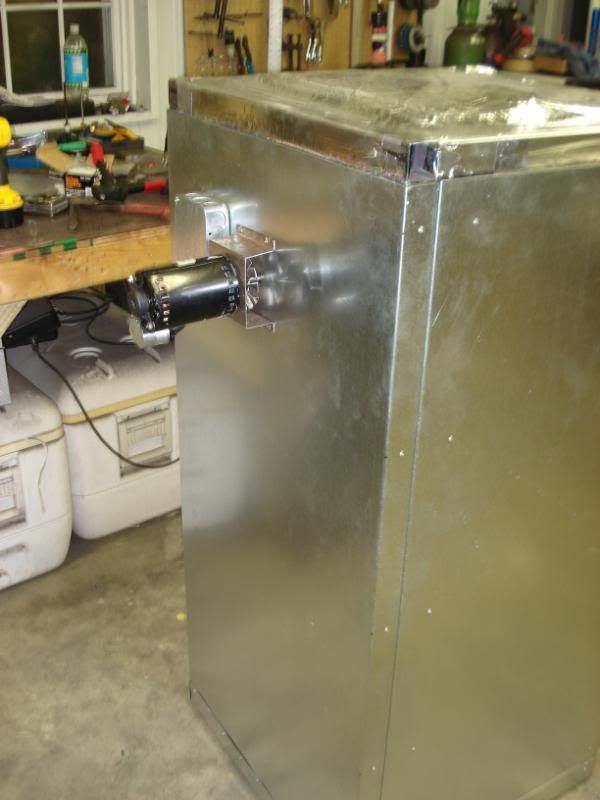

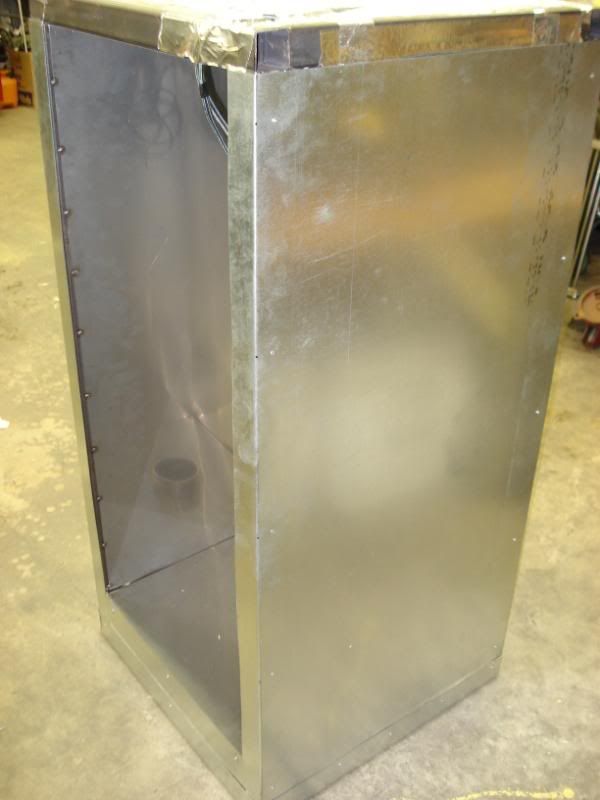

Left side Wrapper

Rear Wrapper

Right side Wrapper

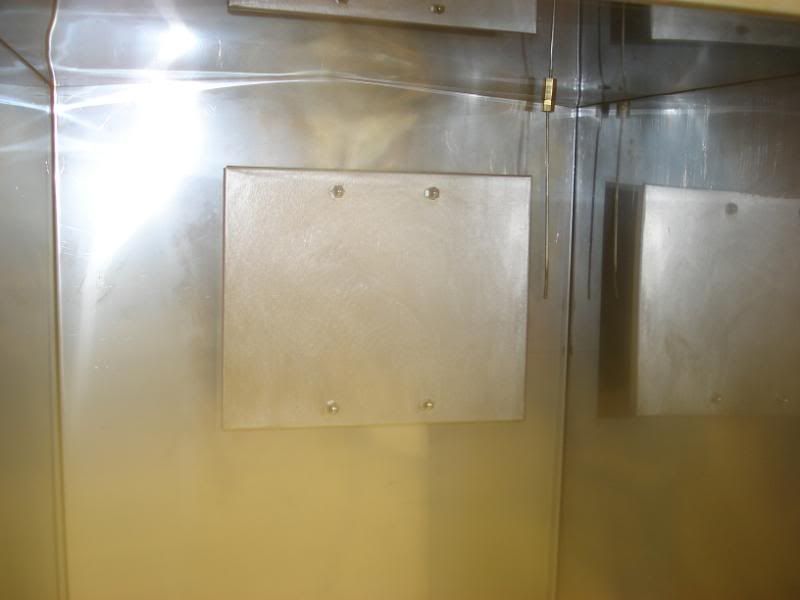

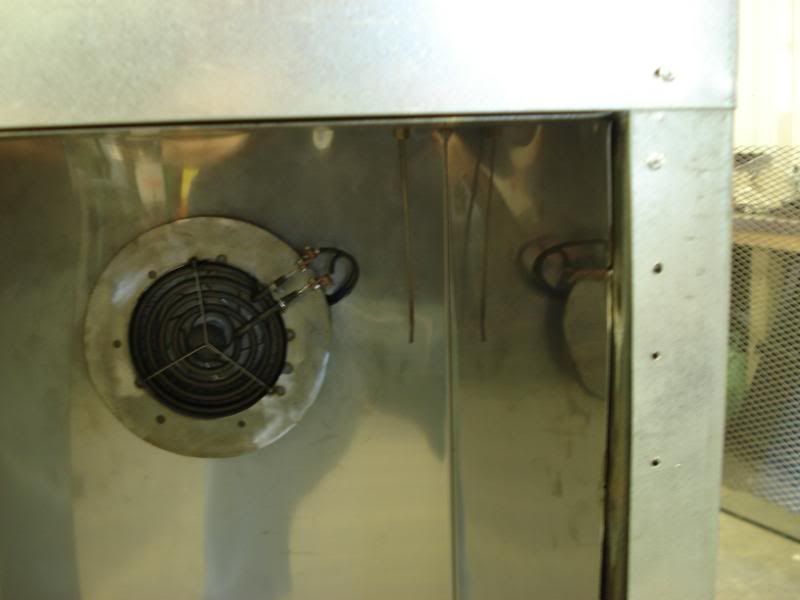

Heating element and support inserted, fitting

More of the same

Heating element trim

Door Frame

Door Inside Stainless

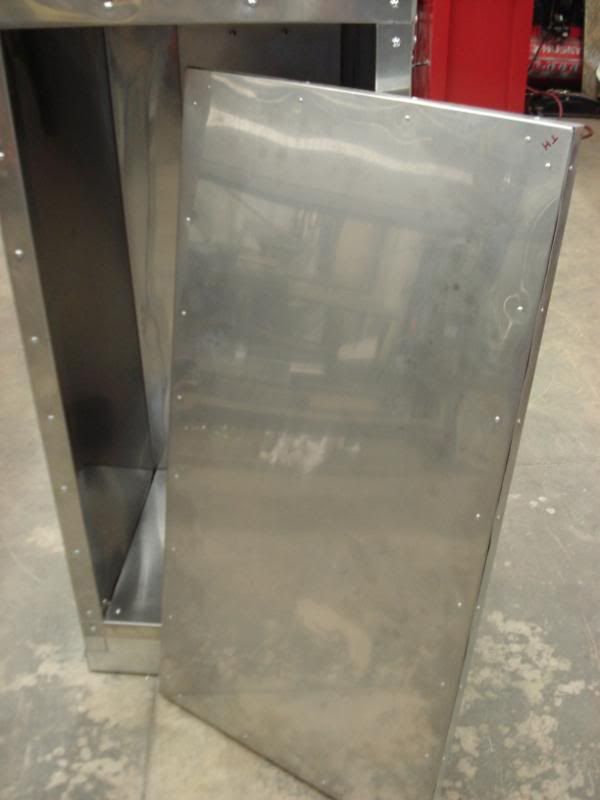

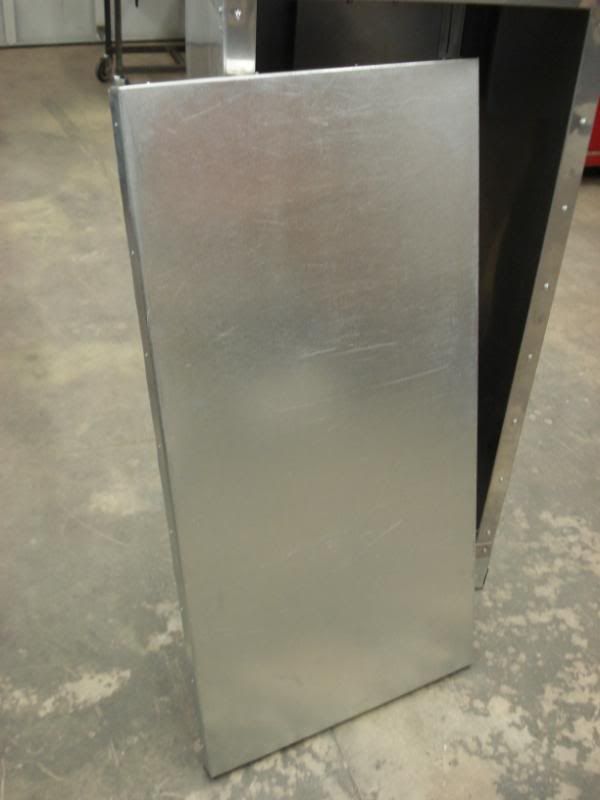

Door Outside Wrapper

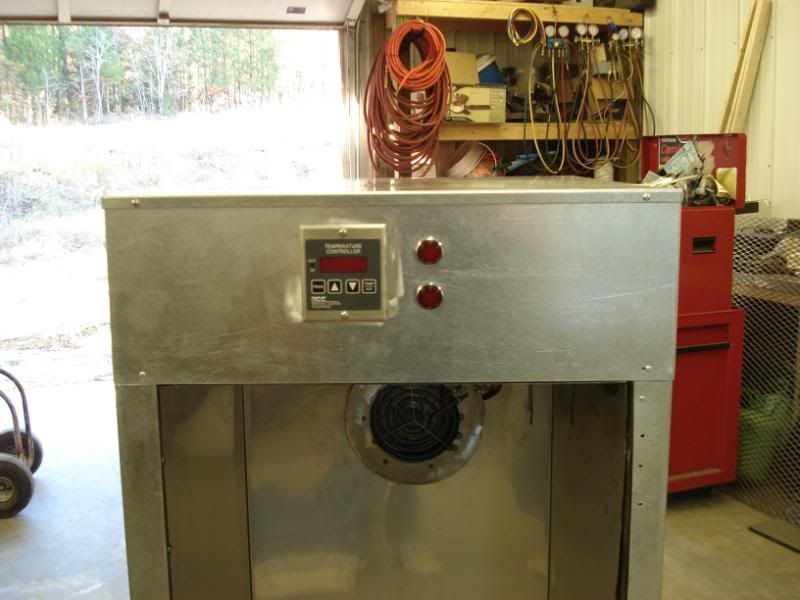

Control Cabinet including Controls , Mounted

More of the same

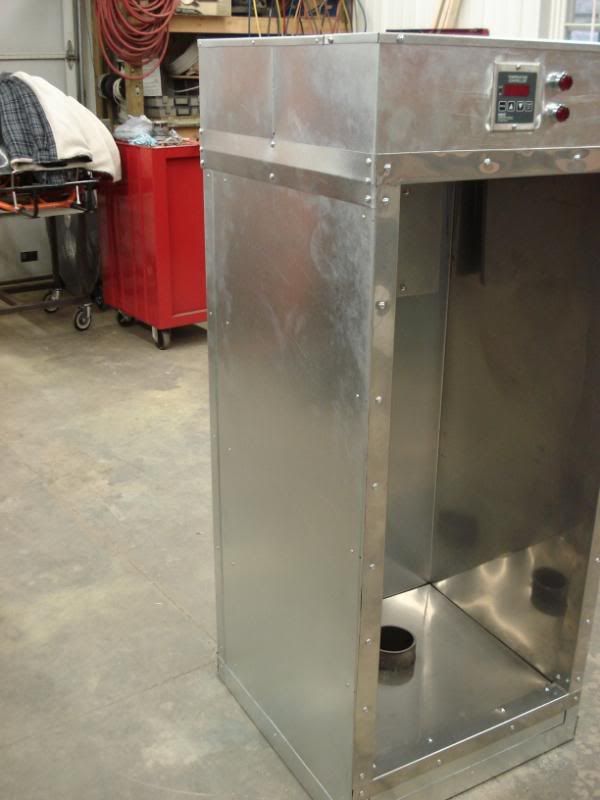

Cabinet opening Trimmed in Stainless

Trim for control cabinet seam

More of the same

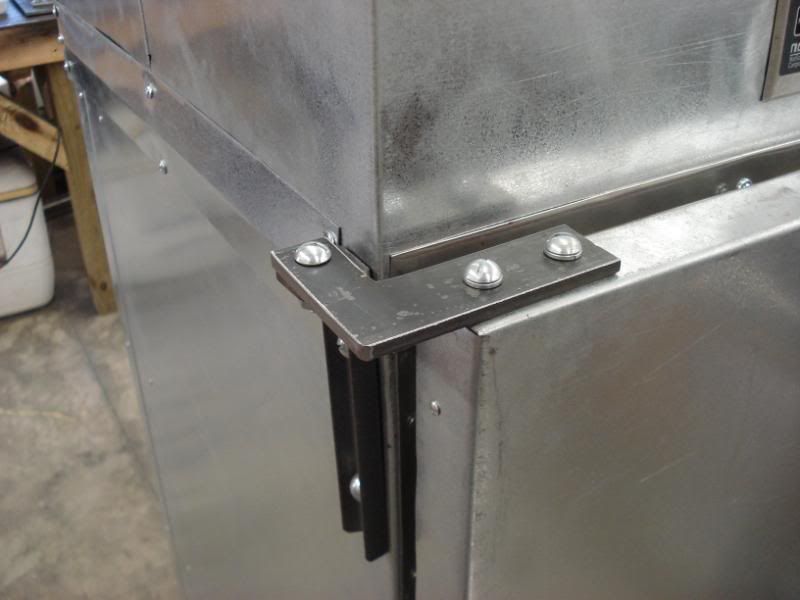

Top hinge

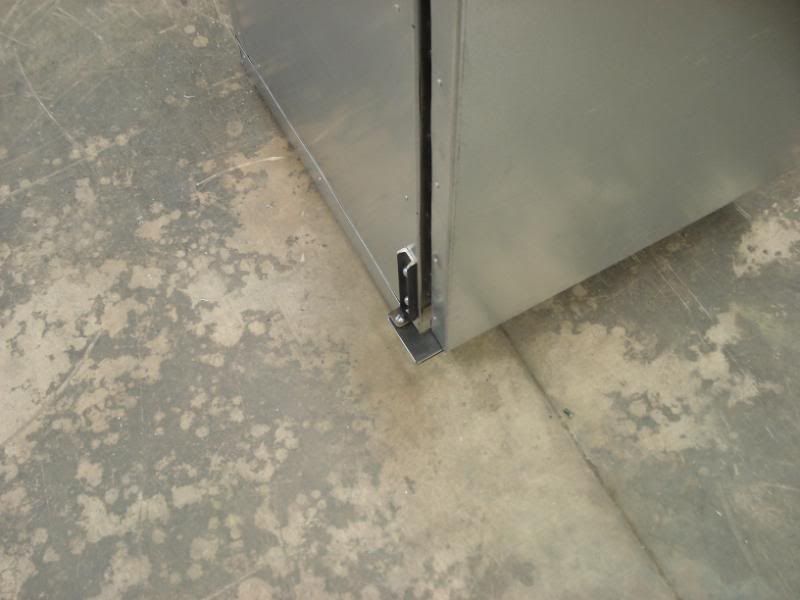

Bottom hinge

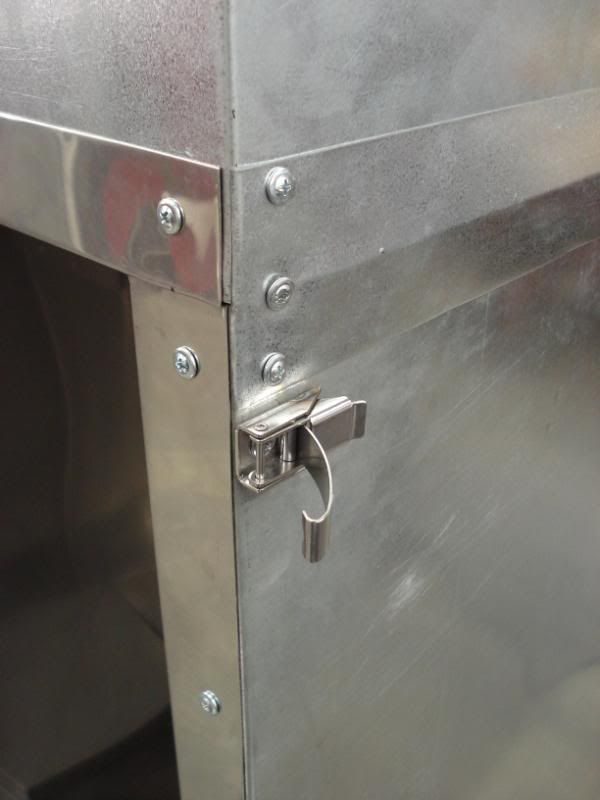

Top door latch

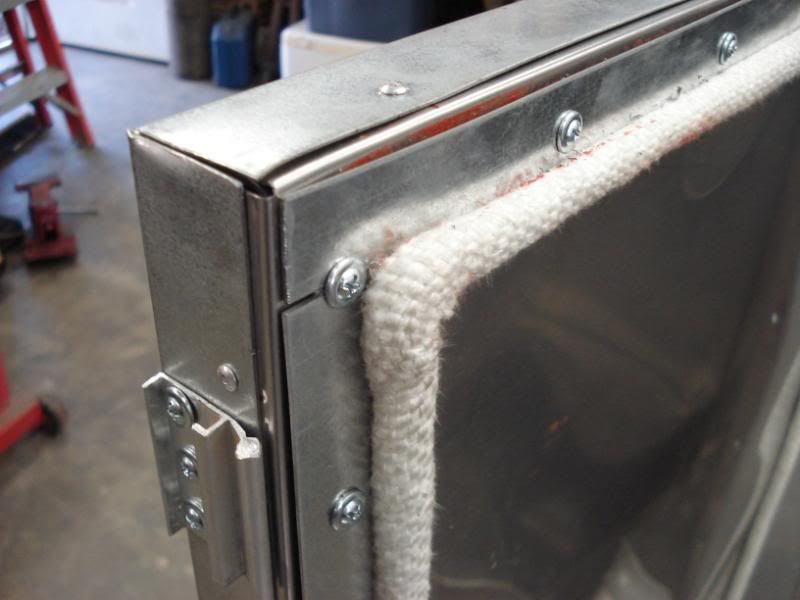

Door seal (Tadpole seal, Fiberglass)

Close up

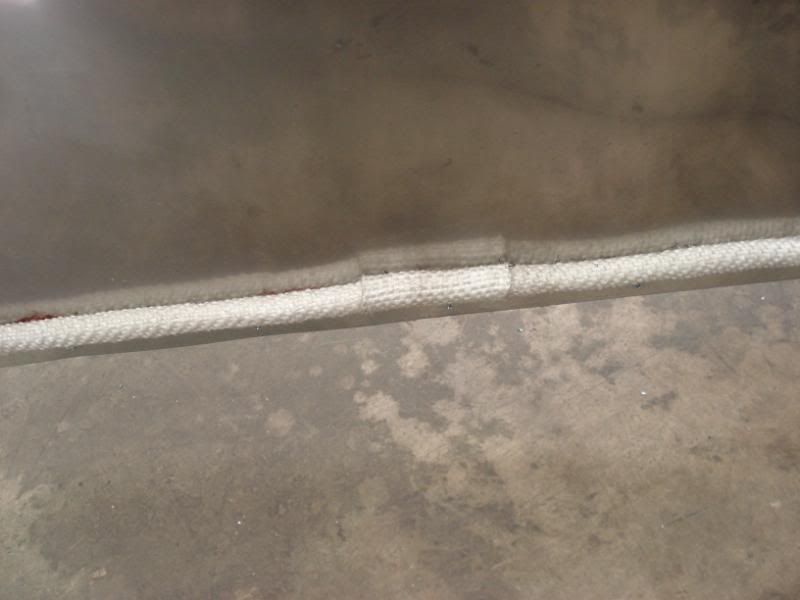

Splice wrap on bottom of door, seal

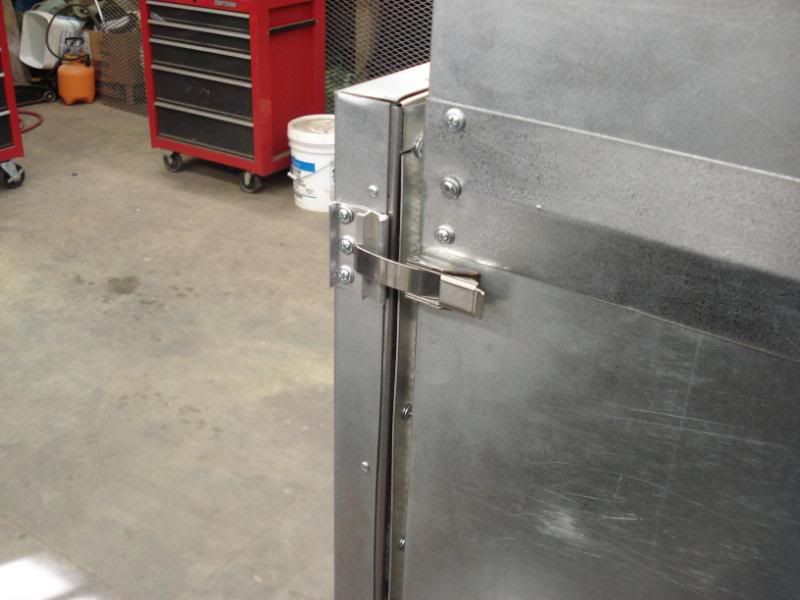

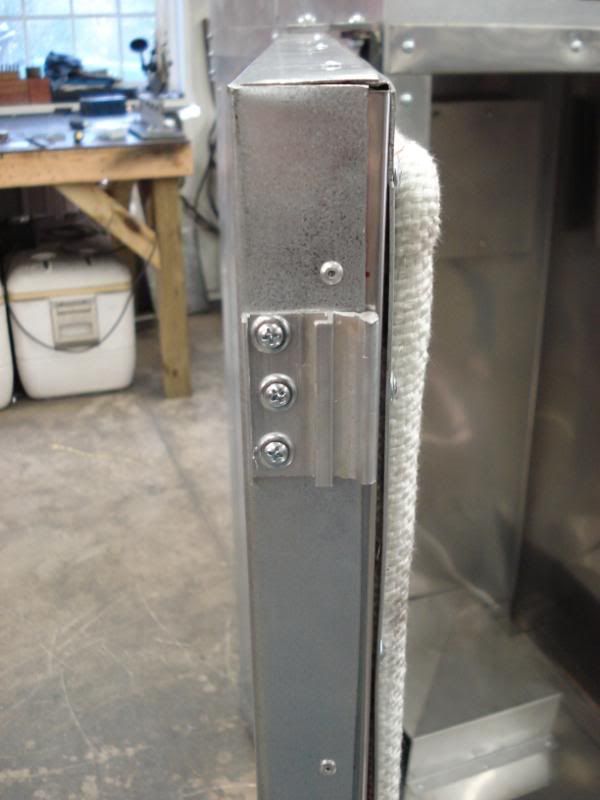

Top door latch

Door catch

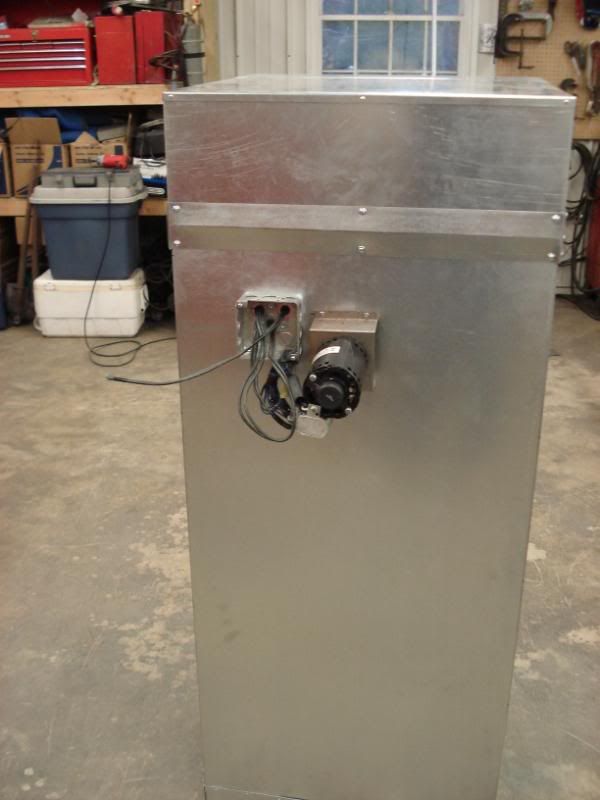

Electric done, SO cable

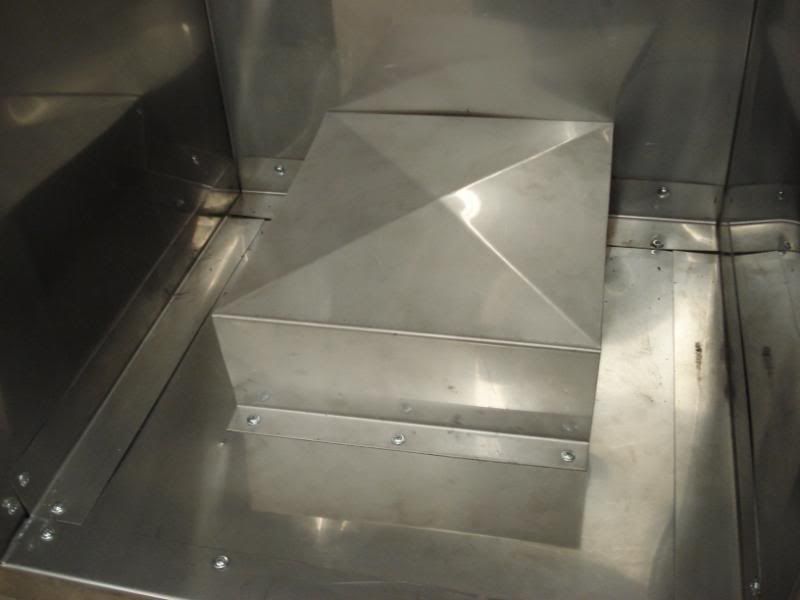

Fan discharge trim, stainless

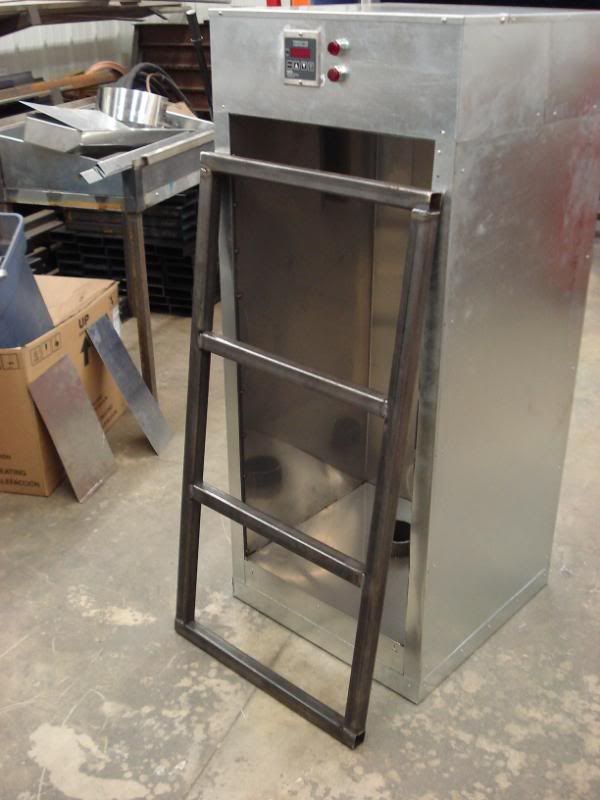

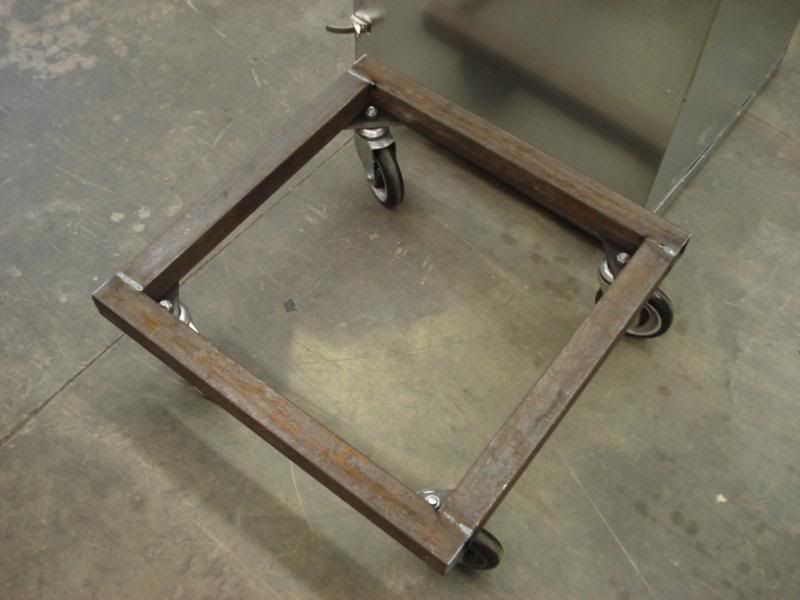

Dolly

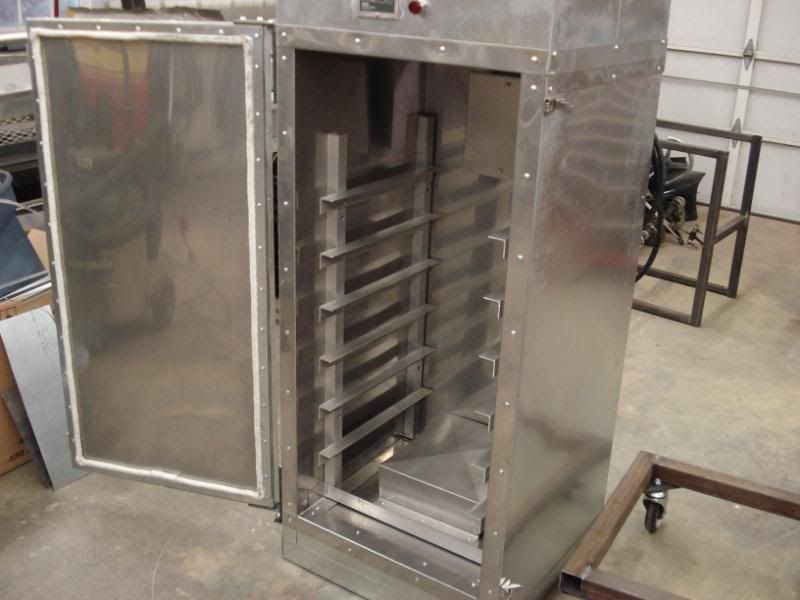

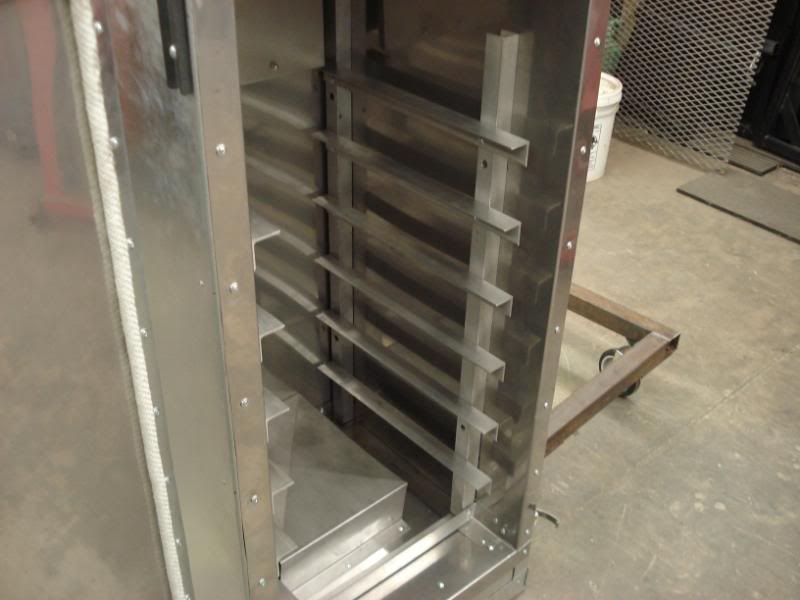

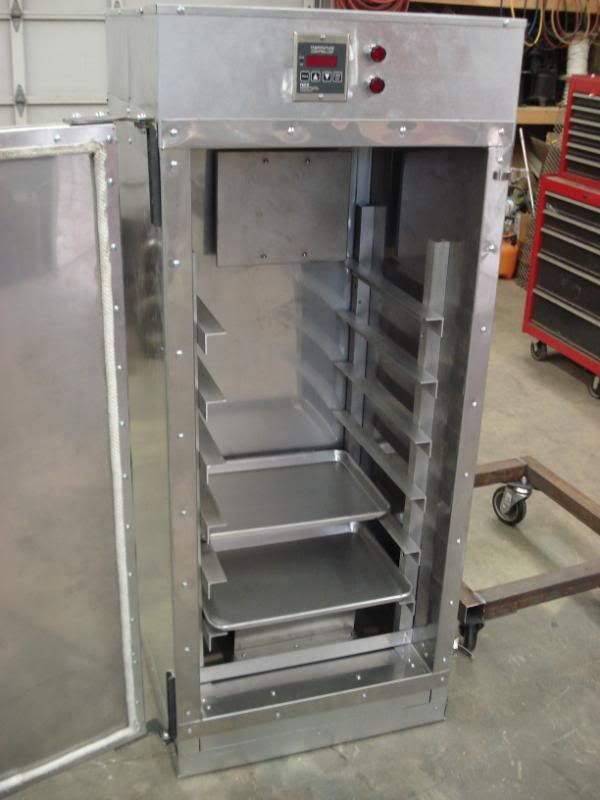

Shelf supports, right

Shelf supports, left

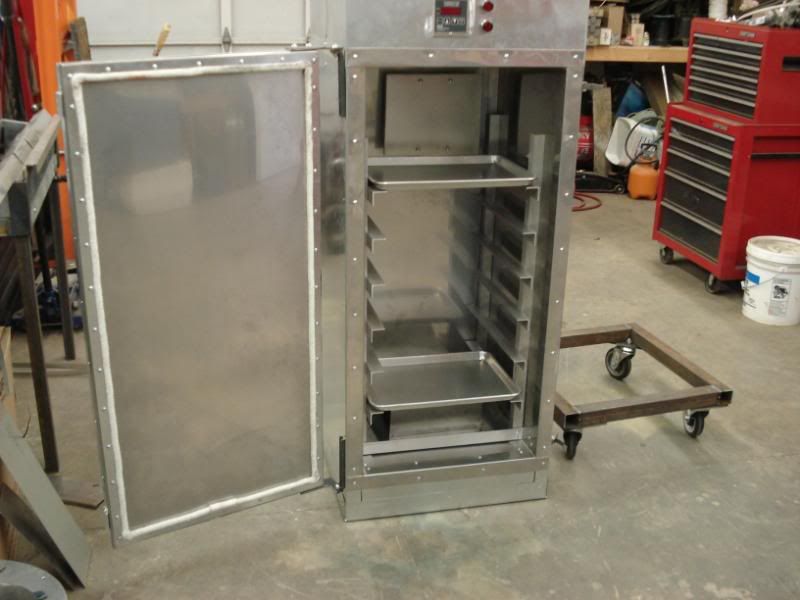

Shelf supports , front view

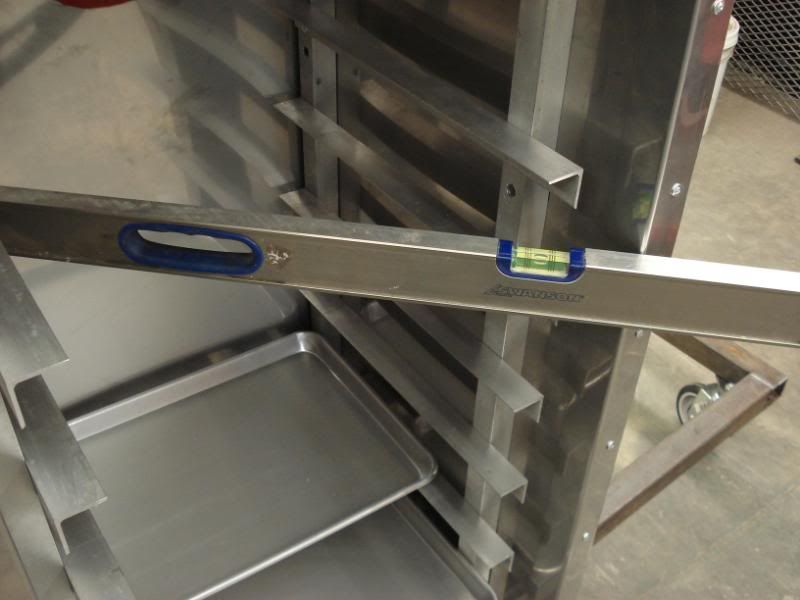

All level

More of the same

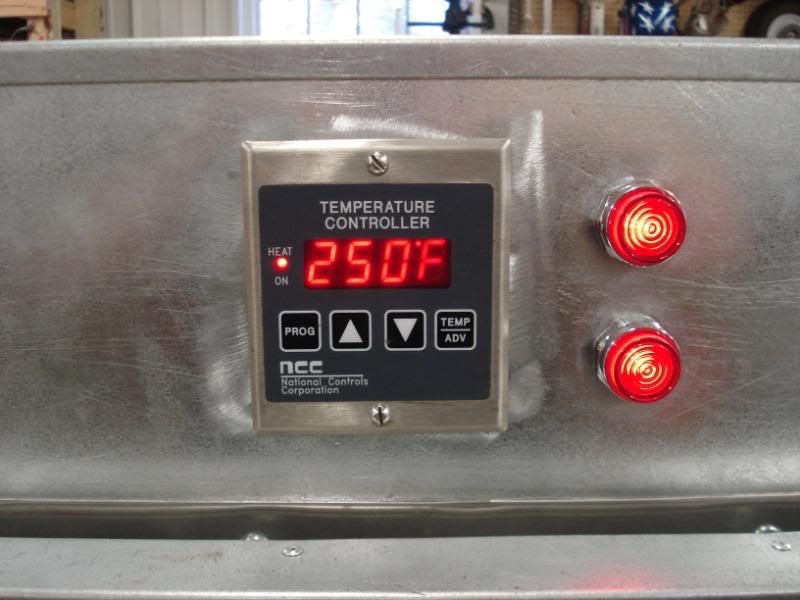

Control set for Degrees C

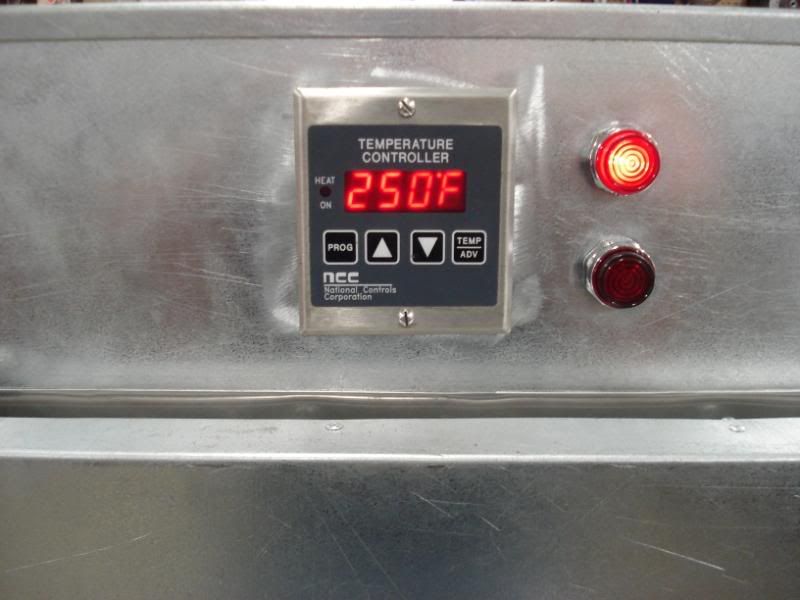

Control Satisfied at 250def fan only (top lamp).

Control calling for heat 250def fan and heat (both lamps lit)

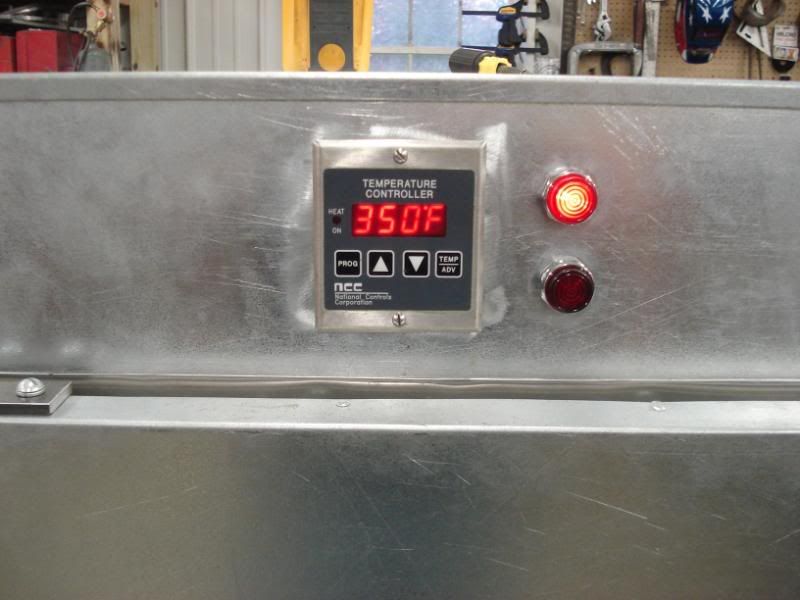

350def and satisfied

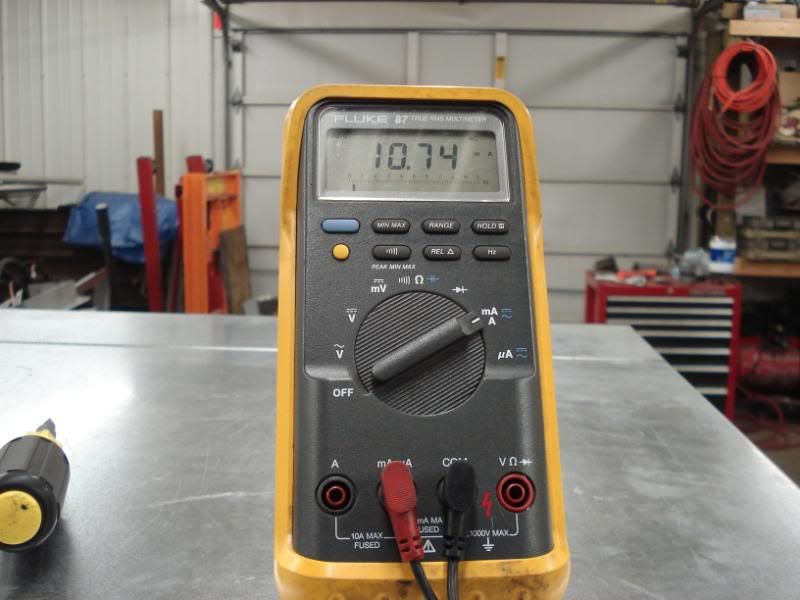

Amp draw, fan only

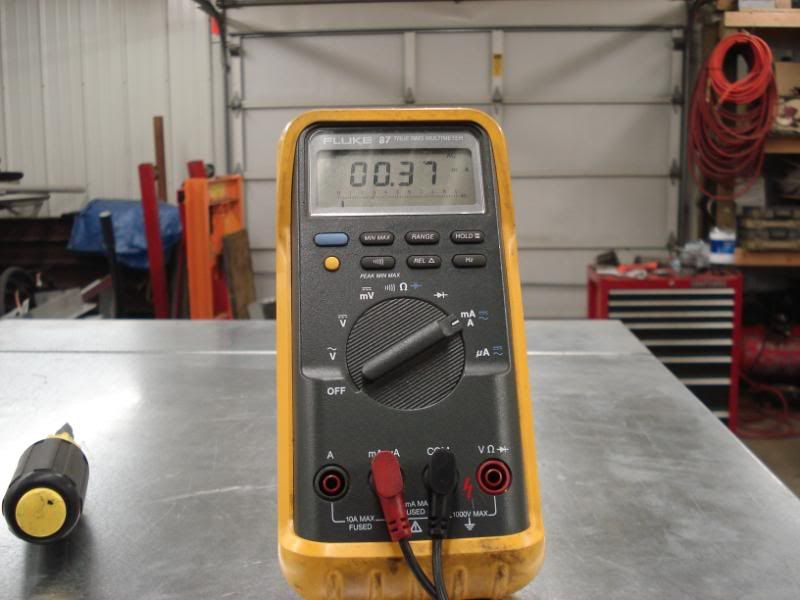

Amp draw fan and heat

Tony · Posted: Nov 23 2009 Post subject:

Dennis:

Please allow me to be the first to complement Ya'll on a Fantastic
and fascinating build of such unimaginable proportions! Cool

Without further blowing your head off in patronizing Your works ( Razz

)

Thank You for sharing your knowledge and skills with us here on The Smoke Ring Forum!

So Cool! Cool

Best Regards,

Tony Very Happy

BluzQue · Posted: Nov 23 2009 Post subject:

AWESOME fabrication & design you put together Dennis Wink

Can't wait to see the fantastic smoked meats this baby is goin'
to produce.
Thanks for the detailed pics of your build!

Cool

_________________
" A Touch of Hickory and a Taste of the Blues "

GOOD MUSIC GOOD FOOD GOOD BEER GREAT FRIENDS

OLE BOY OFFSET SMOKER
WEBER PERFORMER GRILL
WHISKEY BARREL SMOKER

Cranky Buzzard · Posted: Nov 23 2009 Post subject:

AB SO LUTELY AMAZING WORK!!!

That is a work of art in my opinion!

I was considering using some controls on my upcoming vertical, but I don't think I'll be able to come close to this build! Great work!

I might also add that you have great taste in DVOMs, IMO, the Fluke 87 is the best meter ever made.

Charlie
_________________
Cranky Buzzard BBQ FB Group

k.a.m. · Posted: Nov 23 2009 Post subject:

hvac81, That is a first class cooker build Very Happy

Awesome job my man. I look forward to seeing some smoke from this beauty. Nicely done my man Smile

_________________
Always remember slow and steady wins the race.

Hybrid Cooker

Slowsauce · Posted: Nov 23 2009 Post subject:

That is some awesome skills on that build. Enjoyed all the pics of the build Smile

_________________
in r/l
TJ

Jet_deck · Posted: Nov 23 2009 Post subject:

Yet another Top Shelf build, HVAC. Quick question. The heating element only draws 10 amps on 110V? Where do you introduce the wood element for smoke if you want it? Thanks for the ideas. Looking forward to some food pics. I missed the "exhaust", where is it, or does it even have one?

Thanks in advance.
_________________
_______________________________

Stumps Clone - Rotisserie Version
WSM
http://www.radiofreetexas.org/

Tom C · Posted: Nov 23 2009 Post subject:

Quality build all the way! Can't wait to see pictures of it at work. Cool

_________________
Homemade offset smoker 24"x48"
Charbroil CB900 grill

hvac81 · Posted: Nov 23 2009 Post subject:

Thanks,
Tony,BluzQue,Cranky Buzzard,K.A.M.,Slowsauce,Jet_Deck and Tom C.

@Jet Deck,
Heater is 10.3Amps at 240VAC (2650 Watts). I haven't made provisions yet for the Smoke or Exhaust. That will come easy enough.
For now its a "Holding Cabinet/Dehydrator/Oven".
This is mainly for when I dont have enough Meats to fill up my Propane Cooker.
But I do plan on introducing some Smoke

Hell Fire Grill · Posted: Nov 23 2009 Post subject:

That is a very well planed and built cooker you have fabricated Hvac81. What is your plan for a smoke generator? I made a cold smoke generator that can easily be built and adapted to almost any cooker.
http://www.thesmokering.com/forum/viewtopic.php?t=28314&highlight=cold+smoker

mrcustomsteel · Posted: Nov 25 2009 Post subject:

Another high tech biuld greatness. You definately kick it up a notch with the tech. Please post more pics and info.
_________________
D. Tillery
Texan transplanted in Billings, MT
www.mrcustomsteel.com

hvac81 · Posted: Nov 25 2009 Post subject:

BBQMAN · Posted: Nov 25 2009 Post subject:

Great looking build Dennis- very impressive!
_________________
BBQMAN
"I Turned A Hobby Into A Business".
Providing "IMHO" Since 2005.

hvac81 · Posted: Nov 27 2009 Post subject: Updated pictures-Jerky shelves

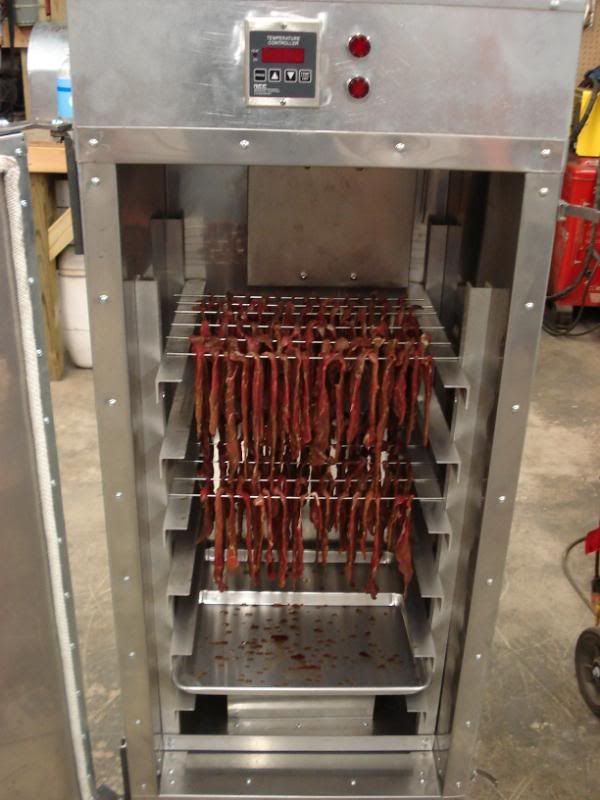

Added a bunch of expanded metal shelves and seasoned them.

Seasoned

Side view of interlock

Close up

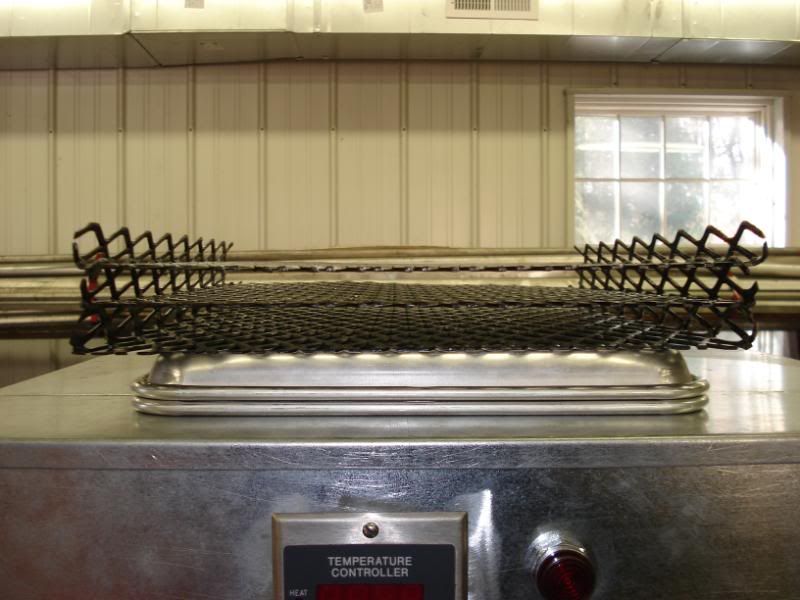

Single stacked

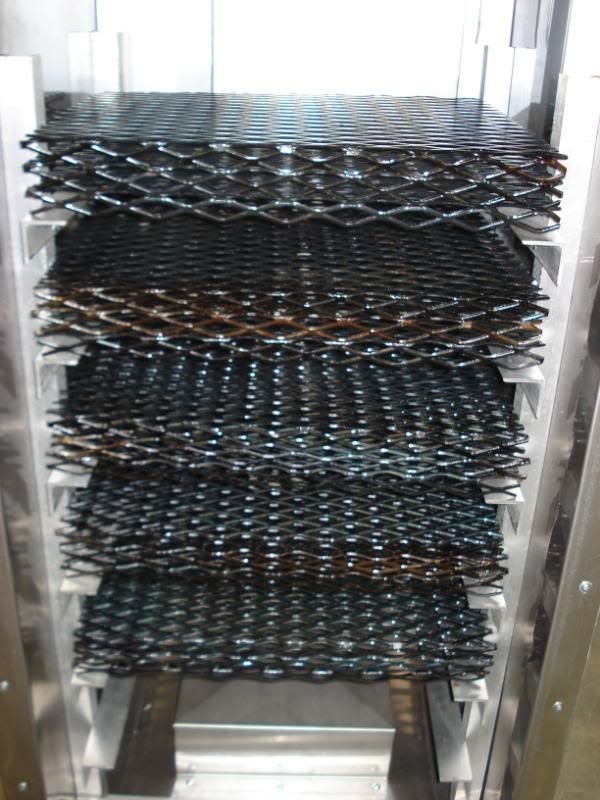

Triple stacked

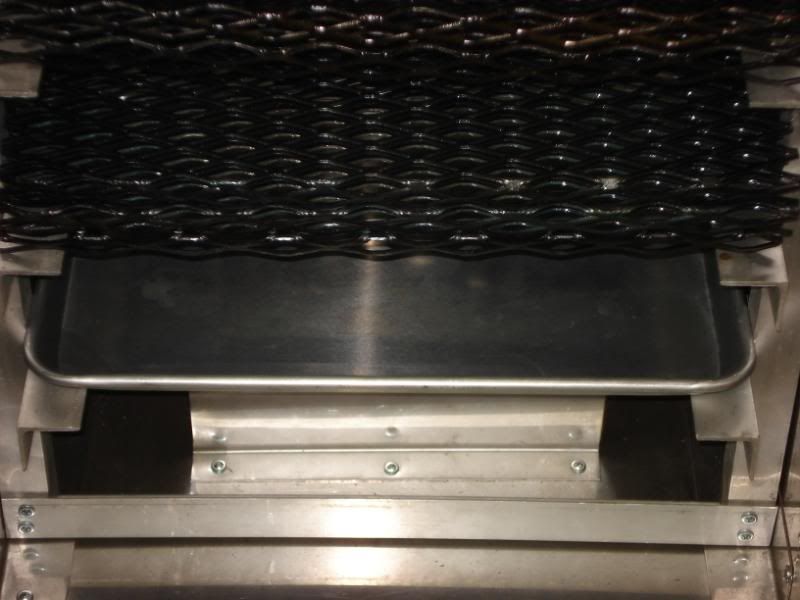

Drippings pan

Next comes the second batch of jerky-soon to follow
