Reverse flow cooker painted and first cook (4/18/10)

cody · Posted: Dec 12 2009 Post subject:

k.a.m. i would like to have the green one but i think ill keep mine lol Very Happy

ill have pics up of my new tanks tonight the tank from the other build is going to the junk yard or i might make something out of it

k.a.m. · Posted: Dec 12 2009 Post subject:

cody, looking forward to seeing the pics of your new tanks. Very Happy

_________________
Always remember slow and steady wins the race.

Hybrid Cooker

cody · Posted: Dec 21 2009 Post subject:

k.a.m. did u every get this done

k.a.m. · Posted: Dec 21 2009 Post subject:

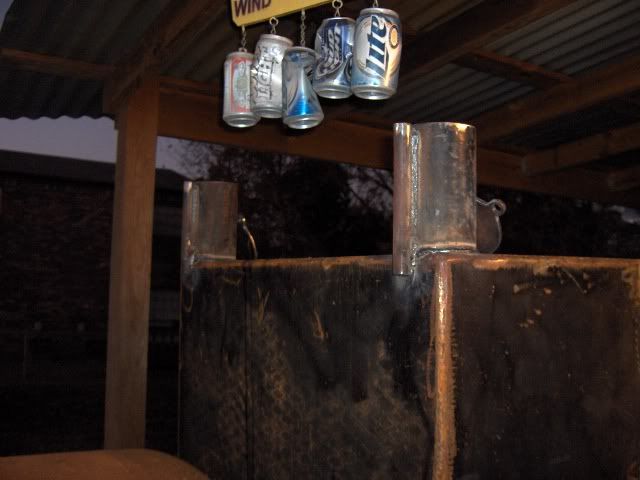

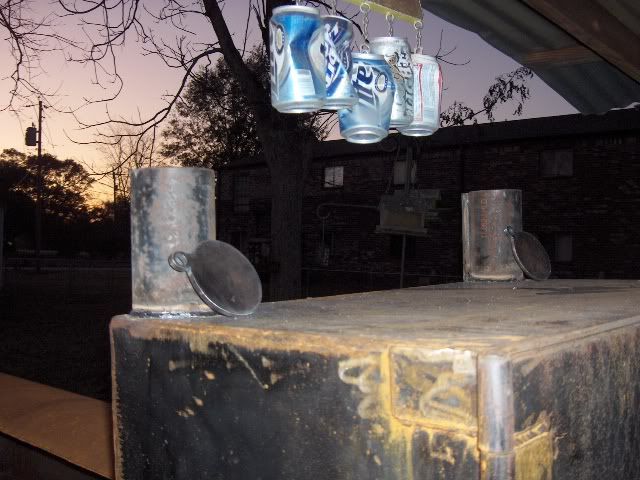

Cody, I am still plugging away at it. I had some down time, other projects came up. I had a chance to work on it some this weekend. I got the exhaust stacks on the warmer, I also made the shut off dampers for those but I am waiting on handles.

I also got one of the doors for the fire box mounted.

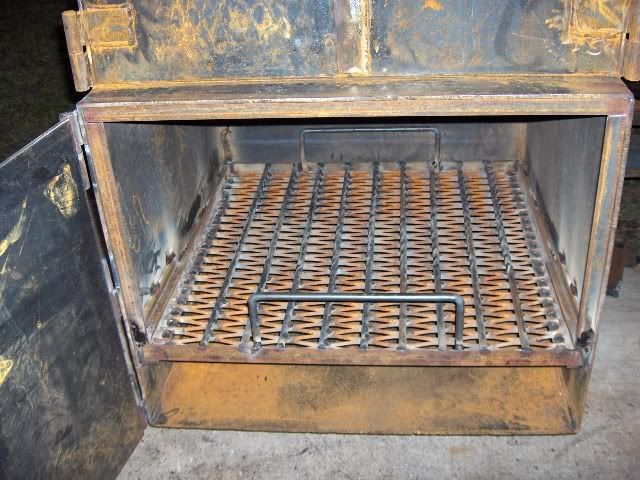

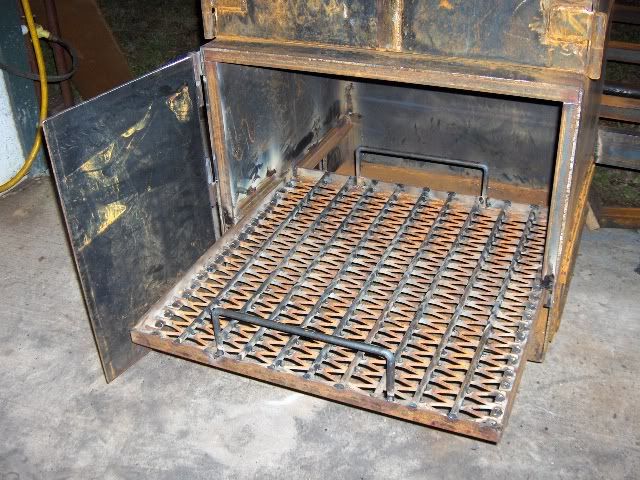

I built the coal grate and got the other intake welded out.

I mounted the latch system for the warmer but I am waiting on handles for these as well.

Then it got dark on me.

_________________
Always remember slow and steady wins the race.

Hybrid Cooker

HillbillySmoker · BBQ Pro Joined: 25 May 2008 Posts: 917 Location: WV

Looking good KAM, looking forward to seeing smoke come out of the stack. well done. Love the windchime Laughing

_________________
Patio Smoker Grill
My Smoker Grill build

whitey · Posted: Dec 21 2009 Post subject:

Kick A$$ build Kevin. Wink

That is coming along great.
Nice job.I might Have to make a road trip to see how "She" runs.
The "Big Dog" is looking good.
Whitey.
_________________
Lang 84 delux long neck chargrill.
The Lil Squealer (UDS)
My Lab is smarter than Your Honor role student!!
Chicken Throwdown Champ..2010..
Almost the Biggest Liar on the "Ring"

Wreckless · Posted: Dec 21 2009 Post subject:

Damn it. Now I have to add a warmer to my build K.A.M. That's nice.

k.a.m. · Posted: Dec 22 2009 Post subject:

Thank You Hillbilly, Very Happy

That is my shop signature Laughing

Thank You whitey, Very Happy

You know my light is always on. And bring some ducks with you Very Happy

Thank You Wreckless, Whats one more sheet of plate, You will be glad you did. Very Happy

_________________
Always remember slow and steady wins the race.

Hybrid Cooker

cody · Posted: Dec 22 2009 Post subject:

looking good k.a.m. so when are u going to start on mine lol

BigPhil32 · Posted: Dec 22 2009 Post subject:

ditto what cody said!!!! Laughing

k.a.m. · Posted: Dec 22 2009 Post subject:

Thank You cody, Very Happy

That line has not gotten any shorter yet. I just got a call yesterday for a re-build on a low boy tilt bed the list gets longer Laughing

Thank You BigPhil32, Very Happy

Your name is on the list right behind cody. Smile

_________________
Always remember slow and steady wins the race.

Hybrid Cooker

k.a.m. · Posted: Dec 27 2009 Post subject:

I was able to get some more work done on the fire box and warmer box. I thought having four days off I
would have more time but we have been hopping. Hopefully a little more done tomorrow.
I got both fire box doors mounted and the stiffeners on them,also the bolt latch is mounted.

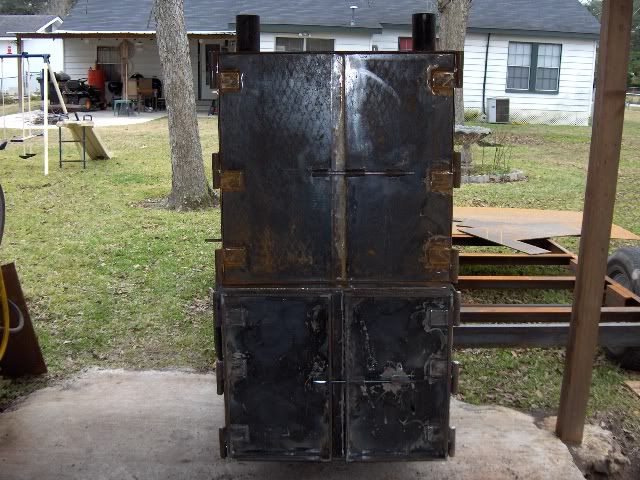

Fire box doors closed.

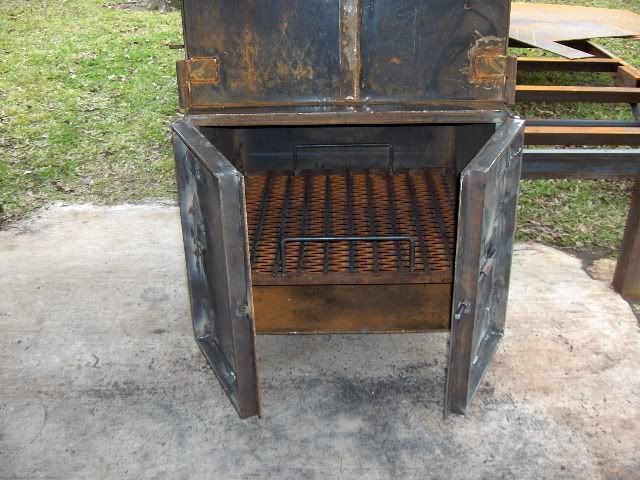

Fire box doors open.

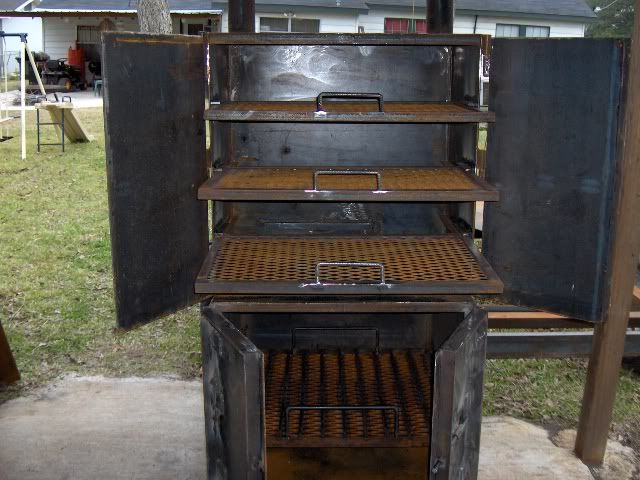

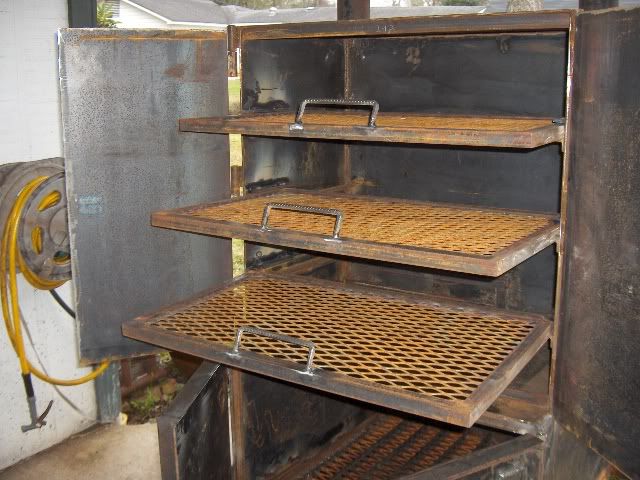

I finished the racks and put handles on them.

I also added stops so the cannot flip.

_________________
Always remember slow and steady wins the race.

Hybrid Cooker

Smokin Mike · Posted: Dec 27 2009 Post subject:

I sure am enjoying watching the progress on your build. Hey quick question... what gauge mesh are you using on your racks?

k.a.m. · Posted: Dec 27 2009 Post subject:

Thank You Smokin Mike, Very Happy

I am using #9 x 3/4'' flat expanded metal.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker

cody · Posted: Dec 27 2009 Post subject:

k.a.m. that is looking really good i want mine now lol

Wreckless · Posted: Dec 27 2009 Post subject:

That looks awesome KAM. I am sure now that I have seen yours that mine is going to need a warmer. 2 questions....why the handles up on the warmer racks? And even with the top and bottom guides, isn't that bottom rack about to fall out?

k.a.m. · Posted: Dec 27 2009 Post subject:

Thank you cody, Very Happy

I am working as fast as I can. Laughing

Thank You Wreckless, The handles are up on the warmer racks because if they were down the would interfere with food on the rack below them when you pull that rack out. I am not sure about question two, I pulled the lower rack out to full extension to show that they will not fall out because of the stops on top of the racks. I need more info on what you are seeing.
_________________
Always remember slow and steady wins the race.

Hybrid Cooker

day_trippr · Posted: Dec 27 2009 Post subject:

cody · Posted: Dec 27 2009 Post subject:

[quote="k.a.m."]Thank you cody, Very Happy

I am working as fast as I can. Laughing

i know u are k.a.m its just to cold for me to work on mine right now Embarassed

k.a.m. · Posted: Dec 27 2009 Post subject:

Thank you day_trippr, Very Happy

That is probably what he is seeing. Thank You for the kind words, I am keeping a pretty good log on this build. I am building in cooker areas that I have never crossed into before, and so I am trying to do as much learning and research as I can before I add something. It is a much slower build than I am accustomed to that is for sure

cody, break out the Carhartts and burn some rods Brother, you will be warm before you know it. Very Happy
