Project Brinkman SnP Update w/phase 2 mods

kgough · Joined: 30 Apr 2008 Posts: 14 Location: Wellsville, NY

I just did a quick web search to see how much the base unit costs.
Amazon stopped selling them, and I could not find them listed on the Brinkmann site.
Does anyone know, are they phasing them out?

Ken

JIM23 · BBQ Fan Joined: 01 Aug 2008 Posts: 193

I'm definitely going to try this mod, but I'm also thinking of adding another addition inside the firebox. I'm not sure if it will work, but I currently have a gentleman that can cut the material for me. So I figured I would use him while I can. He's pretty darn good at what he does. I will post pics if it works. Thanks for the inspiration alien!

Zelix · Newbie Joined: 29 Apr 2008 Posts: 47

Thanks for this thread! I have one of these. I always have a fire of about 400 degrees humming. It's always been a shuffling job trying to keep the meat from burning near the fire box....

I'll have to work on this mods and I'm going to make a sliding out grill tray as well.

I was going to build a new smoker.... but I think I'll practice on this existing one first... If I can get this tweeked out then I can upgrade to bigger and better. Wink

Thanks again.

Kenny G · Joined: 12 Dec 2008 Posts: 3

Virginia Q · Posted: Dec 16 2008 Post subject:

Awesome mods and great thread about the SnPs and other similar small inexpensive cookers. I took a slightly different approach to my SnPs that, though somewhat more expensive, produces a great cooker. I simply bought two, made the basic mods, reversed the hinged lid on one, and mounted a lang 84 to them Twisted Evil

http://i375.photobucket.com/albums/oo198/dsglfnpool/smoker.jpg

Of course Alien's mods are cooler, more cost effective and educational.
_________________
Virginia Q
"The Best of the Wests"
Lang 84 with dual smoke-n-pits mounted.
Killer cabinet smoker.

jansboy · Newbie Joined: 17 Oct 2008 Posts: 31

On my Pro I moved the stack to the other end, the temp is pretty even from end to end. I used a single plate with a 90 degree bend on the end and bolted it in with the three bolt already in the cooked to hold it in place. It works a lot better than it did before.

dinger · Newbie Joined: 13 Jan 2009 Posts: 89

Hey crowd i have been reading and looking at all of your pics and ideas. Now i have a few Questions From my fire box [17x17x18] a 14 x3 opening how far from the bottom of the cooking chamber { 20 dia x 44 } do i cut my hole. A plate on a 45 degree angle down to tuning plates. So at what height from bottom of chamber do i run my plates and secondly where or at what height do i put bottom grill [at 10 inch half of the diameter?.} And lastly fo i put my exhaust pipe off of the end of the smoker and at what height or do i put it inside of the cooking chamber off of the back. Just asking before i start build.
Thanks Dinger

azkitch · Newbie Joined: 11 Sep 2008 Posts: 47 Location: Phoenix

Does 8 pages of responses qualify this for a sticky? It gets hard to find, then people don't post to it, then it gets hard to find then people don't....
kitch
PS I still love this thread, Alien. I just got some old drawer bottoms for work that are 12" wide. Great tuning plates, very little modifications.
dk

Wilburrrr · Joined: 24 Jul 2009 Posts: 16

On the angled piece of the baffle (not the heat sink), have you reduced the size of the fire box opening at all? I have a baffle template made. but the top flange that bolts to to cooker body extends down over the top of the orginal fire box opening by about an inch. Will it be problematic? Thanks!

solaryellow · Posted: Aug 13 2009 Post subject:

I have a couple 4' x 4' sheets of aluminum in the garage. Would those work for creating the baffle and tuning plates for my SNP?

Thanks for all the info Alien. I have a busy weekend planned now. Smile

azkitch · Newbie Joined: 11 Sep 2008 Posts: 47 Location: Phoenix

Still referring to this thread. And I'm still directing people here for general info on tuning plates. Great piece, Alien. Smile

_________________
I know that you believe you understand what you think I said, but I'm not sure you realize that what you heard is not what I meant.

smokinspeedshop · Posted: Dec 31 2009 Post subject:

WOW- this is a GREAT thread! Shocked

I found a SNP pro under the christmas tree this year (no more 12.00 bbq pro water smoker for me!), assembled, cured, cooled, and tossed a fat turkey and a ham on the same day. (they both turned out excellent!) Even being an amateur who knows zilch about an offset, I spotted a potential temp. variation issue before it was even fired up......and sure enough it was a major one! Cant wait to try the mods (mainly the lower baffle)!!!! I plan to raise the firebox grate to get better airflow to the coals as well, and add a couple grate-level thermometers.
I can see this turning into an addiction rather than a hobby, in a hurry.
Thanks Alien AND the rest of you all for some killer help!

P.S.- I also found that sealing the firebox ash removal door INSTANTLY made it a LOT easier to get control of the heat!!!!
_________________
brinkmann firebox babysitter, treating the wood like its part of the meal!

polock · Posted: Feb 01 2010 Post subject:

looks good, posting so i can find this post easier
_________________
bullpin double barrel smoker
brinkman snp
cabelas large gas smoker
weber genesis E-320
Weber Performer
Smokey joe
2 UDS's (love em)

bama6977 · Posted: May 10 2010 Post subject:

Just got one of these, Brinkman Smoker, from neighbor...FREE...so I'm going to "bump" this thread back open to keep up with updates...consider it project
_________________
"Roll Tide Roll"

PhilipWicker · Posted: May 10 2010 Post subject:

This thread changed my life. This my birnkmann SnP mod/restore project:

http://www.thesmokering.com/forum/viewtopic.php?t=38564

I too, had one given to me, but it was in BAD shape when I got it.

bama6977 · Posted: Sep 11 2010 Post subject:

This is classic thread and needs to stay alive. Answers so many questions and am using it on my project
_________________
"Roll Tide Roll"

AlphaTwin · Joined: 10 May 2011 Posts: 7

This is a great thread. This is almost exactly what I was thinking of doing to mine.

The only difference is I was going to move the stack to the other end of the cooker and actually put a solid plate across the bottom leaving the far right end open, so the smoke/heat has to travel across the bottom of the grill then come back across the top and exit out the lowered stack on the same end as the fire box.

I was thinking this would make for very even temps and even smoke distribution and would eliminate the hot spot next to the firebox.

Maybe I don't need to move the stack? Too much?

Thanks
Eric
_________________
Vegetables aren't food, Vegetables are what food eats.

karen936 · Joined: 18 Nov 2007 Posts: 13

Any mods for this unit, I'm having a heck of a time getting the temp up on this unit using a baffel. Have temp gauges on each end at grate hight. Have extended smoke stack down.Have made charcoal basket and have it raised up on fire bricks to allow more air flow But when I baffel I can't get the temp above 150. Any ideas? Heres the opening
http://www.brinkmann.net/products/outdoor_cooking/charcoal_smokers_and_grills/details.aspx?item=810-3044-S[/img]

Alien BBQ · Posted: Dec 31 2011 Post subject:

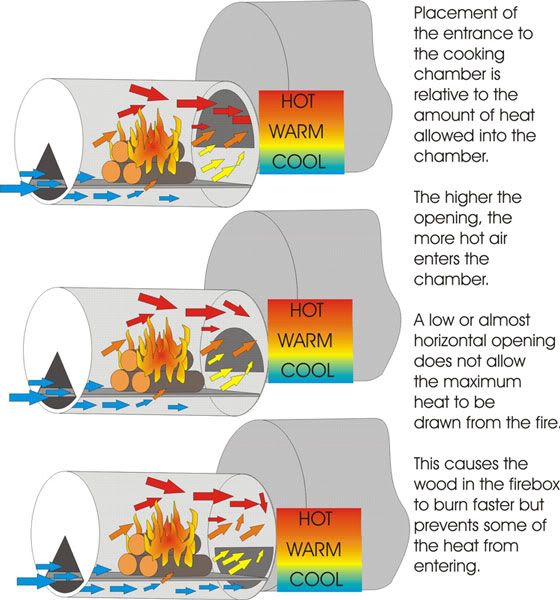

This may help...

The same thing happens when you raise the bottom grate too high. Try and stay away from a straight horizontal pull.

_________________
https://www.linkedin.com/in/michaeloberry

karen936 · Joined: 18 Nov 2007 Posts: 13

I have lowered it and I think I need to cut back on the coals in the basket as I had it full to the top and level with the opening. Thanks
