One of a kind pit design change with pics


Post new topic   Reply to topic    The Smoke Ring Forum Index -> Cookers
View previous topic :: View next topic
Author Message
bigpayne
Newbie


Joined: 13 Feb 2008
Posts: 70
Location: Hartford Ky

PostPosted: Feb 29 2008    Post subject: One of a kind pit design change with pics Reply with quote

I decided to not go with the DP design for several reasons but I did get started on my smoker this week and here is where I am now.

Here is a couple pics with the door closed
[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0030.jpg?t=1204249427[/img]

[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0031.jpg?t=1204249613[/img]

Door open
[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0033.jpg?t=1204249695[/img]

Door open with pipe inside
[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0032.jpg?t=1204249772[/img]

Son welding on trailer frame
[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0034.jpg?t=1204249834[/img]

And here are some pics of the smoker that I'm copying
[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0035.jpg?t=1204249947[/img]

[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0036.jpg?t=1204249994[/img]

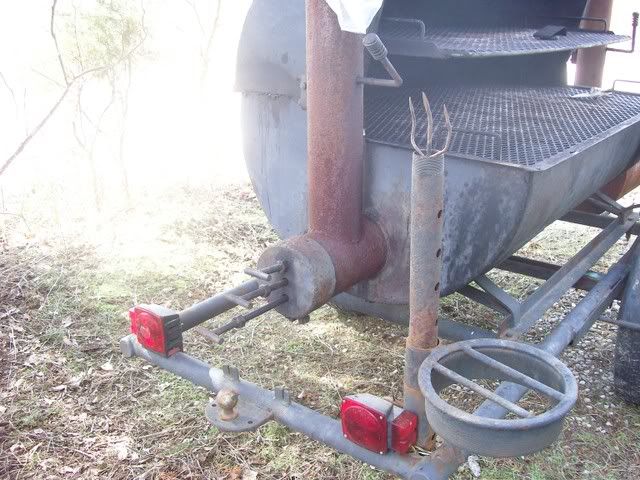

These are the controls to put the heat where you want it in the cook chamber
[img]http://i174.photobucket.com/albums/w95/bigpayne1/000_0037.jpg?t=1204250039[/img]

Hope these pics work.
_________________
Don't try this at home because I am a trained profesional.
Back to top
View user's profile Send private message
bigpayne
Newbie


Joined: 13 Feb 2008
Posts: 70
Location: Hartford Ky

PostPosted: Feb 29 2008    Post subject: Reply with quote

I will try it again

Couple pics with door closed




Door open


Door open with pipe inside


Son welding on trailer frame


Some pics of the smoker that I'm copying





_________________
Don't try this at home because I am a trained profesional.
Back to top
View user's profile Send private message
mrcustomsteel
BBQ Super Pro


Joined: 01 Mar 2005
Posts: 1997
Location: Bilings, still a Texan, MT

PostPosted: Mar 01 2008    Post subject: Reply with quote

Interesting.

What are the three handles at the end of the pipe in the bottom pic? How about the box on the front with the pipe to the firebox?
_________________
D. Tillery
Texan transplanted in Billings, MT
www.mrcustomsteel.com
Back to top
View user's profile Send private message Visit poster's website
Bushbow
BBQ Fan


Joined: 12 Sep 2007
Posts: 110
Location: Fowlerville, MI

PostPosted: Mar 01 2008    Post subject: Reply with quote

Must be pretty calm out to be weldind outside. Cool Cooker - do those handles on the bottom of the exhaust control the heat and smoke inside the cooker?

Bob Urban
Back to top
View user's profile Send private message
bigpayne
Newbie


Joined: 13 Feb 2008
Posts: 70
Location: Hartford Ky

PostPosted: Mar 01 2008    Post subject: Reply with quote

mrcustomsteel, like Bushbow asked the three handles do control the heat-smoke The pipe has three slots, well rather more like holes in the bottom which are around 3" wide by 7" long and those handles run to shoes on the inside that cover those holes so you can open or close or ajust them to your liking.

The box in the front and the pipe is where the fan is but mine will be a little different.
_________________
Don't try this at home because I am a trained profesional.
Back to top
View user's profile Send private message
T00lman
BBQ Super Pro


Joined: 21 Dec 2007
Posts: 2476
Location: warren michigan

PostPosted: Mar 01 2008    Post subject: Reply with quote

hey were,s the snow this is winter ya know.

get with the seasons man welding outside in feb that,sjust wrong



p.s nice looking smoker
_________________
1 bad azz d.o table
weber 22 1/2 x 2
some of its magic some of its tragic
#37 liar
1 wsm 18 1/2
1wsm 22 1/2
Back to top
View user's profile Send private message
bigpayne
Newbie


Joined: 13 Feb 2008
Posts: 70
Location: Hartford Ky

PostPosted: Mar 01 2008    Post subject: Reply with quote

Thanks john ziske.

It just snowed the day before. It was in the lower 40's the day he was welding and up in the 50's today and 60's tomorow.

We always say if you don't like the weather here in Kentucky just stick around a day or two and it will change.
_________________
Don't try this at home because I am a trained profesional.
Back to top
View user's profile Send private message
bigpayne
Newbie


Joined: 13 Feb 2008
Posts: 70
Location: Hartford Ky

PostPosted: Mar 06 2008    Post subject: Reply with quote

Well I've got the pit up on the trailer and mounted. I also went and picked up a firebox today that is a 22+30+1/4 in thick stainless and plan getting it on this coming saturday.

The guy I got the firebox from has some grate material that he will give me if I want it. The stuff is also stainless and would be used for the cook surface but it is not like expanded metal it is more like cat walk that has openings about 1/8 to 3/16 wide by 1"1\2 long and not as heavy as cat walk. What do you guys think, are the gaps to narrow?

THANKS again
_________________
Don't try this at home because I am a trained profesional.
Back to top
View user's profile Send private message
