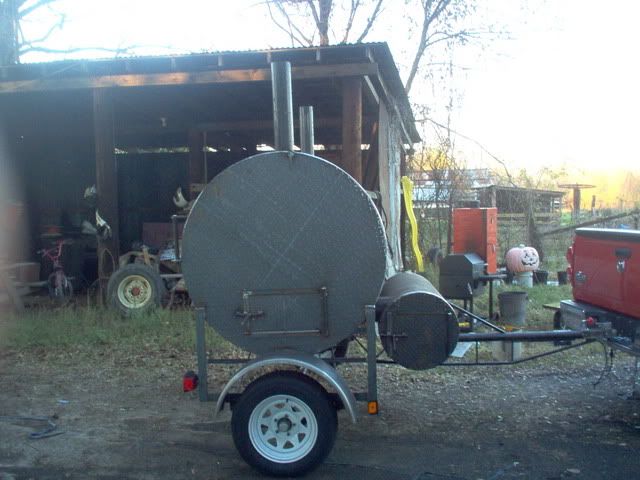

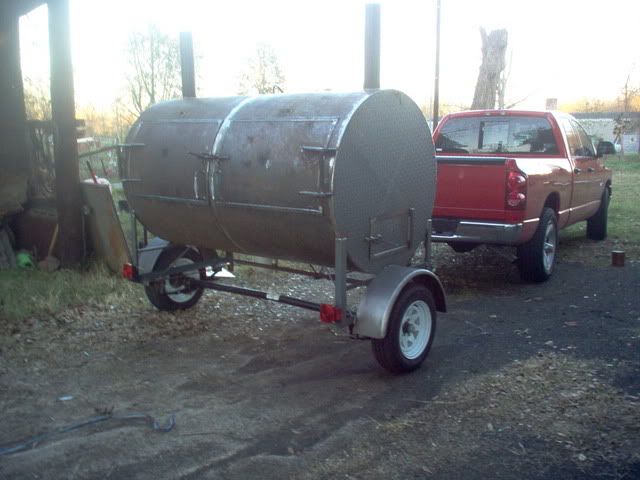

Pics of new Pit

jaimereb · Posted: Dec 18 2007 Post subject: Pics of new Pit

Still have the guts to put in it.

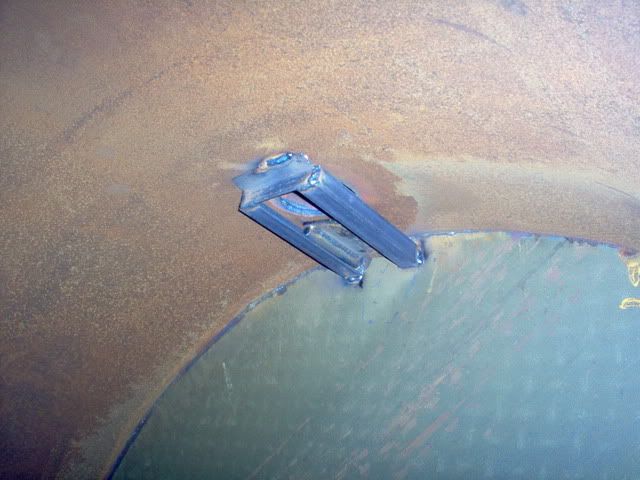

This is the dampers design

BBQMAN · Posted: Dec 18 2007 Post subject:

Wow, that's a big un'!!!!!!

How come no paint? I would imagine you intend to weld on it, and then paint later when you are done?

Keep us posted on the final build, that looks like a great project. Very Happy

_________________
BBQMAN
"I Turned A Hobby Into A Business".
Providing "IMHO" Since 2005.

Travis_Creek · Posted: Dec 18 2007 Post subject:

James, I'm glad you made it home safe.

That was definetly an interesting build. If you need any help, give me a call.
_________________
SMOKERS THAT WORK!!!
214-471-4690

jaimereb · Posted: Dec 18 2007 Post subject:

I do have to put my rotisserie and burners in it. Then I am going to paint it.

Mike Lawry · Posted: Dec 18 2007 Post subject:

Thats one big muther&^%$#.

Cool.

I wanna see that sucker finished + smokin next.

Mike Lawry.

mutha chicken bbq · Posted: Dec 18 2007 Post subject:

Sweet, Looks nice

Question for ya-

How did you lay out the hinges on that one? Is it just get the hinges Plum? And they will swing away with no probs? or is there a secret there?
_________________
The only thing consistant in BBQ is, it is always the Judges fault!

KCBS CBJ
www.galvinell.com
www.realdealbbq.com

http://www.youtube.com/watch?v=lUcTvhyof8I&feature=related

jaimereb · Posted: Dec 18 2007 Post subject:

That will be between you And travis. He took it from a pic. I sent him. This is travis # 325-203-0028

Hasty-Brad · BBQ Fan Joined: 02 May 2006 Posts: 261

Bryce Crane · Posted: Dec 18 2007 Post subject:

I see the snouts are alot narrower than his other designs...

Very nice. Want to see more!
_________________
www.fattyshackbbq.com
Stump's GF 222P
3 Weber Kettles
Klose Offset
2 labradors

stillsmokin · Posted: Dec 18 2007 Post subject:

That is a BIG'UN......nice lookin smoker and please keep us posted!
_________________
When in doubt give it more COWBELL!!!!

JamesB · Posted: Dec 18 2007 Post subject:

Yeppers, that is indeed a monster! Is it going to be a spinner, err I mean a rotiss unit?

James.
_________________

Brinnie · Posted: Dec 18 2007 Post subject:

You would fit a Damm Big Kangaroo in That One Jaimereb Laughing

LoL.
_________________

Cheers
Smoking
Down Under

necron 99 · Posted: Dec 28 2007 Post subject:

MAN - you oughta start raising bison on your land James - you've got the cooker to make it worthwhile now Shocked

_________________
Let's hope SoEzzy can ditch his heavy hand on photos in 2016!

Smoke Daddy · BBQ Fan Joined: 29 May 2007 Posts: 265 Location: NorCal

Wow that is big Shocked

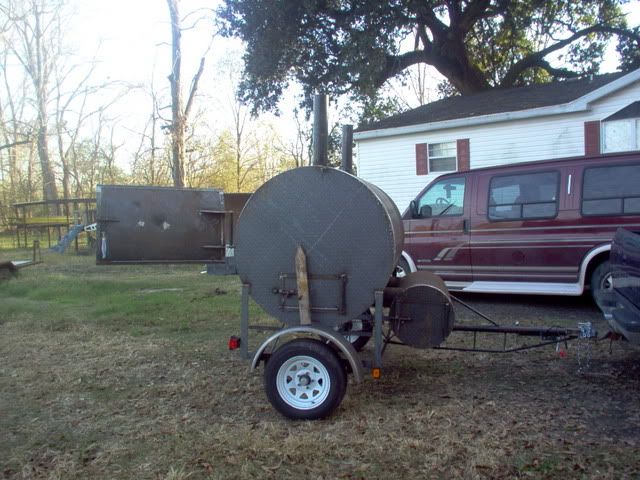

Pretty impressive project there. I have to say, I like the way it is configured on that trailer. It looks very accessible. Great design. Hope to see pics of the first smoke.
_________________
Low and slow that is the tempo!

Homemade horizontal offset
Kingsford kettle
professional warming oven converted to bradley biscuit burner (current project)

mrcustomsteel · Posted: Dec 28 2007 Post subject:

jaimreb, that's great. Can you show us the design and diminsions of the rotisserie relative to the diameter of the cooker. I figure there are some guidelines on shelf size, support arm length, gears, RPMs, terminology, etc. Thanks.
_________________
D. Tillery
Texan transplanted in Billings, MT
www.mrcustomsteel.com

jen37 · Posted: Dec 28 2007 Post subject:

Now that's a smoker! I'm guessing the welds alone probably weigh as much as my entire smoker. Cool

jaimereb · Posted: Dec 29 2007 Post subject:

Thanks all. I am trying to get some prices on putting my rotisserie put in but with Xmas & new years every one is tide up right now. may be in cup. weeks things will slow down.I would like to have it yestreday Laughing

. But I guess I will have to wait. Crying or Very sad

Will keep trying. Thanks James

gordo · Posted: Dec 29 2007 Post subject:

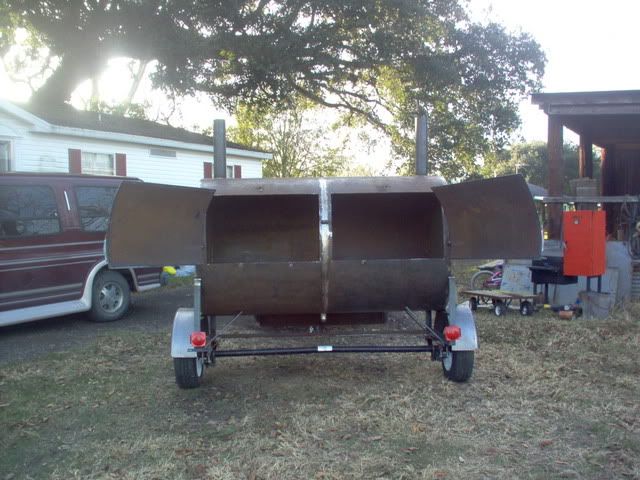

I really like the way you mounted the doors on it...no need for
any counter weights....
Nice looking rig..!
I couldn't afford to fill it with meat... Sad

_________________
Smokers Inc.
Bates Custom Pit

Rub N Smoke · Posted: Dec 31 2007 Post subject:

Good Job!!! Dont forget the finished pictures!!! Twisted Evil

_________________
Cookin' Wit' A Little Spit Aint Yo' MaMas Barbecue!!
My Toys Are:
Trailered Competition Pit
4320/ Tejas Cooker
My 7 year old Daughters E-Z Bake Oven (only in Emergencies)
Check out: www.myspace.com/cookinwitalittlespit

jaimereb · Posted: Dec 31 2007 Post subject:

The trays will be 3ft.3" long x 12" wide. It will have 8 trays 4 on each side. The shaft will be 1 1/2 solid rod. Will have bearrings on each end. Will have 3 plates inside 34" to 32 "dim. One on each end and one in the middle to hang trays on I am hopeing to gear it down to 1RPM. Someone asked me why not put 6ft.trays. For one thing I can handle one tray my self so I can take it out to clean and I can cook different foods without cross over.If I need to only cook on one side I can. Any ideas will be greatly appreciated. Thanks James
