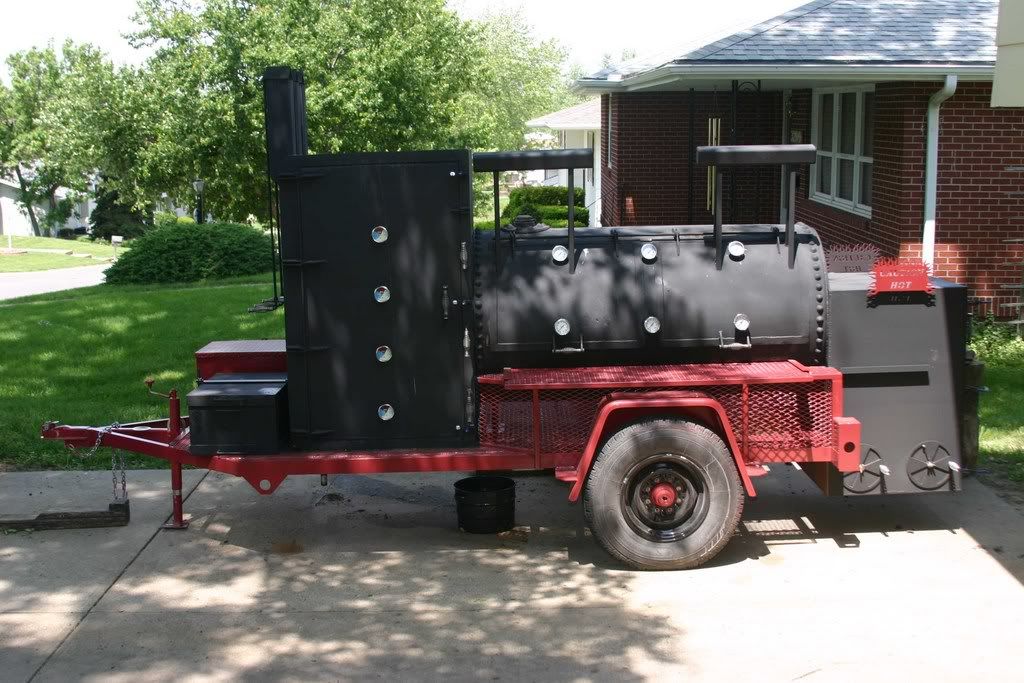

Pit Finally Completed - Few More Photos Added

[smok_n_okie]

hot dang that is one goodlooking rig...
_________________
Curtis Allen

Success isn't permanent, and failure isn't fatal.
Mike Ditka

EQUIPTMENT:
ECB-- El Chepo Brinkmans smoke and grill
Homemade Smoker in the process of Design

[saintjoemo]

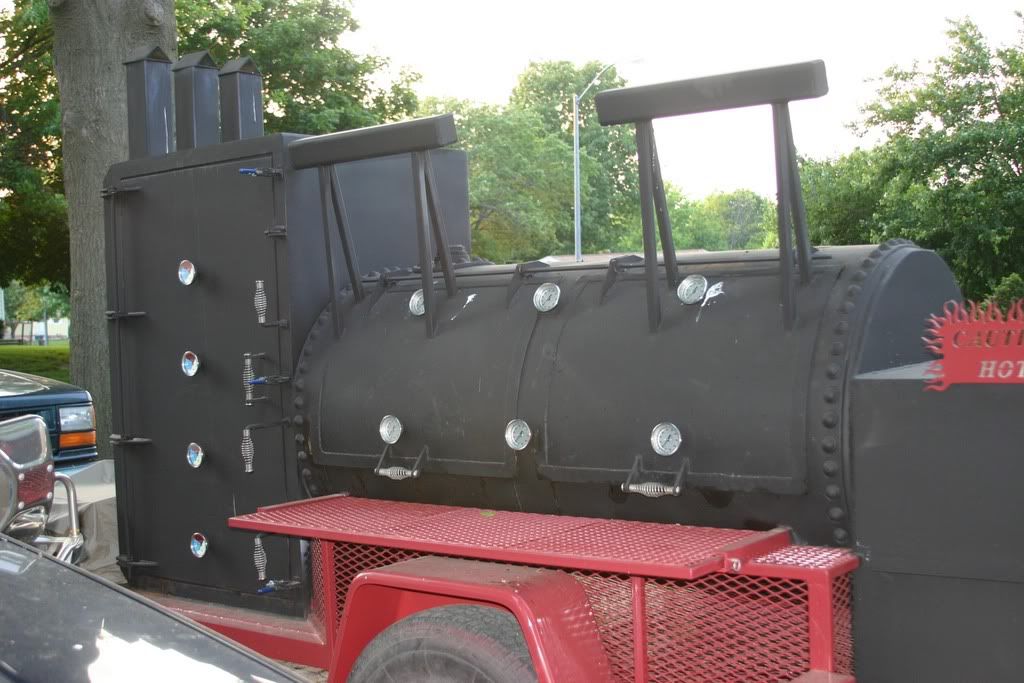

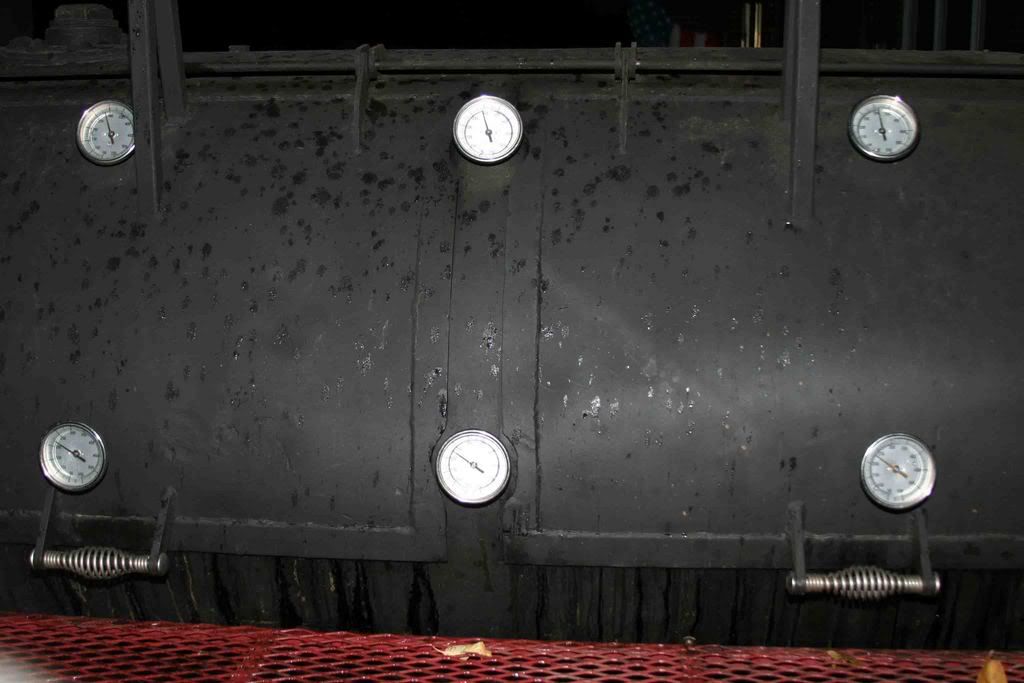

Gauges at a 75 degree temp variance.

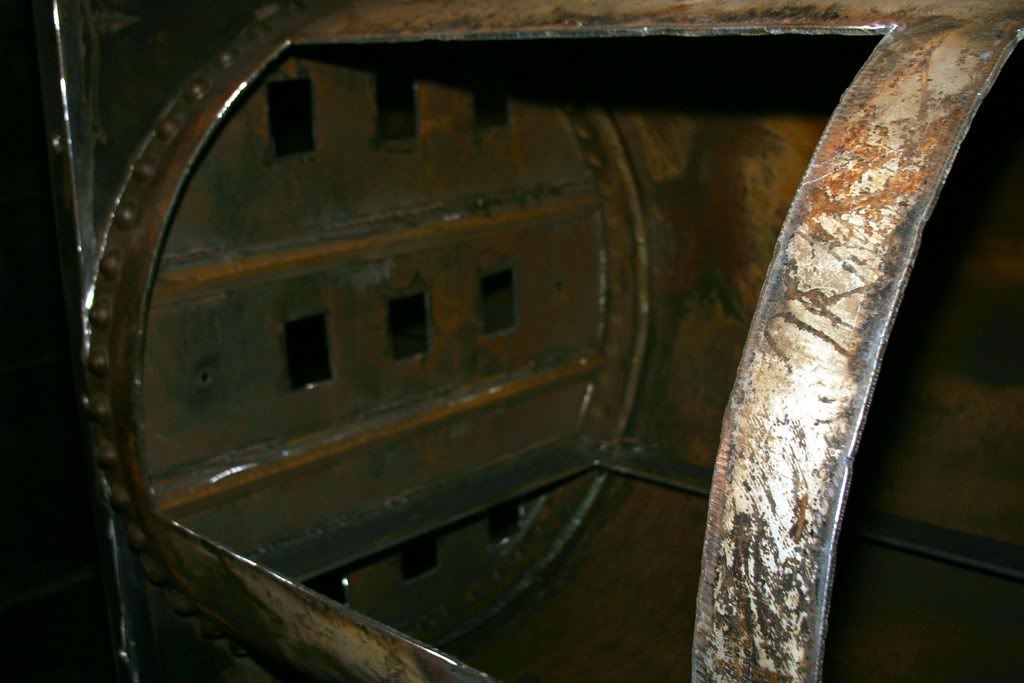

Cutouts from the horizontal tank to the vertical.


View of the cutouts from the upright side. Note the braces.

[broncosmoker]

Hey thanks for the pics, I appreciate it. Are those holes about 3x4? Any shots of the firebox into the horizontal?

Again Thank You

Scott

[mrcustomsteel]

That's nice work. How are you dampering those square holes? I can see the handles on earlier pics but I can't figure it out.
_________________
D. Tillery
Texan transplanted in Billings, MT
www.mrcustomsteel.com

[saintjoemo]

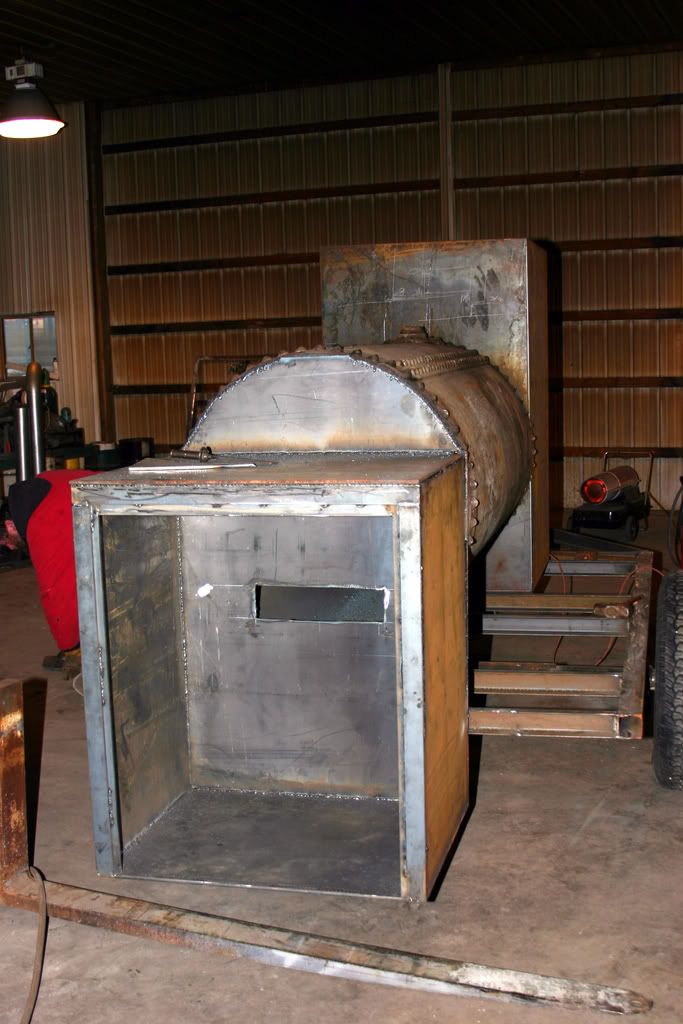

A pic of the firebox before the rest of the insides were added, showing the opening to the horizontal tank.



The firebox with the shelf added. We can grill a steak, or cover it over, and bake in it, or any combination of the two.

[saintjoemo]

[mrcustomsteel]

Thanks for the info. It just doesn't get much better than that.
_________________
D. Tillery
Texan transplanted in Billings, MT
www.mrcustomsteel.com

[saintjoemo]

It's for sale if anyone is interested.........

[Roosters]

For sale..........?? Let's see..........2nd mortage............divorce.........If I hit the lottery

[PapaQ]

That is a work of ART!! Nice Job!

[Big Dog BBQ]

You stated in your post that you and your father had researched for 6 months prior to building the unit and then spent 2 months actually building on weekends.

Hats off to you both. It definitely shows that proper planning pays off in the end. Not only was the overall build time reduced substantially by your research, but the fact that you it appears you were able to accomplish this building this rig with very little rework and testing along with the fact that your finished product shows exhibits a fabulous finished cooker in not only appearance but performance too.

Would you mind sharing some of "What" was researched and "How" you derived at the figures you used during your production. Not sure what type of research you did during those 6 months, so any insight would be greatly appreciated.

Some of the figures that I am curious of are:

Vertical box size (understanding that you started with a set size of pipe)
Firebox opening area to main chamber
Chimney size
Chimney length
Chimney placement
intake area
tuning plate design
tuning process
horizontal offset to vertical openings, (number & placement)

And anything else you would be willing to share in regards to research done before the build.

I am currently attempting a build on my own and would like to eliminate time and waste through initial planning so any thoughts would be greatly appreciated.

Thanks and Congratulations on the outstanding rig you and your dad built. It really is a masterpiece!!
_________________
Doug

"Causing Nightmares for Vegetarians Since 2K"

[havasteve]

That is the nicest smoker I've seen. Nice work.
_________________
My Patio Cooking Area Website http://www.arizonapitandgrill.com/

[Tom C]

I'm in awe of the build quality! She looks like she's as solid as an army tank! Wonderful job!

[XTexan]

VERY NICE, GREAT JOB!!!!!!!

[Canadian Bacon]

That is an awesome pit,more steel than a locomotive
_________________
Horizon Offset (Marshall RD Special)
30 " Electric Masterbuilt(Digital)
Large BGE
Napoleon Legend Gasser
20"& 26" Discada
Two of the fastest Thermapens ever made ... Black& Blue
LIAR #25

[saintjoemo]

[quote="dlukas"]You stated in your post that you and your father had researched for 6 months prior to building the unit and then spent 2 months actually building on weekends.
We first looked at the different designs available, obviously. My son told me what he wanted a pit to do, temperature range, smoke evacuation, warming, direct flow vs. reverse flow, etc.. Then I figured what I wanted the pit to do, cook a steak ( or biscuits), have shelves that keep us from falling into the pit, have a work space that can accommodate normal cooking, and handle removed shelves, easy clean out, etc. I drew up three rectangles of the proportions for the firebox, tank and vertical, then played with the formulae in another posting, until I was satisfied that everything would fit and still work. Just make sure you overkill all of the openings where you can. It's easier to close a damper than blow on a fire.

[saintjoemo]

[quote="dlukas"]
tuning plate design
tuning process

Tuning plates were made by welding rails across the length of the pit. I used 1/4 x 10 plates cut to fit over the rails side by side. The final plate is a 1/4 x 4 plate. When all are in place, (don't forget to number them) they form a chamber that moves all the heat into the vertical chamber. This allows balancing between the vertical and horizontal. To tune the horizontal, simply pull one of the plates to overlap another, and open gaps between them. WARNING! when you do this, there will be a hot spot if they are opened very far. Be careful not to place meat directly over a large opening. My openings work well on the end close to the firebox and in the middle between shelves.

[JoeD]

Nice rig

I like your chrome handles, where did you get'em from?

Thanks

[saintjoemo]

[karlsson]

Incredible

Now, do you ship overseas?
