Done with the piano hinge.

Refining the drawings for the firebox. Current design is a top loading firebox.
I was thinking it would be hard to load from the side since it's so low and I always use the top door on my O.K. Joe.

Specs:
22" square Firebox 10,648 S.I. (Feldons=9,240 S.I.)115%
7" intake 38.5 S.I. (Feldons=32 S.I.)
2-6" FB to Cook Chamber 72.0 S.I. (Feldons=85 S.I.)
Chimney 5.4 S.I. 3-1 1/2" holes


_________________
-Oklahoma Joe Longhorn
-Smokin Tex 1500 CXLD
Back to top
View user's profile Send private message
Deep South
BBQ Fan


Joined: 23 Jun 2010
Posts: 201
Location: Jasper, Alabama

PostPosted: Jan 26 2017    Post subject: Reply with quote

All cleaned up and the rest of the pipes and plugs removed. Going to get my flat bar and and hinges and hopefully rehang my door this weekend.


_________________
-Oklahoma Joe Longhorn
-Smokin Tex 1500 CXLD
Back to top
View user's profile Send private message
Maniac
BBQ Super Pro


Joined: 02 Oct 2010
Posts: 2433
Location: Pa

PostPosted: Jan 26 2017    Post subject: Reply with quote

Deep South Just noticed you FB to CC was smaller than feldons calc. JM2C a little more room here is better than a little less...don't want to choke a good flow.
_________________
RF Smoker
20" disc
uds
Back to top
View user's profile Send private message
Deep South
BBQ Fan


Joined: 23 Jun 2010
Posts: 201
Location: Jasper, Alabama

PostPosted: Feb 03 2017    Post subject: Reply with quote

Agreed. I'm changing to a single rectangular shape to meet Feldon's calculations.
Picked up my flat bar and met my local steel sales people today!
_________________
-Oklahoma Joe Longhorn
-Smokin Tex 1500 CXLD
Back to top
View user's profile Send private message
Deep South
BBQ Fan


Joined: 23 Jun 2010
Posts: 201
Location: Jasper, Alabama

PostPosted: Feb 24 2017    Post subject: Reply with quote

Sorry for the delay. I got sidetracked building a project with my teenage son.


_________________
-Oklahoma Joe Longhorn
-Smokin Tex 1500 CXLD
Back to top
View user's profile Send private message
Deep South
BBQ Fan


Joined: 23 Jun 2010
Posts: 201
Location: Jasper, Alabama

PostPosted: Feb 24 2017    Post subject: Reply with quote

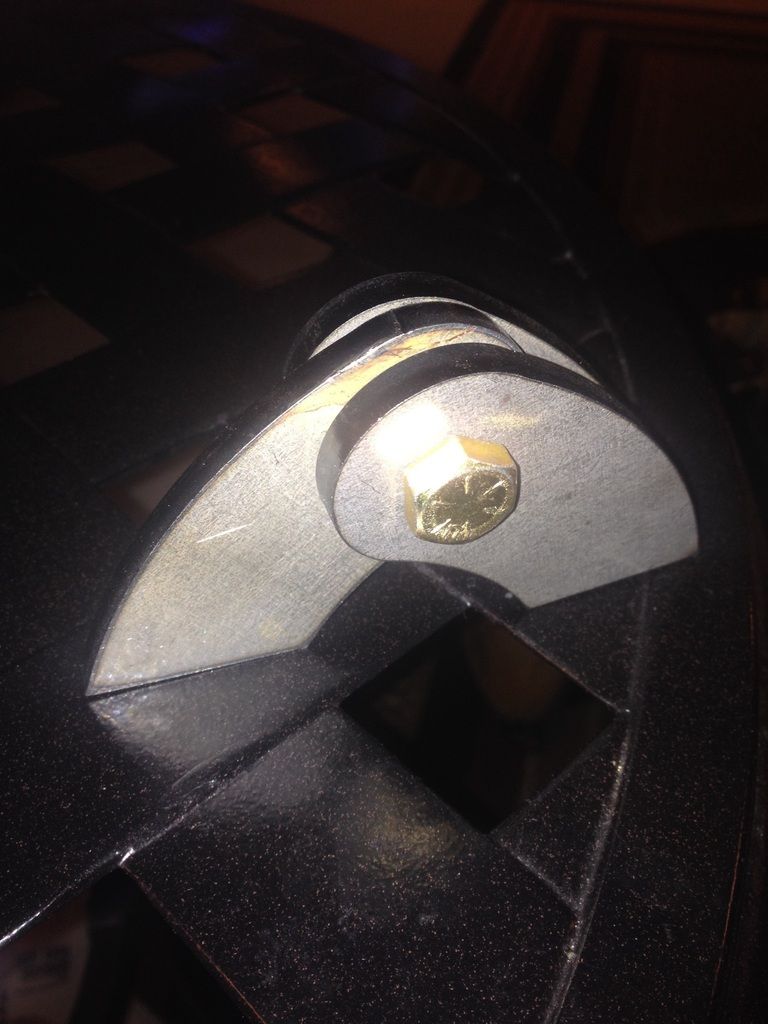

Back on track. I caved and ordered some laser cut hinges.


_________________
-Oklahoma Joe Longhorn
-Smokin Tex 1500 CXLD
Back to top
View user's profile Send private message
Deep South
BBQ Fan


Joined: 23 Jun 2010
Posts: 201
Location: Jasper, Alabama

PostPosted: Oct 14 2021    Post subject: Reply with quote

FYI, 4 years later... I'm still working on this pit. Very Happy
